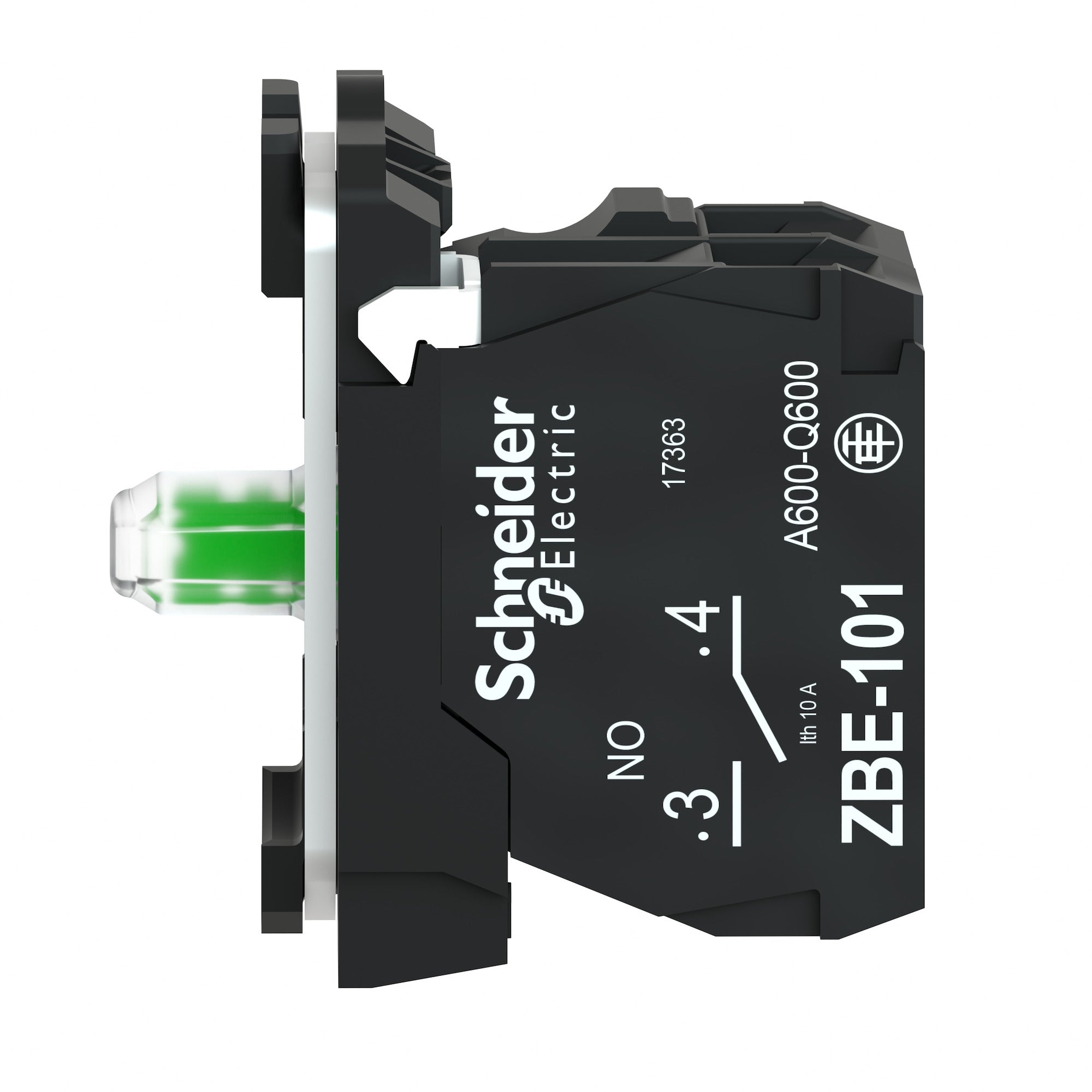

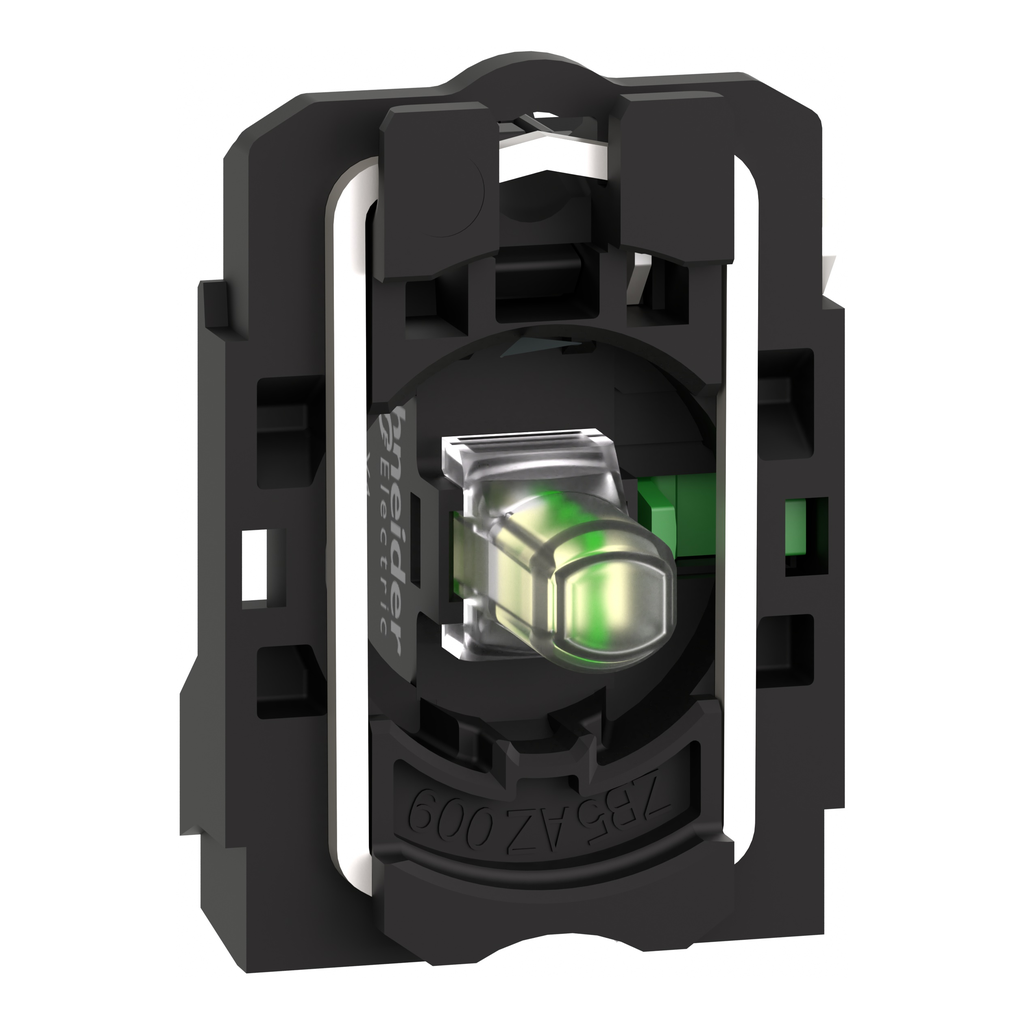

Schneider Electric ZB5AW0B11 Complete Body Contact Assembly and Light Block 24V AC/DC

Product Description

Schneider Electric ZB5AW0B11 is a 22 mm light module compatible with 24 VAC/VDC circuits. This product features a single NO contact and a robust plastic body. It operates with a universal LED and allows for quick installation and replacement on compatible systems. The design supports easy clip assembly and connects via reliable screw-clamp terminals.

• Compatible with Harmony XB5 pilot lights.
• Wide operational temperature range from minus forty degrees Celsius to seventy degrees Celsius.
• IP20 rating protects against contact with live circuits.

Product Highlights

This light module is designed for signaling applications in various environments. It is effective for both new setups and for upgrades in existing machinery.

Product Information

Standard Information

• Brand: Schneider Electric
• Catalog Number: ZB5AW0B11

Technical Specifications

• Type: Complete body/contact assembly and light block
• Operating Temperature: -40 to 70 degrees Celsius
• Body Material: Plastic
• Height: 42 mm
• Width: 30 mm
• Weight: 0.07 lb
• Current: 18 mA
• Voltage: 24 Volt AC/DC 50/60 HZ
• Contact Configuration: 1 NO
