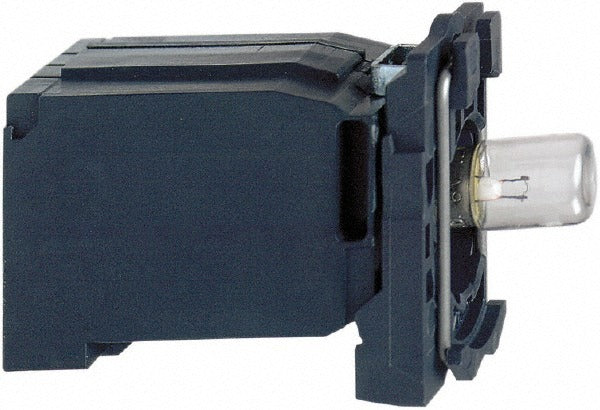

Schneider Electric ZB5AV3 Incandescent Indicating Light

Product Description

The SCHNEIDER ELECTRIC ZB5AV3 is an incandescent indicating light designed for use in industrial control panels and machine operator interfaces. Rated for 110-120 VAC at 50/60 Hz, it uses a screw clamp connector for a secure, tool-assisted termination. The unit measures 3.1 inches in length, 1.7 inches in width, and 1.3 inches in height, and weighs 0.22 pounds. Its vibration-resistant construction makes it suitable for demanding environments where mechanical shock and vibration are common. Licensed electricians and panel builders typically install this component during new panel builds or control system upgrades.

The ZB5AV3 is suited for industrial and commercial control applications where a reliable pilot light is required on operator panels, machinery, or automation equipment. The incandescent lamp type provides straightforward visual indication of circuit status. Its compact form factor fits standard 22 mm cutout pushbutton and indicator mounting configurations commonly found in industrial enclosures. This part is sold individually and is appropriate for retrofit or new installation work in both light-duty and heavy-duty panel environments.

Key Features

• Rated for 110-120 VAC at 50/60 Hz for compatibility with standard North American and international panel voltages
• Screw clamp connector for secure, vibration-resistant wire termination
• Vibration-resistant design meets IEC 60068-2-6 and IEC 60068-2-27 shock and vibration standards
• UL Listed and CSA certified, including CSA C22.2 No. 14 and UL 508
• Meets multiple international standards including EN/IEC 60947-5-1, DNV, GL, RINA, and JIS C 4520
• Compact dimensions allow installation in space-constrained control panel layouts

Compatibility

Designed as an OEM-style indicating light for use in 22 mm industrial control panel cutouts. Consult panel layout documentation and the manufacturer product family data to confirm fitment with specific operator interface assemblies.

Installation Notes

Installation should be performed by a qualified electrician in accordance with NEC requirements and applicable local codes. De-energize and lock out the control panel before installing or replacing the indicating light. Use the screw clamp terminals with an appropriate flat-blade screwdriver, torquing to the panel assembly requirements specified in the enclosure documentation. Do not exceed the rated voltage range during commissioning.
