Schneider Electric ZB5AV07 Round Indicator Light Lens

Product Description

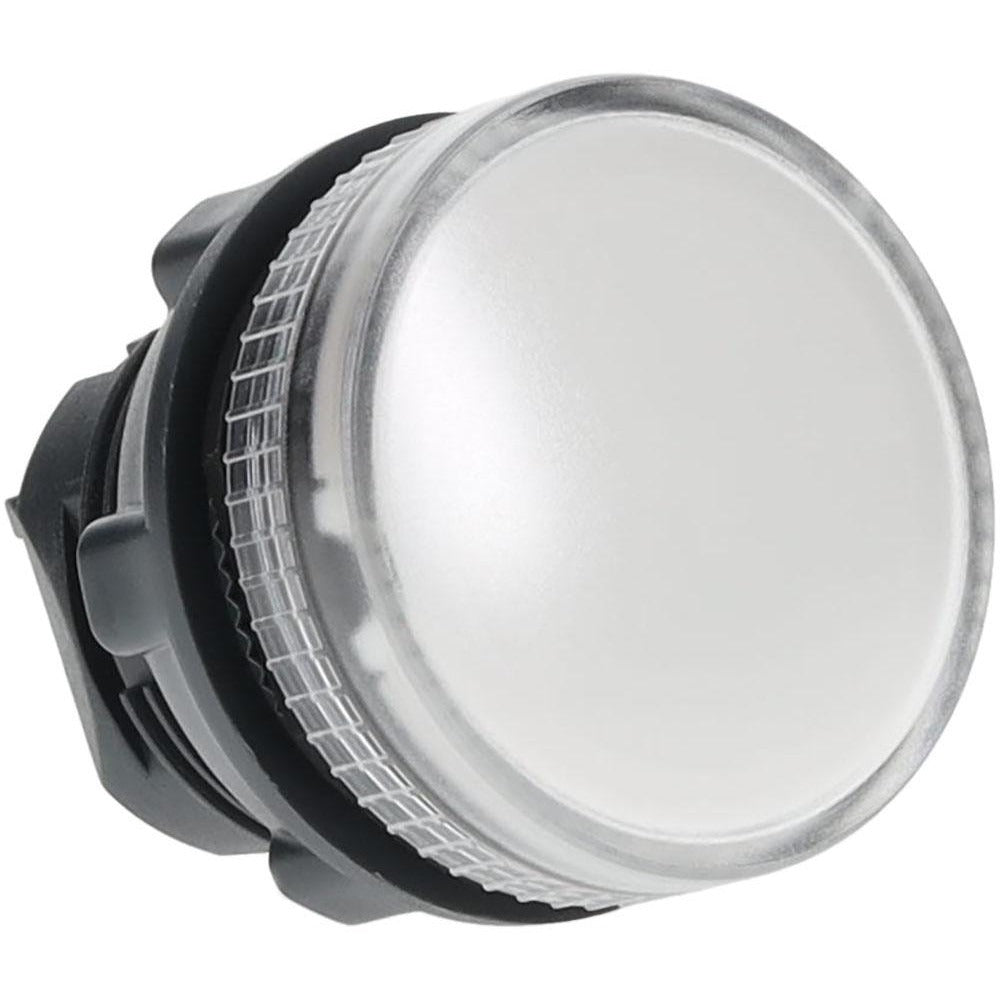

The SCHNEIDER ELECTRIC ZB5AV07 is a round, clear replacement lens designed for pilot and indicator lights using the BA9s lamp base. This small-format lens covers and protects the light source in control panel indicator assemblies, diffusing the output for clear status visibility. It is a direct-fit light accessory intended for use in industrial control enclosures, machine operator interfaces, and panel boards. Electricians and panel builders install this component when replacing a cracked or discolored lens without replacing the full indicator assembly. The ZB5AV07 meets multiple international standards including UL 508, NEMA 4X/13, and CSA C22.2 No. 14, making it suitable for rated enclosure environments.

This lens is used in residential, commercial, and industrial control panel applications wherever BA9s-base pilot lights or indicator lights are installed. Typical scenarios include motor control centers, machine control panels, and HVAC equipment control enclosures that use Schneider Electric ZB5 series indicator light assemblies. It is a replacement or spare part stocked by electricians and panel shops servicing equipment with this indicator light family.

Key Features

• Clear round lens compatible with BA9s lamp base indicator lights
• NEMA 4X/13 rated — suitable for washdown and dust-tight enclosure environments
• Meets UL 508, CSA C22.2 No. 14, EN/IEC 60947-1, EN/IEC 60947-5-1, and JIS C 4520 standards
• Compact 1.2 x 1.2 x 1.2 inch profile fits standard ZB5 series indicator cutouts
• Sold individually — direct OEM-style replacement for field service use

Compatibility

Designed for use with BA9s lamp base pilot and indicator light assemblies. Specific compatibility with Schneider Electric ZB5 series indicator light bodies is indicated by the For Use With attribute in the product specifications.

Installation Notes

Installation is performed by a licensed electrician or qualified panel technician. De-energize the control panel and lock out all power sources before disassembling any indicator light component, in accordance with NFPA 70E electrical safety practices. The lens typically snaps or threads onto the indicator body — do not force or overtighten, as the lens material can crack. Verify the replacement lens is fully seated before restoring power to the panel.
