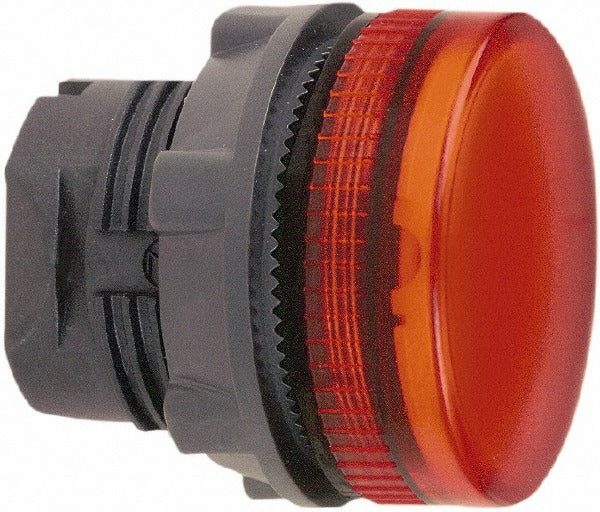

Schneider Electric ZB5AV043S Round Pilot Light Lens Red

Product Description

The SCHNEIDER ELECTRIC ZB5AV043S is a round red replacement lens designed for pilot and indicator light assemblies used in industrial control panels and operator interface stations. This lens fits over the light source to provide a clearly visible color-coded status indication — red signaling alarm, stop, or fault conditions in most panel conventions. Licensed electricians and panel builders install this type of lens as part of routine maintenance or when replacing damaged or discolored components. At 0.1 pounds, it is a lightweight accessory sized at 2 inches in length, 1.5 inches in width, and 1.1 inches in height.

This lens is suited for industrial and commercial applications where push-button stations or pilot light assemblies require a direct replacement lens. Common installation scenarios include motor control centers, machine control panels, and process control operator stations. The red color designation makes it appropriate for fault, emergency stop, or power-on indication circuits depending on the panel's wiring convention. It ships in a package quantity of one.

Key Features

• Red color for fault, stop, or alarm status indication
• Round lens profile for standard pilot and indicator light assemblies
• Compact dimensions: 2 inches long, 1.5 inches wide, 1.1 inches tall
• Lightweight at 0.1 pounds — minimal load on panel door or enclosure
• Sold individually — replace only the lens without changing the full fixture

Compatibility

Designed as an OEM-style replacement lens for Schneider Electric ZB5 series round pilot and indicator light assemblies.

Installation Notes

Installation is typically performed by a licensed electrician following NFPA 70 (NEC) requirements for control panel work. De-energize the panel and verify absence of voltage before removing or installing any lens or light component. Snap-fit or threaded lens installations vary by fixture body — confirm the mounting method on the existing assembly before removal. Do not force the lens into place, as this may crack the lens or damage the light body threads.
