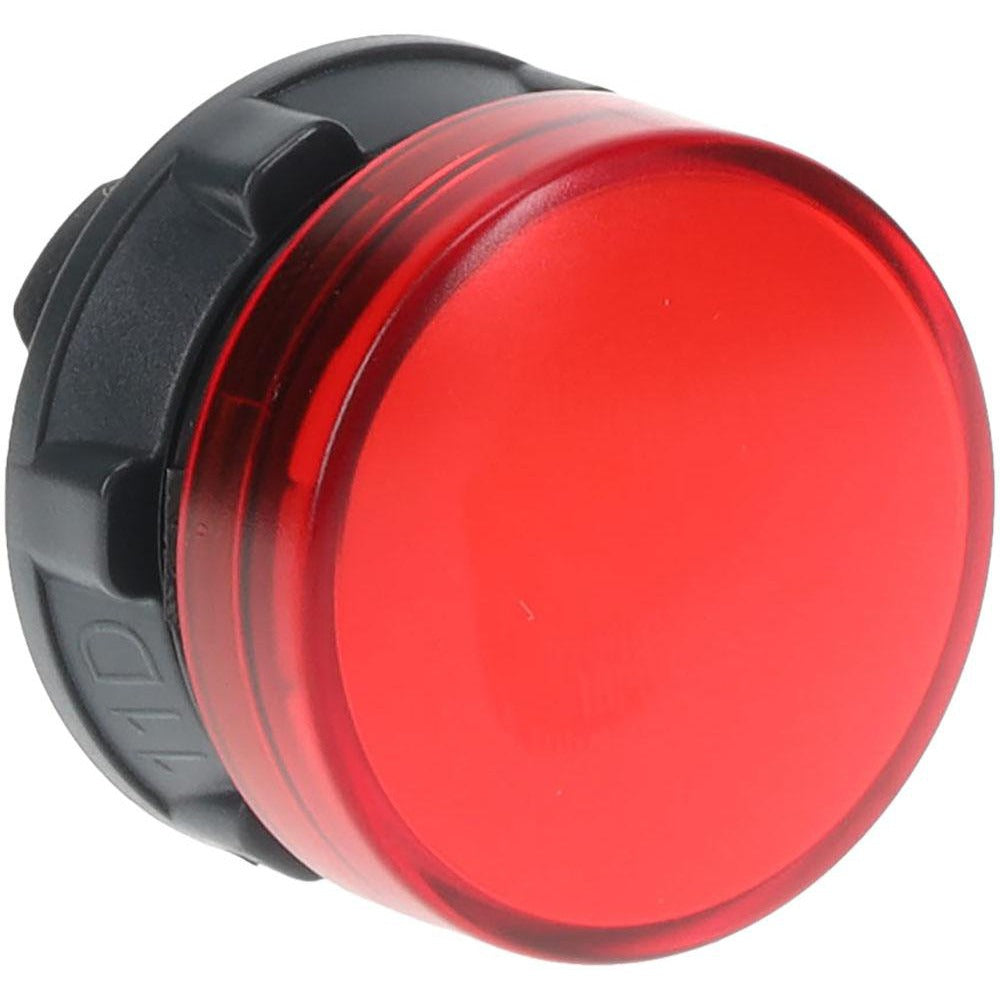

Schneider Electric ZB5AV043 Round Red Indicator Light Lens

Product Description

The SCHNEIDER ELECTRIC ZB5AV043 is a round red replacement lens designed for pilot and indicator light assemblies. It is compatible with integral LED light units and serves as a direct-fit accessory for industrial control panel applications. The lens measures 1.2 inches in height, 1.2 inches in width, and 1.5 inches in length, making it a compact component suited for standard 22mm mounting formats. Electricians and control panel technicians install this lens during routine maintenance or when replacing damaged or discolored lens covers on pushbutton and indicator stations. The red color provides clear visual status indication in demanding industrial environments.

This lens is used in industrial and commercial control panel applications where pilot and indicator lights are mounted in operator interface stations, machine control enclosures, and electrical panels. It is rated for use in NEMA 4X and NEMA 13 environments, making it suitable for locations exposed to dust, oil, and washdown conditions. The ZB5AV043 is appropriate for both light-duty and heavy-duty industrial settings requiring reliable visual signaling components.

Key Features

• Red round lens for clear visual status indication at a glance
• Designed for use with integral LED light units
• NEMA 4X and NEMA 13 rated for dust-tight and oil-tight enclosure applications
• Meets multiple international standards including UL 508, CSA C22.2 No. 14, EN/IEC 60947-5-1, and JIS C 4520
• Compact form factor at 1.2 x 1.2 x 1.5 inches and 0.1 pounds

Compatibility

Designed as a replacement lens accessory for pilot and indicator light assemblies using integral LED light sources. No specific compatible model numbers were provided in the available product data.

Installation Notes

This lens is typically installed by a licensed electrician or qualified control panel technician. Disconnect and lock out power to the control panel before servicing any indicator light assembly. Handle the lens carefully to avoid cracking the housing during installation or removal. Work should comply with applicable NEC requirements for industrial control panel wiring and maintenance.
