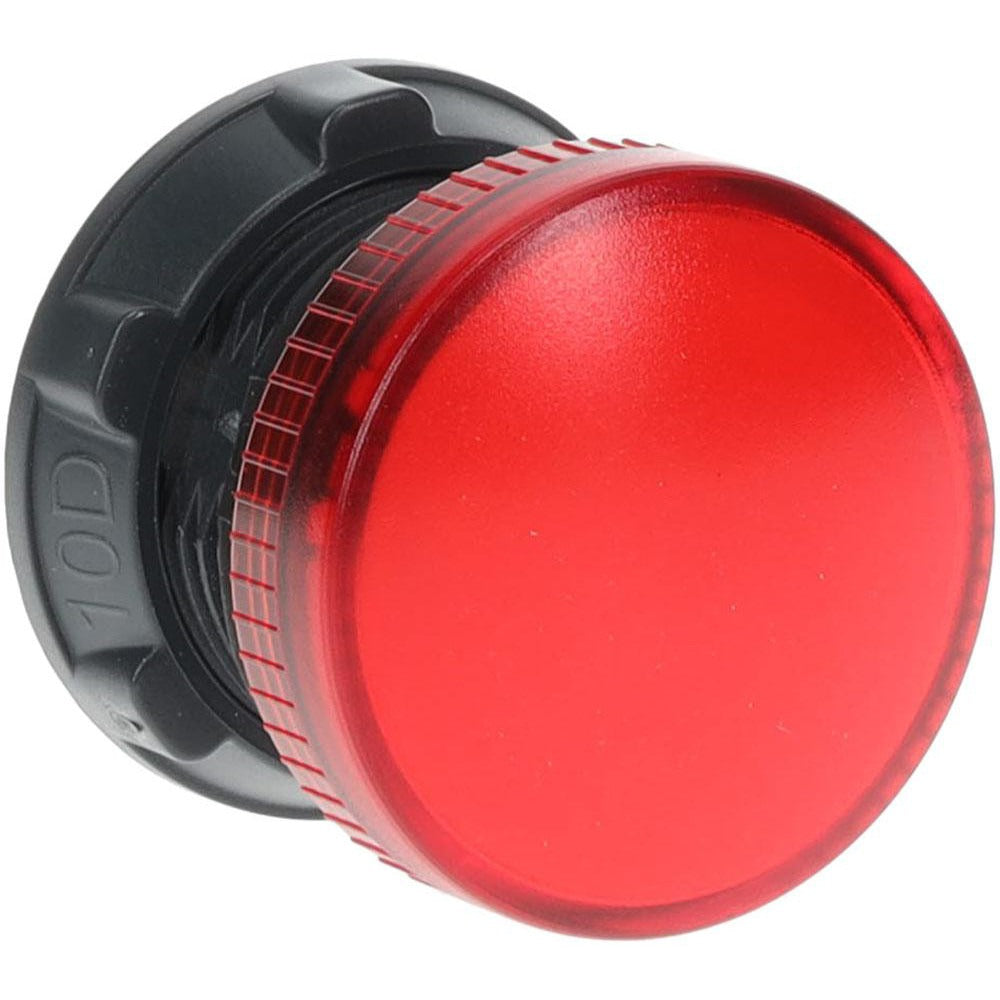

Schneider Electric ZB5AV04 Round Indicator Light Lens Red

Product Description

The SCHNEIDER ELECTRIC ZB5AV04 is a round, red replacement lens for pilot and indicator lights used in industrial control panels and operator interface assemblies. Designed for use with BA9s lamp bases, this lens snaps into compatible pilot light bodies to provide a clear visual status indication on control enclosures, switchgear, and machine control panels. The lens measures 1.3 inches in height, 1.3 inches in width, and 1.3 inches in length, making it a compact, direct-fit accessory. It meets a broad range of international and North American standards, including UL 508 and NEMA 4X/13, confirming suitability for harsh industrial environments. Electricians and panel builders typically handle installation during panel assembly or field repair.

This lens is suited for use in both commercial and industrial control applications where BA9s-type pilot light bodies are installed. Common install scenarios include replacing a cracked or discolored lens on an existing pilot light assembly, or populating a new control panel with status indicator components. The red color is conventionally used to signal fault, stop, or alarm conditions in control panel wiring practice. It is packaged individually and ordered in single-unit quantities, making it practical for field service calls as well as panel shop inventory.

Key Features

• Red round lens designed for BA9s pilot light and indicator light assemblies
• Compact 1.3 x 1.3 x 1.3 inch form factor fits standard pilot light body cutouts
• Rated NEMA 4X/13 for resistance to dust, oil, and corrosive environments
• Listed to UL 508 and meets CSA C22.2 No. 14 for industrial control equipment
• Compliant with EN/IEC 60947-1, EN/IEC 60947-5-1, and related IEC low-voltage switchgear standards
• Sold individually with no minimum order quantity above one unit

Compatibility

Designed for use with BA9s lamp base pilot light and indicator light bodies in industrial control panel applications. Specific compatible assemblies should be confirmed against SCHNEIDER ELECTRIC product documentation before ordering.

Installation Notes

Installation is performed by a licensed electrician or qualified panel builder. De-energize the control panel and follow lockout/tagout procedures in accordance with NFPA 70E before accessing any indicator light assembly. The lens typically seats or threads into the pilot light body by hand without special tools. Inspect the lens body for cracks after installation and verify the lamp base seating before returning the panel to service.
