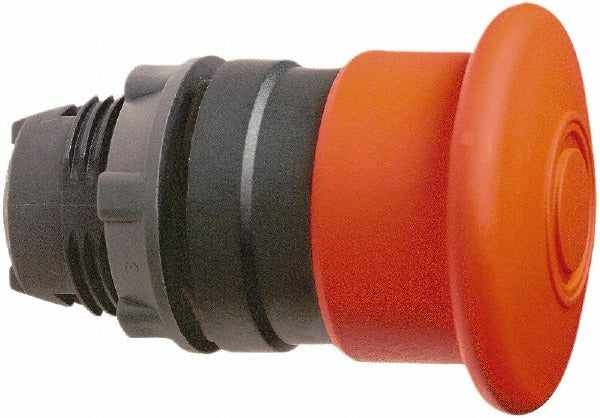

Schneider Electric ZB5AT84 Push-button Switch 22mm Red

Product Description

The SCHNEIDER ELECTRIC ZB5AT84 is a 22 mm push-button switch head designed for industrial control panel applications. It features a red, round, extended mushroom-head actuator made of plastic and supports both maintained and momentary operation modes, giving installers flexibility across a range of control circuit configurations. The unit mounts through a standard 22 mm panel cutout and carries NEMA 4X and 13 ratings, making it suitable for environments where moisture and dust resistance are required. Licensed electricians and industrial control panel builders are the primary installers of this component.

This push-button switch head is suited for use in industrial and commercial control panels, machine tool enclosures, and process equipment requiring a clearly visible red actuator for stop, emergency-use, or operator-control functions. Its extended mushroom-head profile provides a large actuation surface for gloved-hand operation. The dual operation mode — maintained and momentary — supports a wide variety of control logic requirements on the same platform.

Key Features

• 22 mm mounting hole diameter fits standard 22 mm panel cutout hardware
• Red round extended mushroom-head actuator for high-visibility operator identification
• Supports both maintained and momentary operation modes
• NEMA 4X and 13 rated for moisture and dust resistance
• RoHS compliant with broad international certifications including UL 508, CSA, and EN/IEC 60947-5-1
• Plastic actuator construction for lightweight, corrosion-resistant performance

Compatibility

Designed as an OEM-style replacement or new-installation push-button actuator head for standard 22 mm industrial control panel mounting systems.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements and applicable local codes. De-energize the control panel and verify zero voltage before removing or installing any push-button component. The actuator head mounts through the panel cutout and typically secures with a locking ring or collar — do not overtighten to avoid cracking the plastic body. Confirm operation mode selection (maintained vs. momentary) matches the control circuit logic before commissioning.
