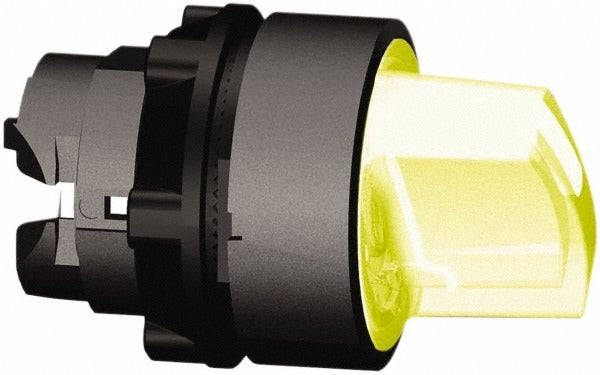

Schneider Electric ZB5AK1253 Selector Switch 22mm 2-position

Product Description

The SCHNEIDER ELECTRIC ZB5AK1253 is a 22 mm selector switch operator designed for use in industrial control panels and automation enclosures. It features a two-position maintained action with an orange round handle, making it suitable for applications where a distinct visual indicator of switch state is required. The operator carries an IP69K ingress protection rating, meaning it resists high-pressure water jets and washdown conditions. Bezel construction is plastic with a round head profile. This component is intended for installation by licensed electricians and control panel builders working on industrial or commercial equipment.

The ZB5AK1253 is used in control stations, machine operator panels, and industrial enclosures rated NEMA 13 and 4X. Its shock-resistant, vibration-resistant, and water-resistant construction makes it well suited for demanding production environments such as food processing, chemical, and heavy manufacturing facilities where frequent washdowns or exposure to coolants and oils are common. The 22 mm mounting hole diameter is a standard size that fits a wide range of panel cutouts and enclosure accessories in the Harmony XB5 platform.

Key Features

• Two-position maintained action retains selected position without operator input
• Orange handle provides clear visual identification of switch state
• IP69K rating withstands high-pressure, high-temperature washdown
• NEMA 13 and 4X rated for oil-tight and corrosion-resistant enclosure applications
• Shock-resistant and vibration-resistant construction for demanding industrial environments
• 22 mm round head fits standard panel cutouts

Compatibility

Designed as an OEM-style selector switch operator for 22 mm industrial control panel assemblies rated NEMA 13 and 4X. Specific contact block and base compatibility should be verified against the Harmony XB5 platform documentation.

Installation Notes

Installation should be performed by a qualified electrician in accordance with NEC requirements and local electrical codes. De-energize and lock out the control panel before removing or installing any operator component. The 22 mm panel cutout must be clean and free of burrs to ensure proper sealing and IP69K performance. Do not overtighten the mounting nut, as this may distort the bezel or compromise the enclosure seal.
