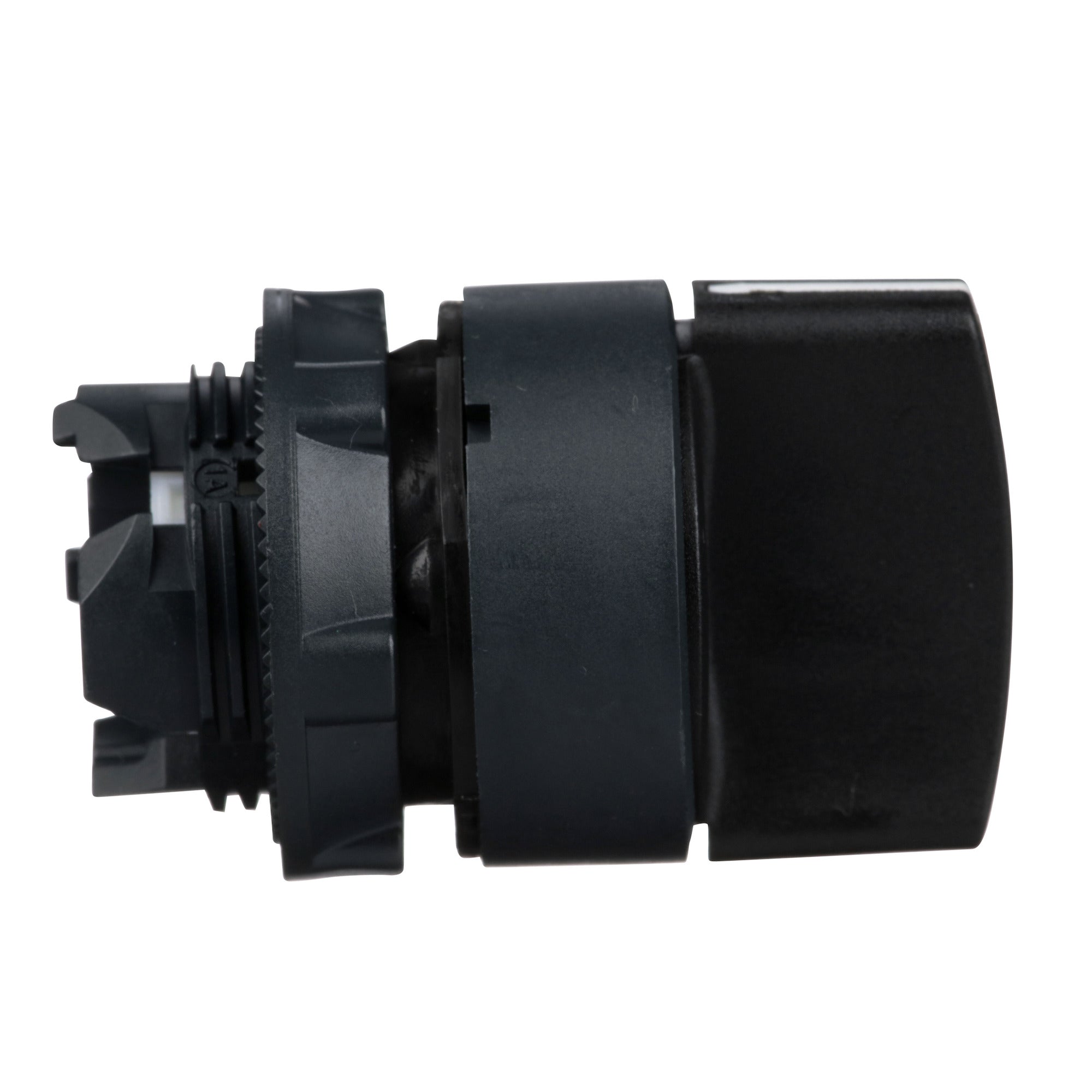

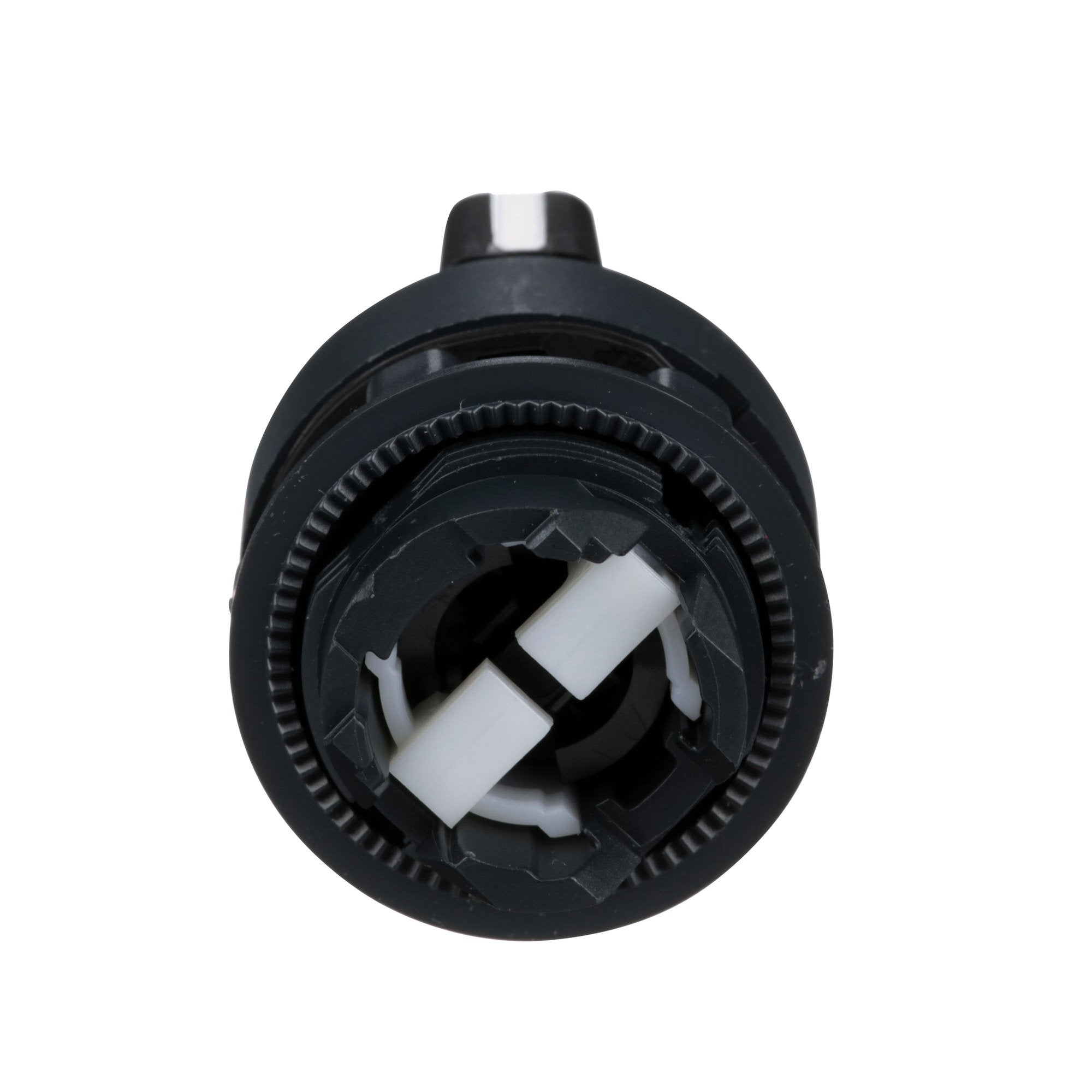

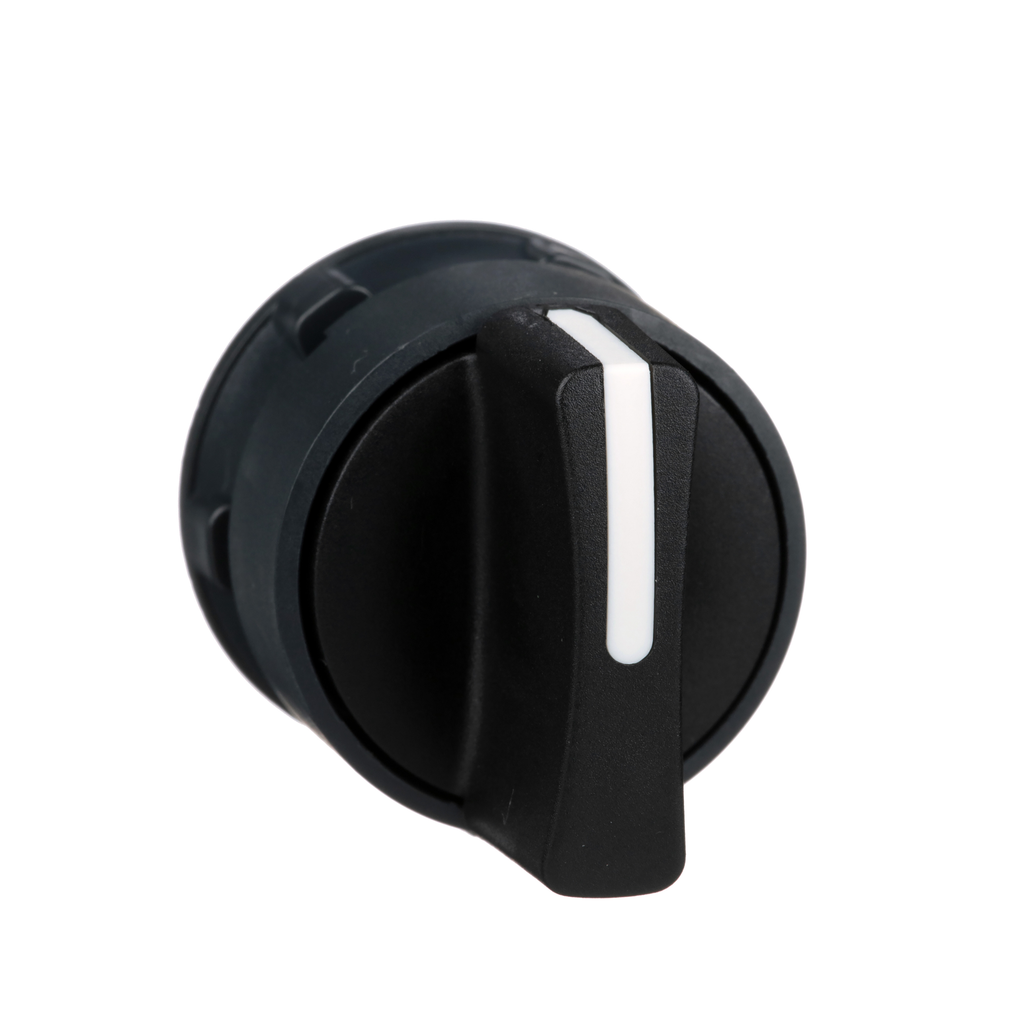

Schneider Electric ZB5AD2 Square D Selector Switch 2 Position Maintained ZB5AD2

Product Description

Schneider Electric ZB5AD2 is a selector switch designed for industrial applications. This push button selector switch features a 22 millimeter diameter and comes with maintained action for reliable operation. The design includes a snap fit head and body, secured with a single screw for simple installation.

• Compatible with standard 22 millimeter cutout
• Rated for high power applications
• IP66 and IP69K rated for resistance to dust and water

Product Highlights

This selector switch is ideal for machine manufacturers and control panel builders exposed to harsh environments. It meets certifications like EN/IEC, UL, NEMA, and CSA.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square D

Technical Specifications

• Catalog Number: ZB5AD2
• Size: 0.87 inches
• Type: Head for selector switch
• Action: Maintained
• Height: 29 millimeters
• Width: 29 millimeters
• Weight: 0.04 pounds
• Operating Temperature: -40 to 70 degrees Celsius
