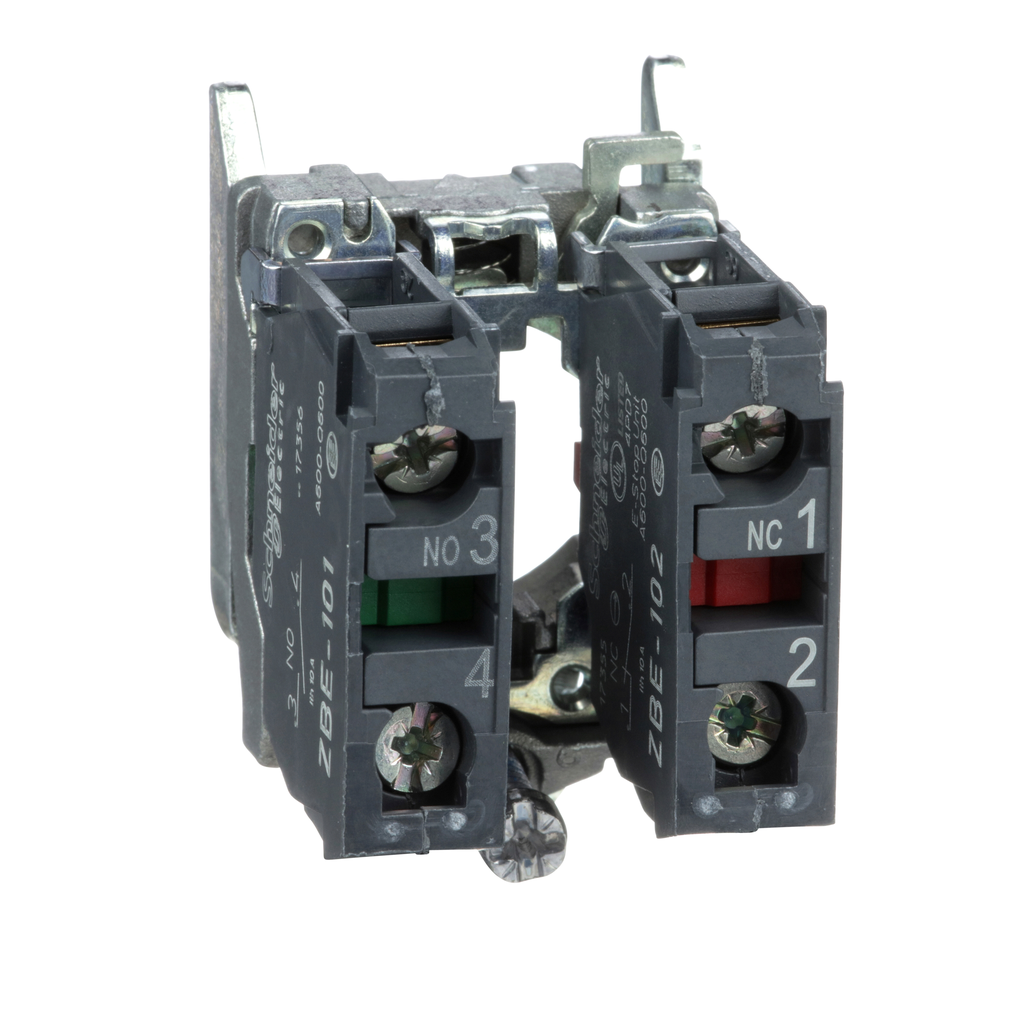

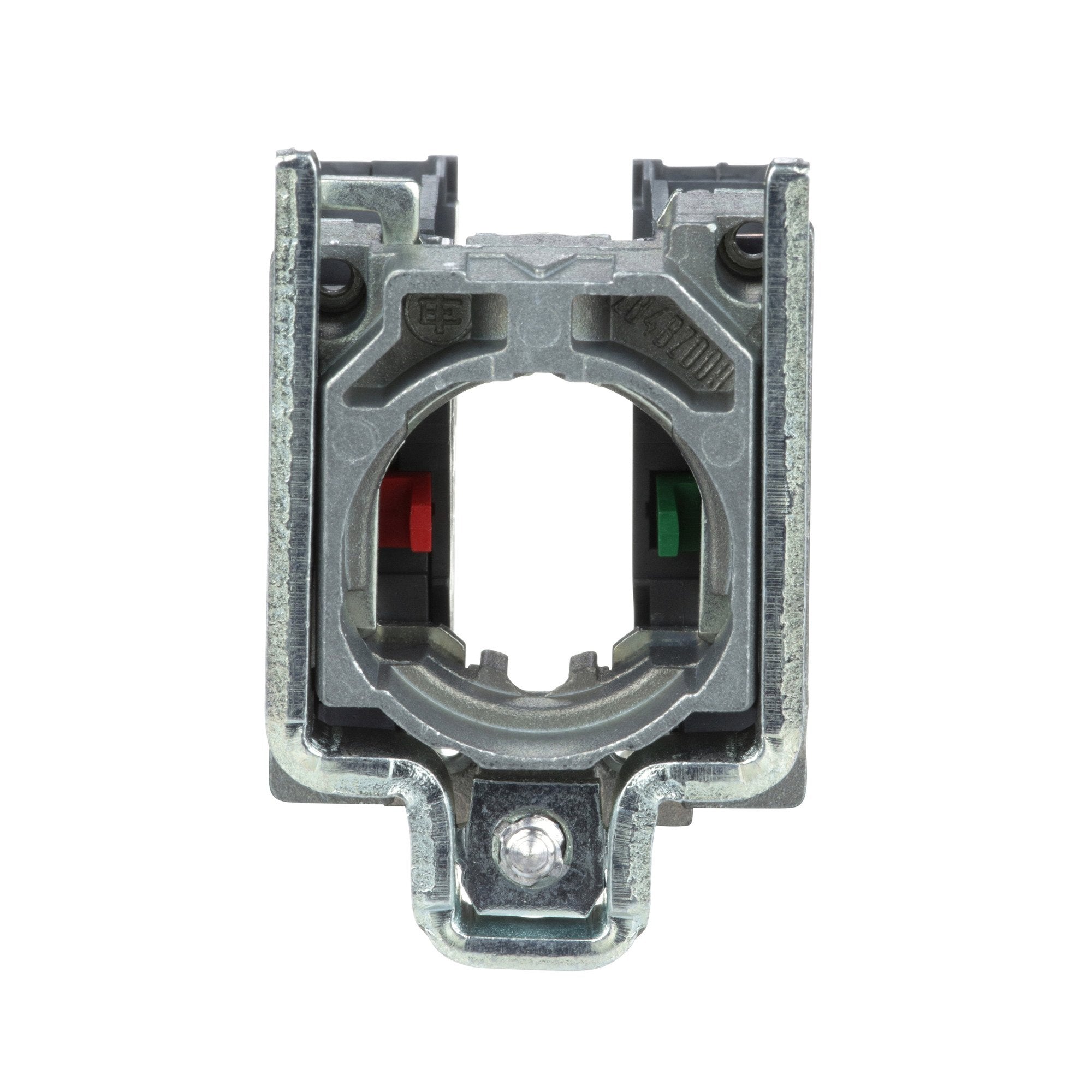

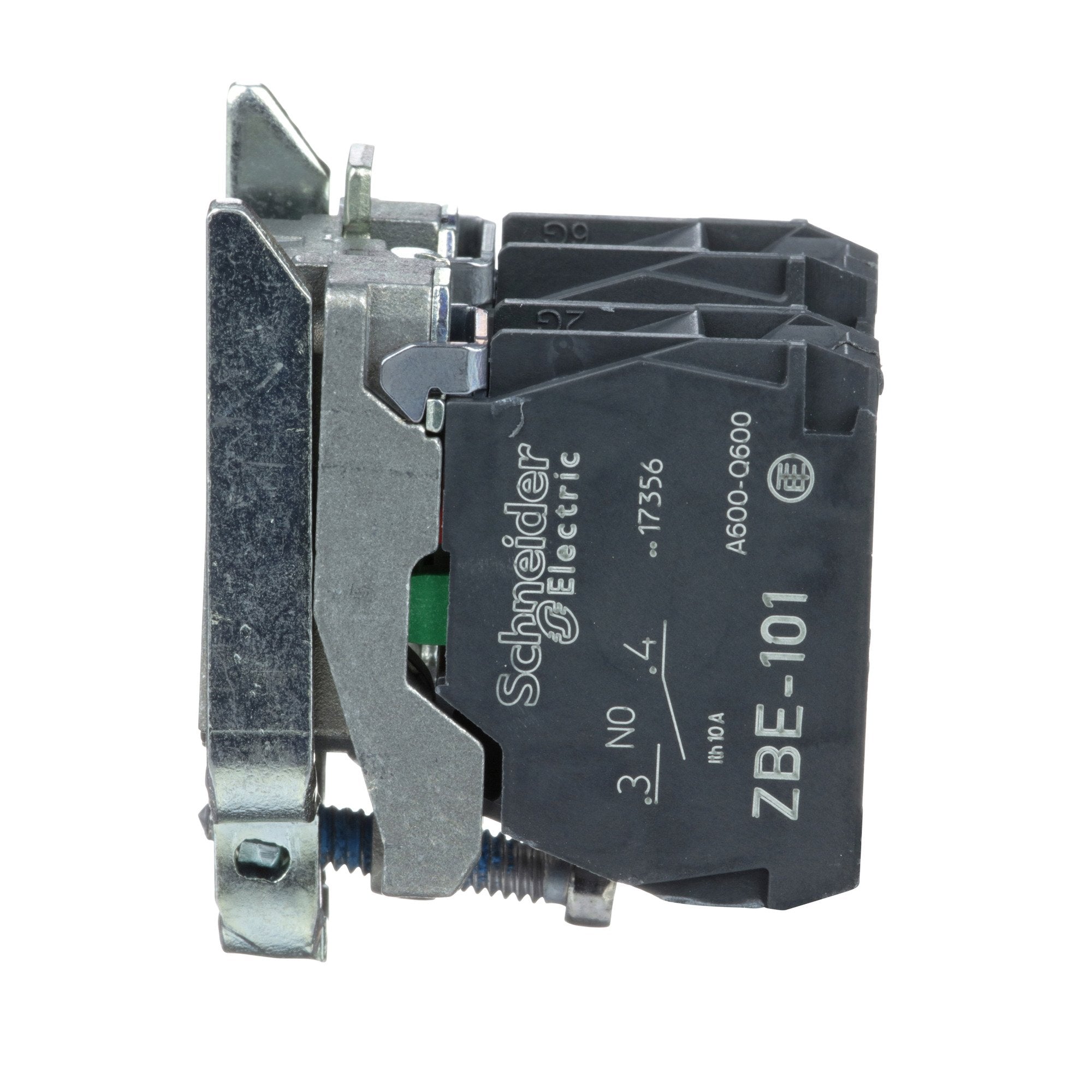

Schneider Electric ZB4BZ105 Harmony, 22mm Push Button, XB4B Operators, Contact Block w/ Mounting Collar, 1 NO and 1 NC, Screw Clamp Terminal

Product Description

Schneider Electric ZB4BZ105 is a modular push button designed for industrial use. This push button features a sturdy construction suitable for difficult operating conditions. It is part of the Harmony series and includes 1 normally open and 1 normally closed contact with a screw clamp terminal for easy installation.

• Modular design for customization
• IP66 and IP69K rated for harsh environments
• Compatible with various operators and modular attachments

Product Highlights

The ZB4BZ105 offers flexibility and robustness with a simple mounting system. It integrates easily into various control panels for machine manufacturers and industrial setups.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: ZB4BZ105
• Voltage: 600 Volt
• Amperage: 10 Amp
• Height: 47 mm
• Width: 30 mm
• Weight: 0.14 lb
• Contact Configuration: 1 NO + 1 NC
• Operating Temperature: -40 to 70 degrees C
