Schneider Electric ZB4BW533 Head for Illuminated Push Button 22mm Replacement MPN

Product Description

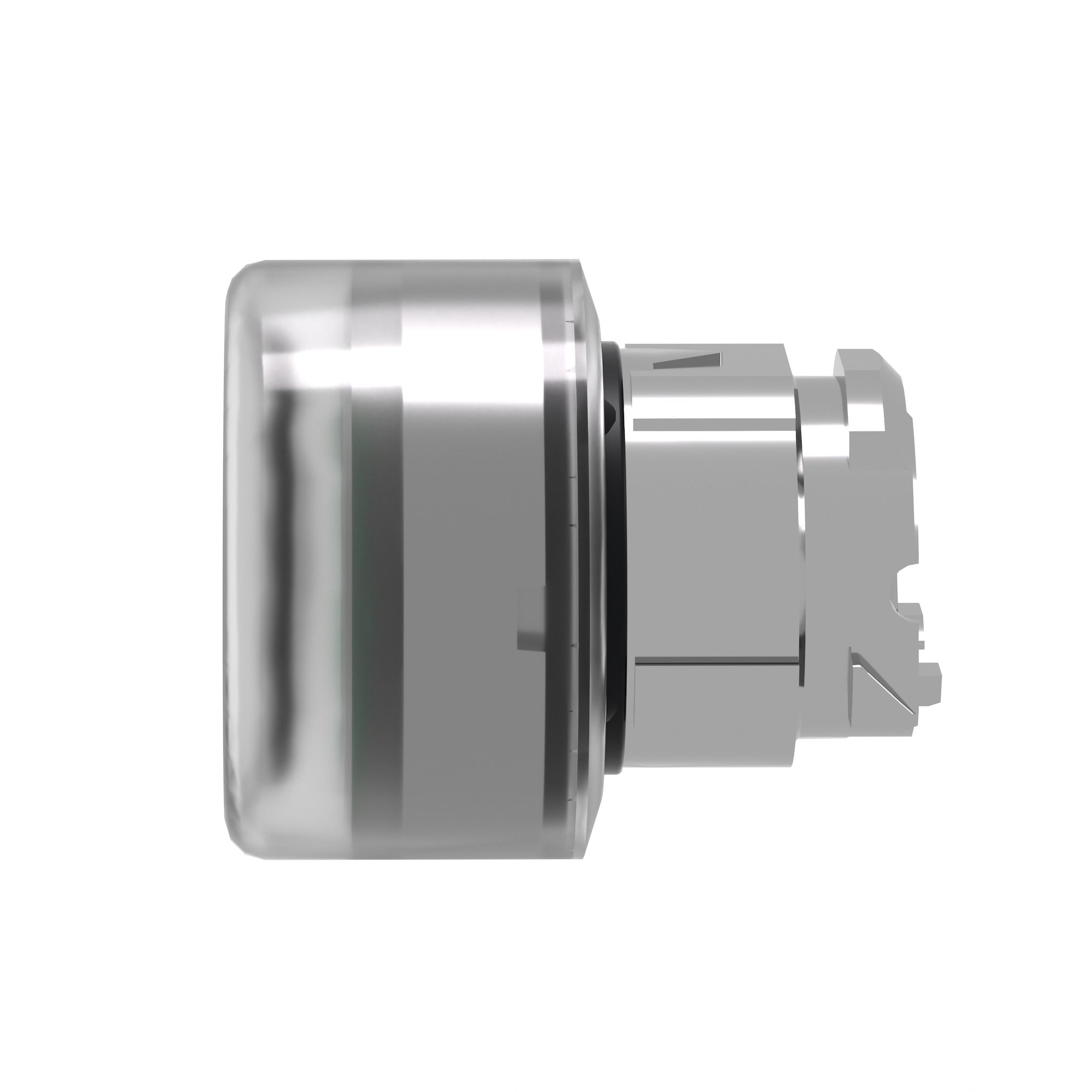

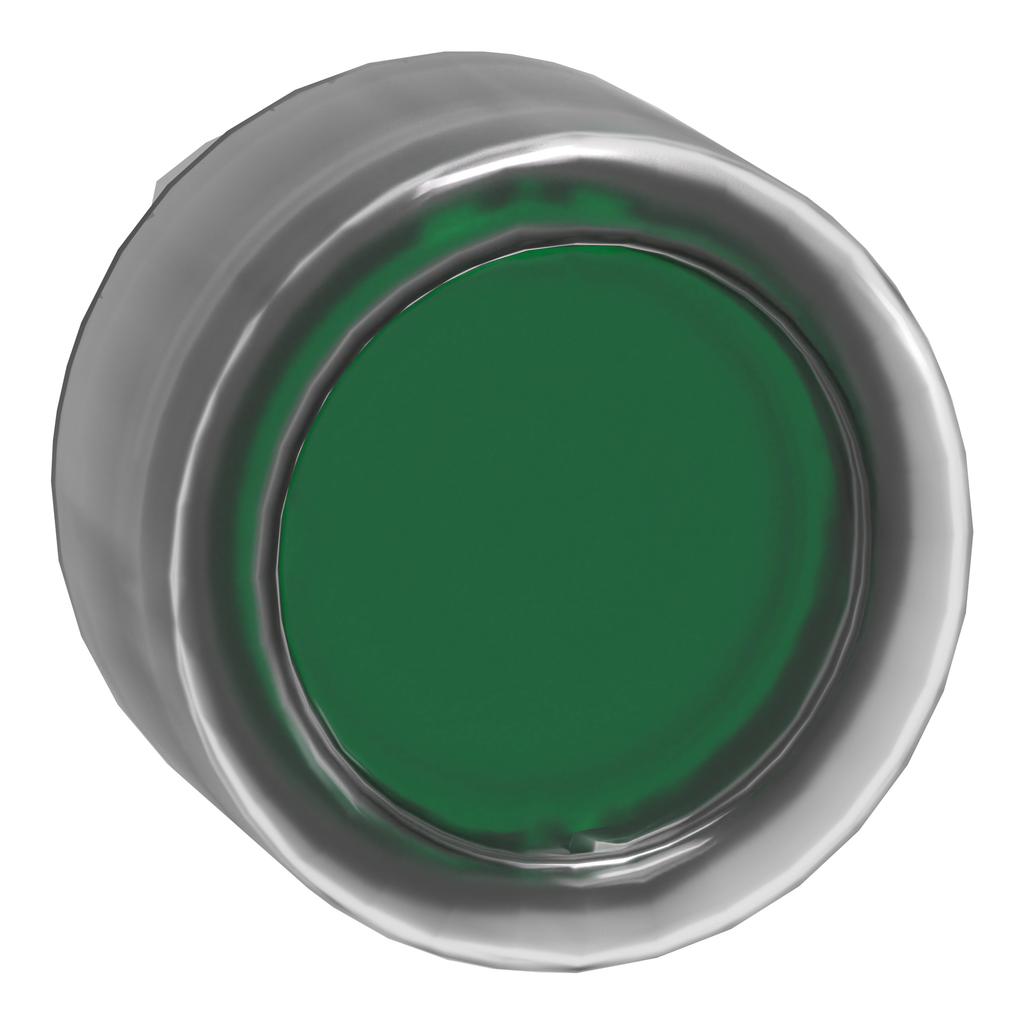

The Schneider Electric ZB4BW533 is a head for illuminated push button. This product features a spring return mechanism for enhanced operability. The green button head has a plain lens design and comes with a clear boot, making it easy to maintain. It prevents dirt and contaminants effectively, ensuring optimal operation.

• Designed for easy snap-fit assembly on compatible push button units.
• Impact resistant and rated IP69K for dust and water resistance.
• Wide operating temperature range from minus forty degrees to seventy degrees Celsius.

Product Highlights

This illuminated button head provides high visibility, making it easy to identify the function even in bright settings. The clear boot minimizes bacterial growth, suitable for hygiene-sensitive areas.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: ZB4BW533
• Type: Head for illuminated push-button
• Action: Momentary
• Width: 29 mm
• Height: 29 mm
• Operating Temperature: -40 to 70 degrees C
• Environmental Protection: IP 69K
• Weight: 0.07 lb
• Country of Origin: France
