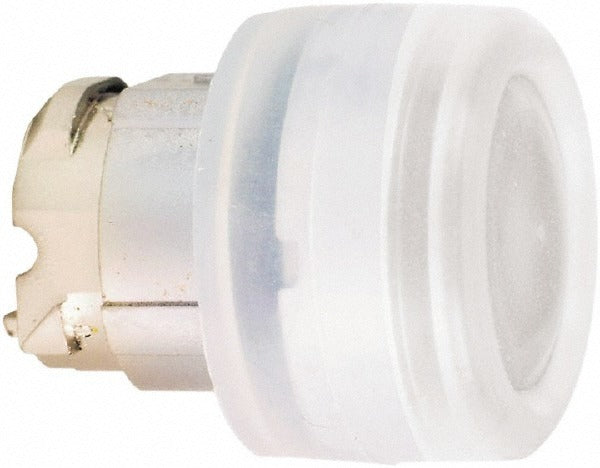

Schneider Electric ZB4BW513 Push-button Switch 22mm

Product Description

The SCHNEIDER ELECTRIC ZB4BW513 is a non-illuminated, momentary push-button switch designed for industrial control panel applications. It features a flush-style, round white pushbutton head with a 22 mm mounting hole diameter and a metal construction body. The momentary (MO) operation type means the contact state is maintained only while the button is depressed, returning to its default state upon release. Licensed electricians and industrial control technicians install this switch in operator interface panels, machine control stations, and process control enclosures. Its NEMA 4X and 13 ratings make it suitable for environments where moisture, dust, and corrosion resistance are required.

The ZB4BW513 fits standard 22 mm cutout control stations commonly found in industrial machinery, manufacturing equipment, and process automation panels. Its metal construction and sealed ratings make it a reliable choice for both light-duty and demanding industrial environments. The non-illuminated design keeps wiring simple where indicator lighting is not required, and the flush-mount profile reduces the risk of accidental actuation.

Key Features

• 22 mm mounting hole diameter fits standard industrial control panel cutouts
• Momentary (MO) operation returns to default state when pressure is released
• Flush-mount, round white pushbutton head reduces accidental actuation risk
• Metal construction for durability in demanding industrial environments
• NEMA 4X and NEMA 13 rated for moisture, dust, and corrosion resistance
• Meets UL 508, CSA C22.2 No. 14, EN/IEC 60947-5-1, and multiple international standards

Compatibility

Designed as an OEM-style replacement or new-installation push-button operator for 22 mm industrial control stations and operator interface enclosures. Consult panel documentation to confirm contact block and body assembly compatibility before installation.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the NEC and applicable local codes. De-energize and lock out the control panel before removing any existing operators or installing this switch. Verify that the mounting panel thickness is within the specified range for the ZB4BW513 body assembly before securing. Do not exceed the rated voltage and current specifications for the associated contact block.
