Schneider Electric ZB4BW353 Head for Illuminated Push Button Operator 22mm

Product Description

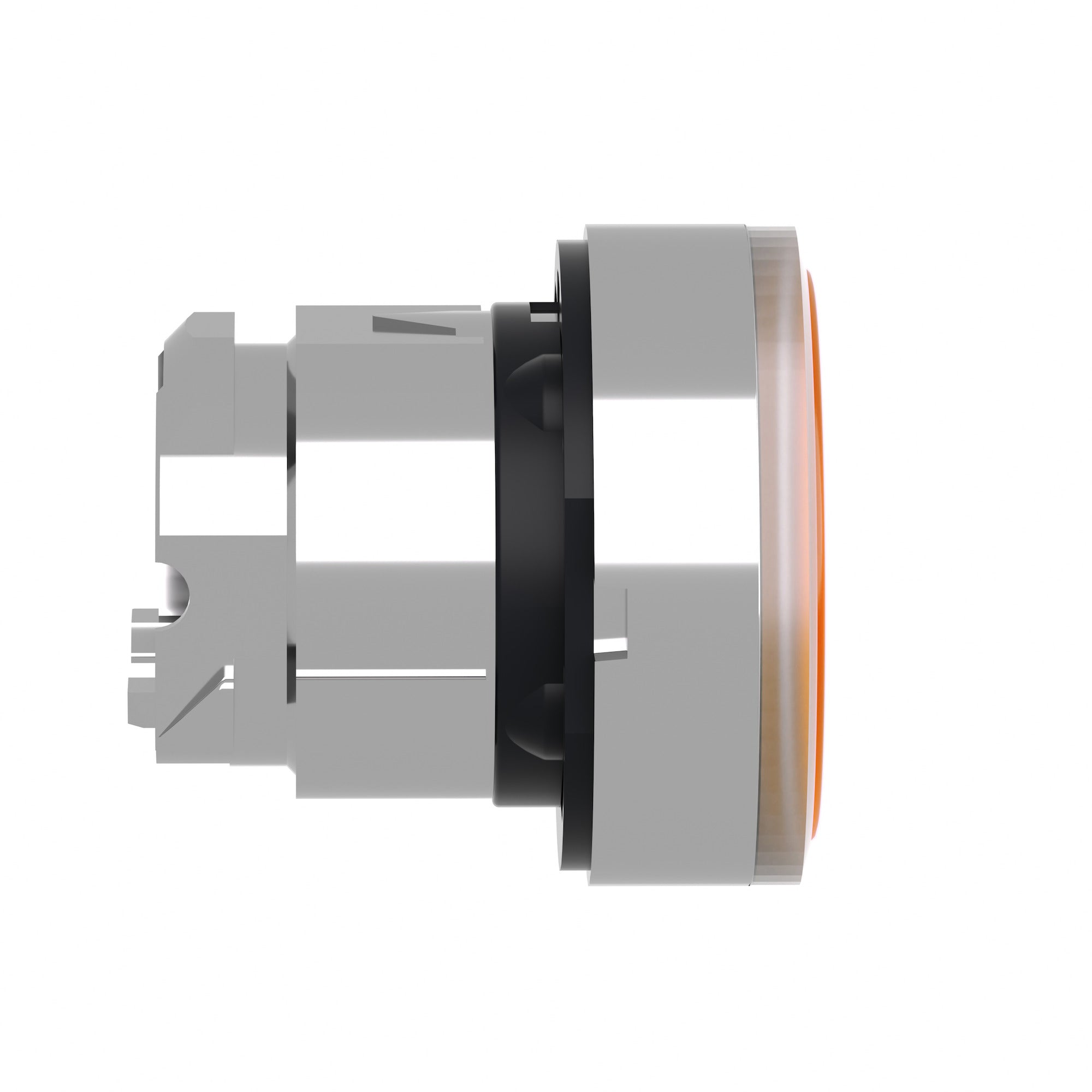

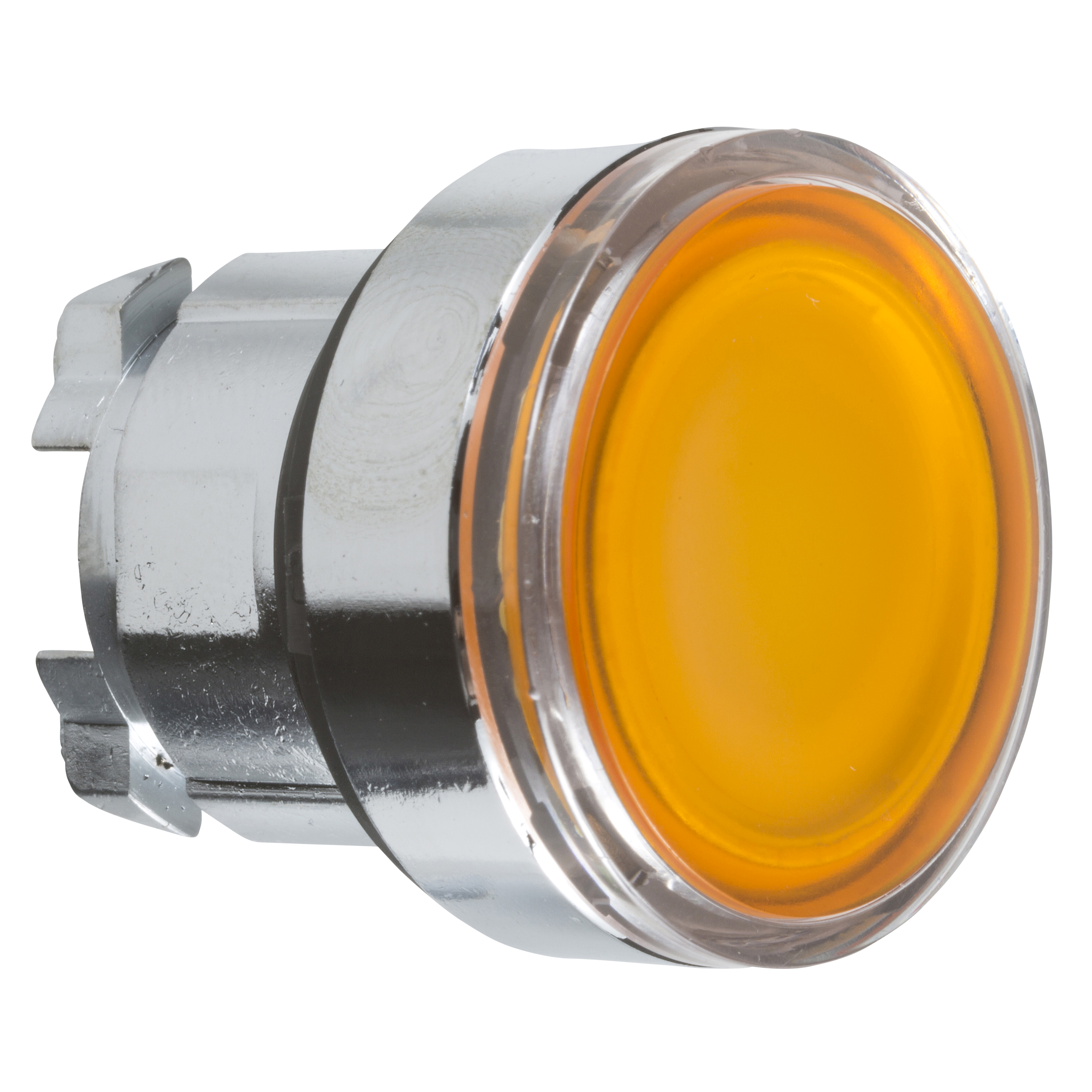

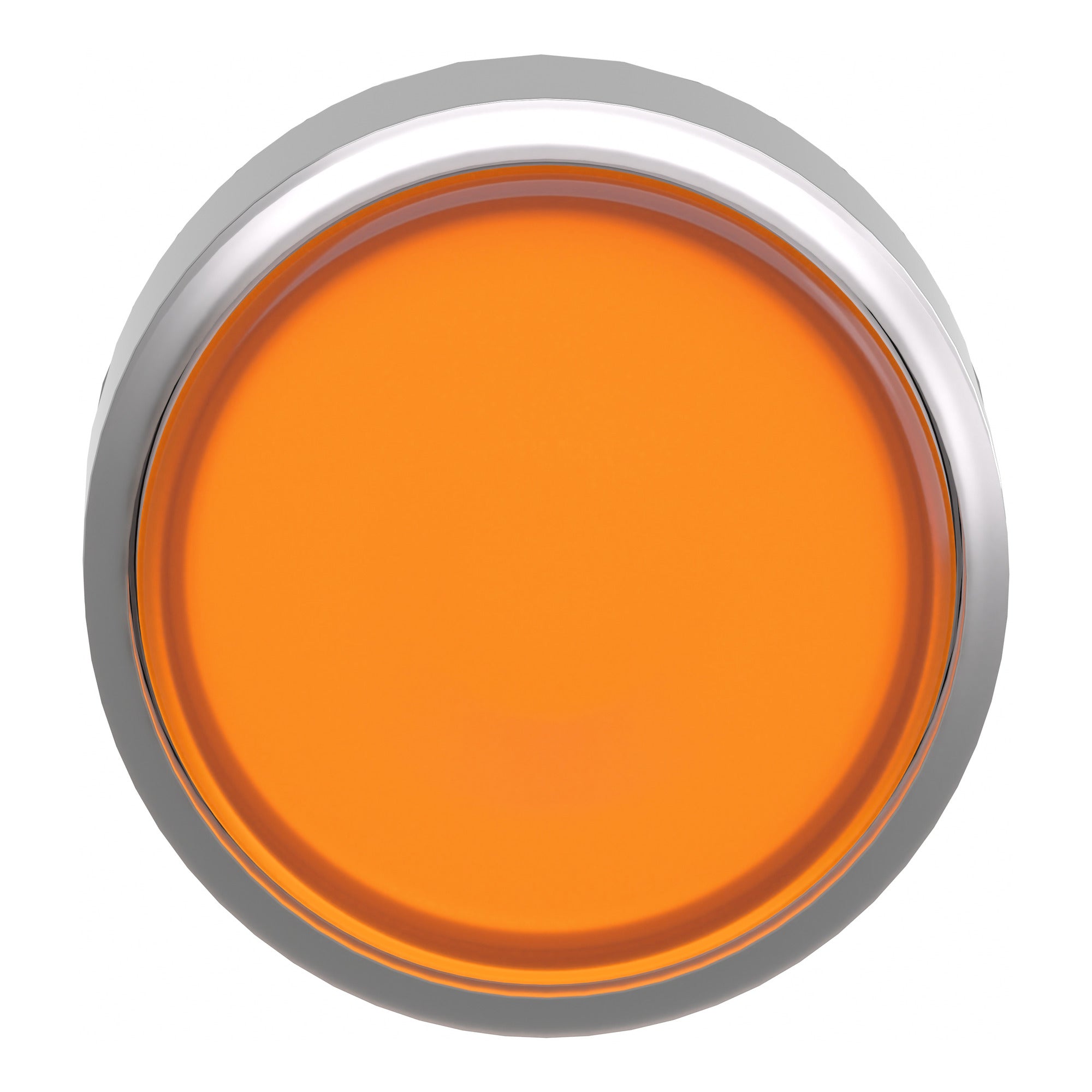

Schneider Electric ZB4BW353 is a head for an illuminated push button operator. This 22 mm round orange flush button has a momentary action and operates with a universal LED. It can be easily installed and replaced on standard push button units and contact blocks through a snap-fit assembly. The button is visually clear and touch sensitive for accurate control of machines. It is constructed to be resistant to dust, water, and vibrations with an IP66 rating. The robust metal bezel ensures durability in high-impact environments.

• Fits standard twenty-two mm cutout.
• Wide temperature range of minus forty degrees Celsius to seventy degrees Celsius.
• High visibility for function identification.

Product Highlights

This product is suitable for a range of industrial applications requiring reliable and swift control. Its simple installation process and compatibility make it ideal for upgrading existing machinery.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: France

Technical Specifications

• Catalog Number: ZB4BW353
• Size: 22 mm round
• Type: Pushbutton operator
• Action: Momentary
• Weight: 0.06 lb
• Indicator Color: Orange
• Operating Temperature: -40 to 70 degrees Celsius
• Enclosure Rating: NEMA 1/2/3/4/4X/13
