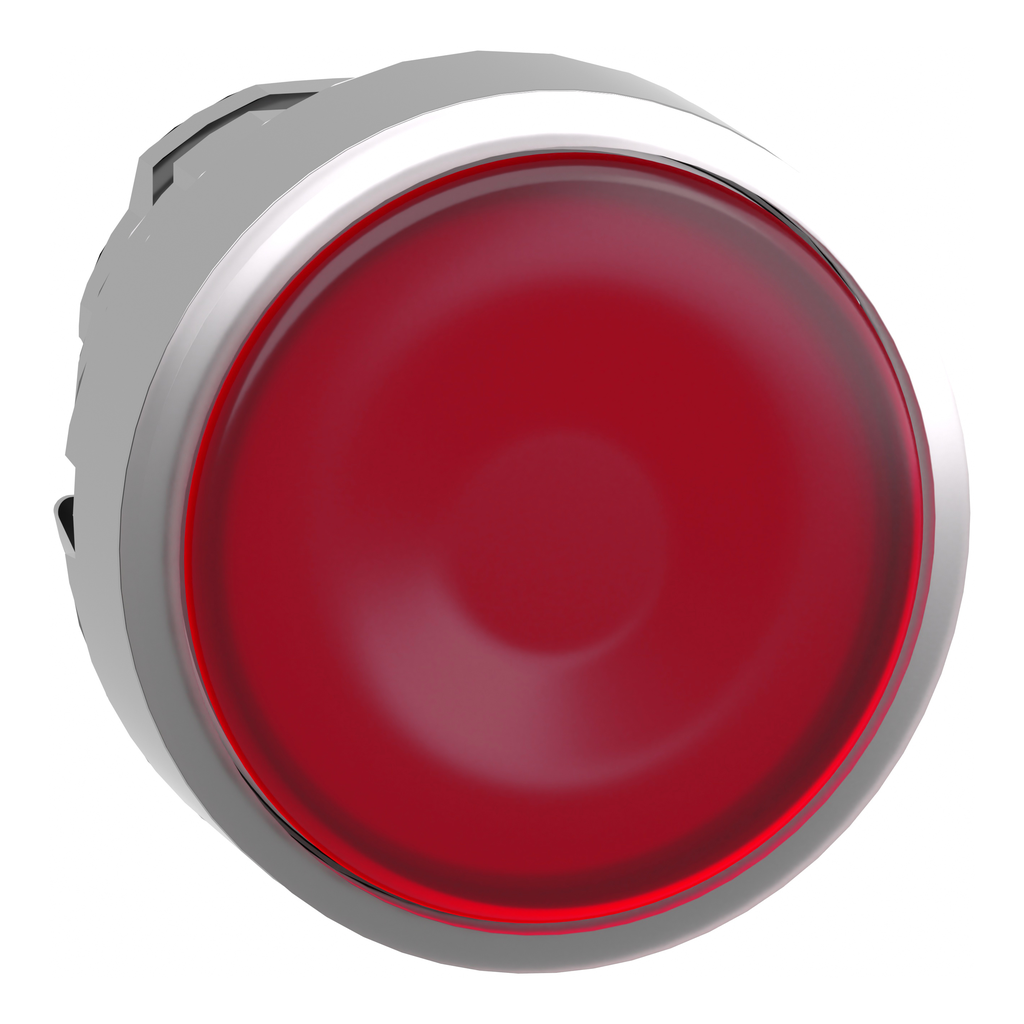

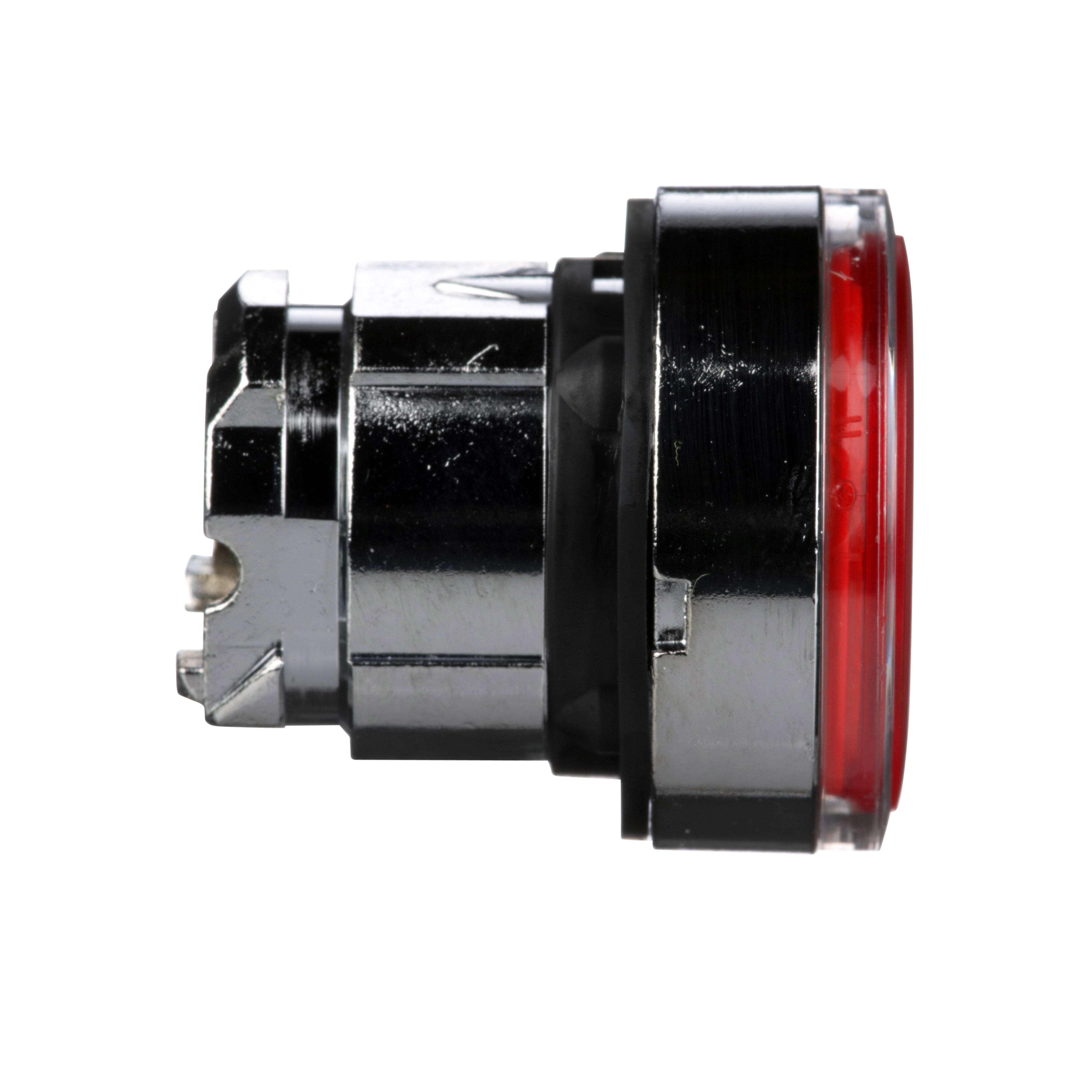

Schneider Electric ZB4BW343 Square D 22 mm Red Round Flush Momentary Illuminated Push Button Operator

Product Description

The Schneider Electric ZB4BW343 is a 22 mm red round flush momentary illuminated push button operator. This control device operates with a spring return and is designed for applications requiring a clear and visible activation interface.

• Impact, dust, and water-resistant with an IP66 rating
• Compatible with standard 22 mm cutouts for easy installation
• Wide operating temperature range from negative forty degrees Celsius to seventy degrees Celsius

Product Highlights

This button provides a reliable interface for machine control. The bright illumination makes it easy to identify the operational status, while its robust construction ensures durability in tough environments.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Country of Origin: France

Technical Specifications

• Catalog Number: ZB4BW343
• Weight: 0.06 lb
• Width: 29 mm
• Height: 29 mm
• Action: Momentary
• Enclosure: NEMA 1/2/3/4/4X/13
• Indicator: Red
• Operating Temperature: -40 to 70 degrees Celsius
