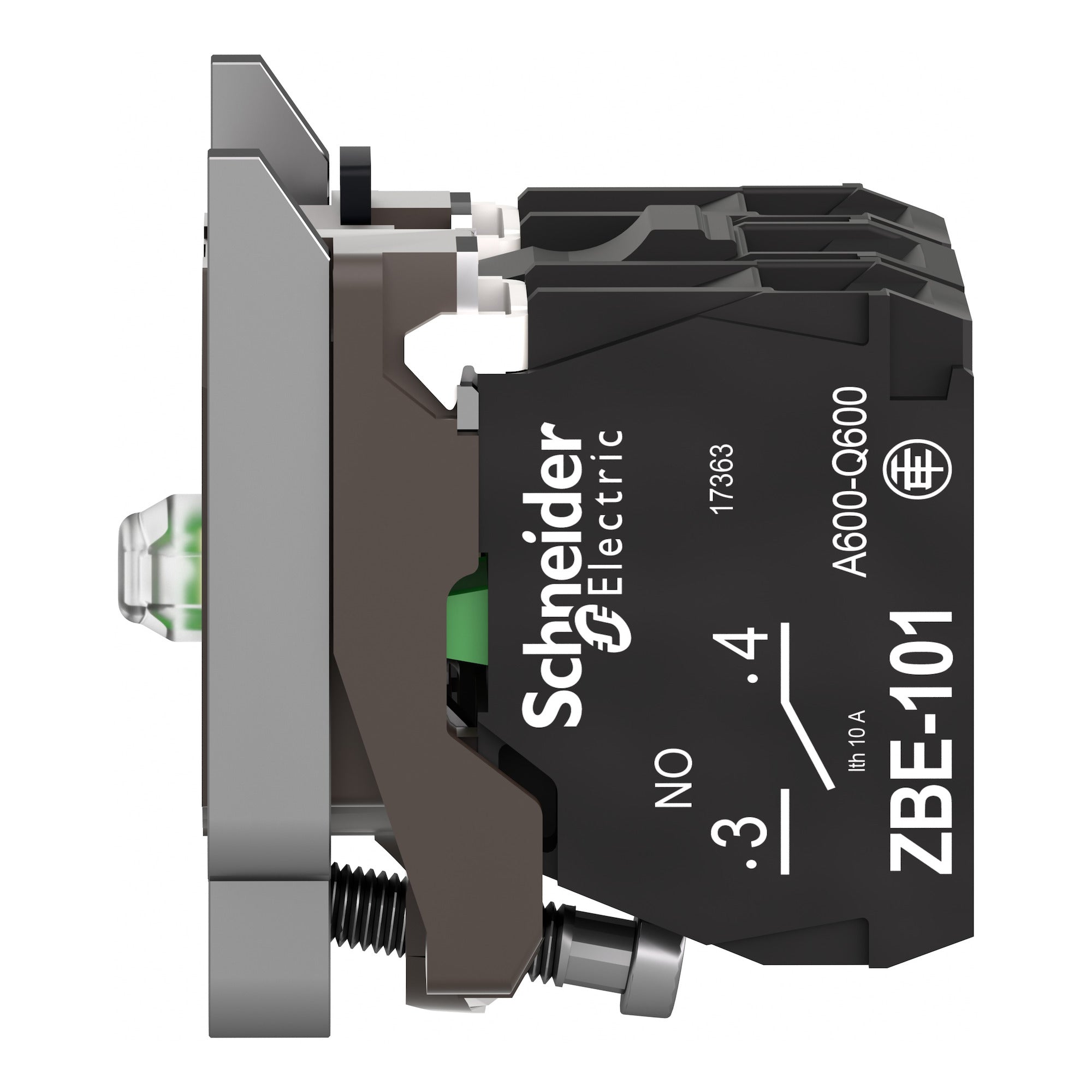

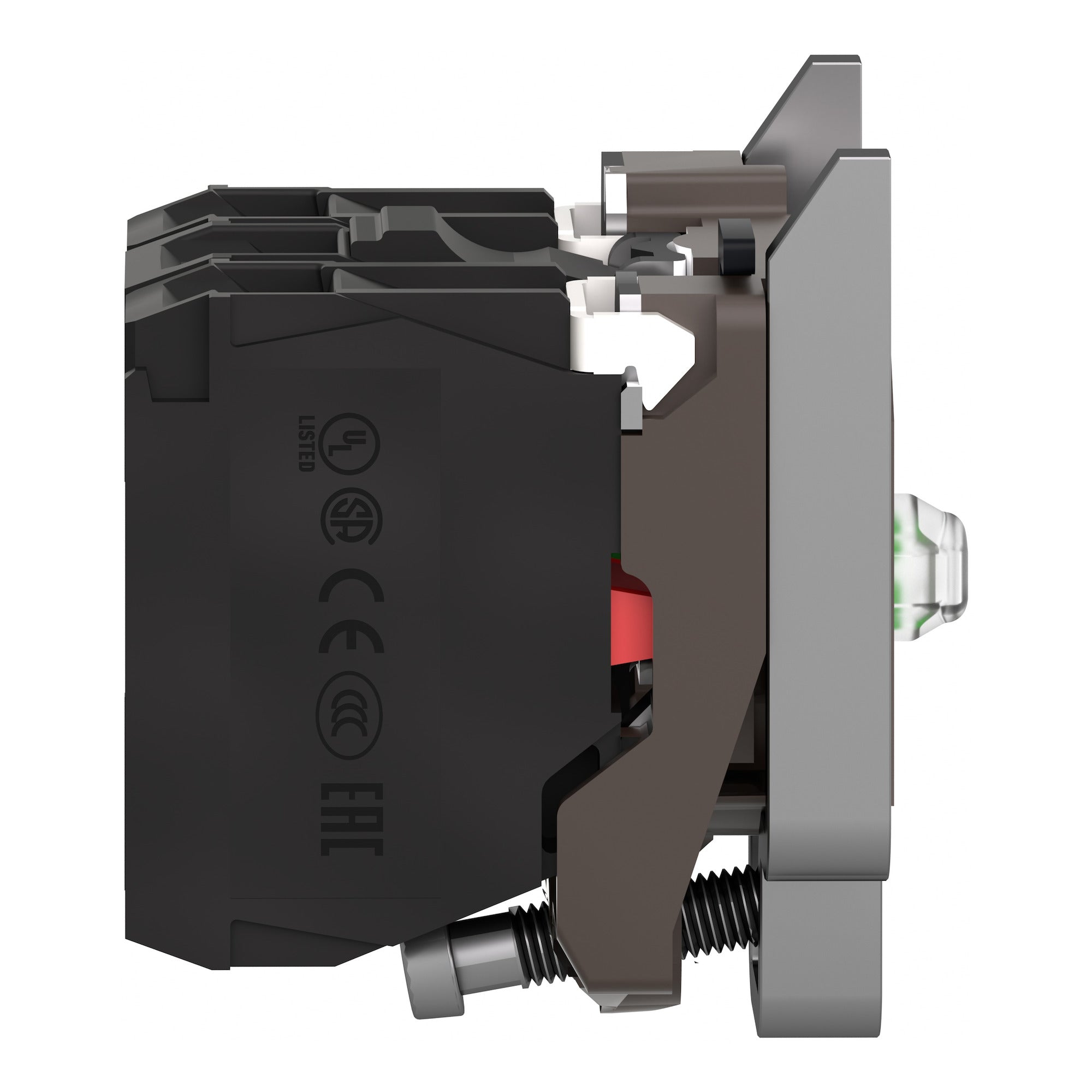

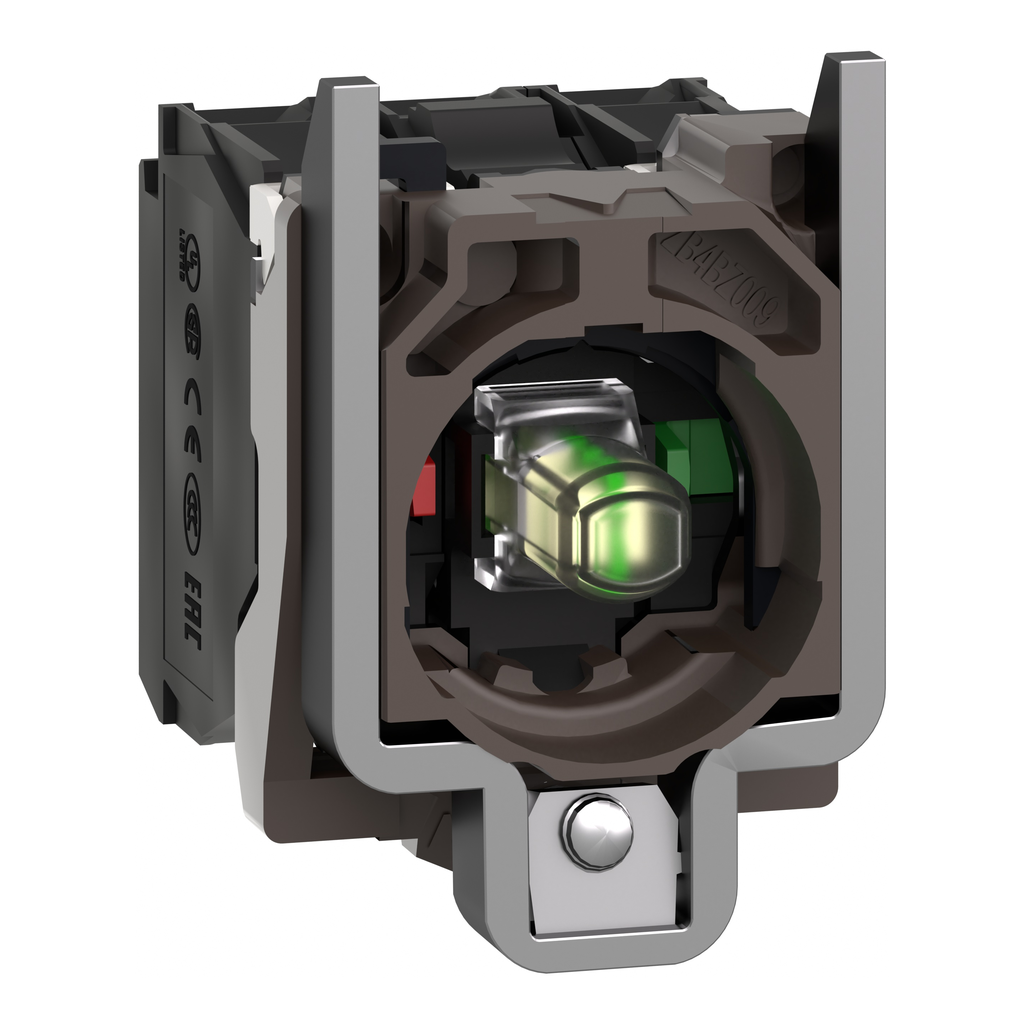

Schneider Electric ZB4BW0G15 Complete Body Contact Assembly and Light Block 110 to 120 VAC

Product Description

The Schneider Electric ZB4BW0G15 is a complete body contact assembly and light block designed for use with Harmony XB4 pilot lights. It operates on 110 to 120 VAC and features one normally open (NO) and one normally closed (NC) contact. This assembly includes an integral LED for visual indication and is designed to fit standard twenty-two millimeter control and signaling units.

• Designed for easy installation and replacement with clip-together assembly.
• Impact, dust, and water-resistant to IP66 standards.
• Operates in a temperature range from negative forty degrees Celsius to fifty-five degrees Celsius.

Product Highlights

This body contact assembly offers fast replacements in signaling units. It connects easily with screw-clamp connections.

Product Information

Standard Information

• Catalog Number: ZB4BW0G15
• Brand: Schneider Electric

Technical Specifications

• Voltage: 110 to 120 VAC
• Current: 14 mA
• Amperage: 10 Amp
• Width: 30 mm
• Height: 47 mm
• Weight: 0.16 lb

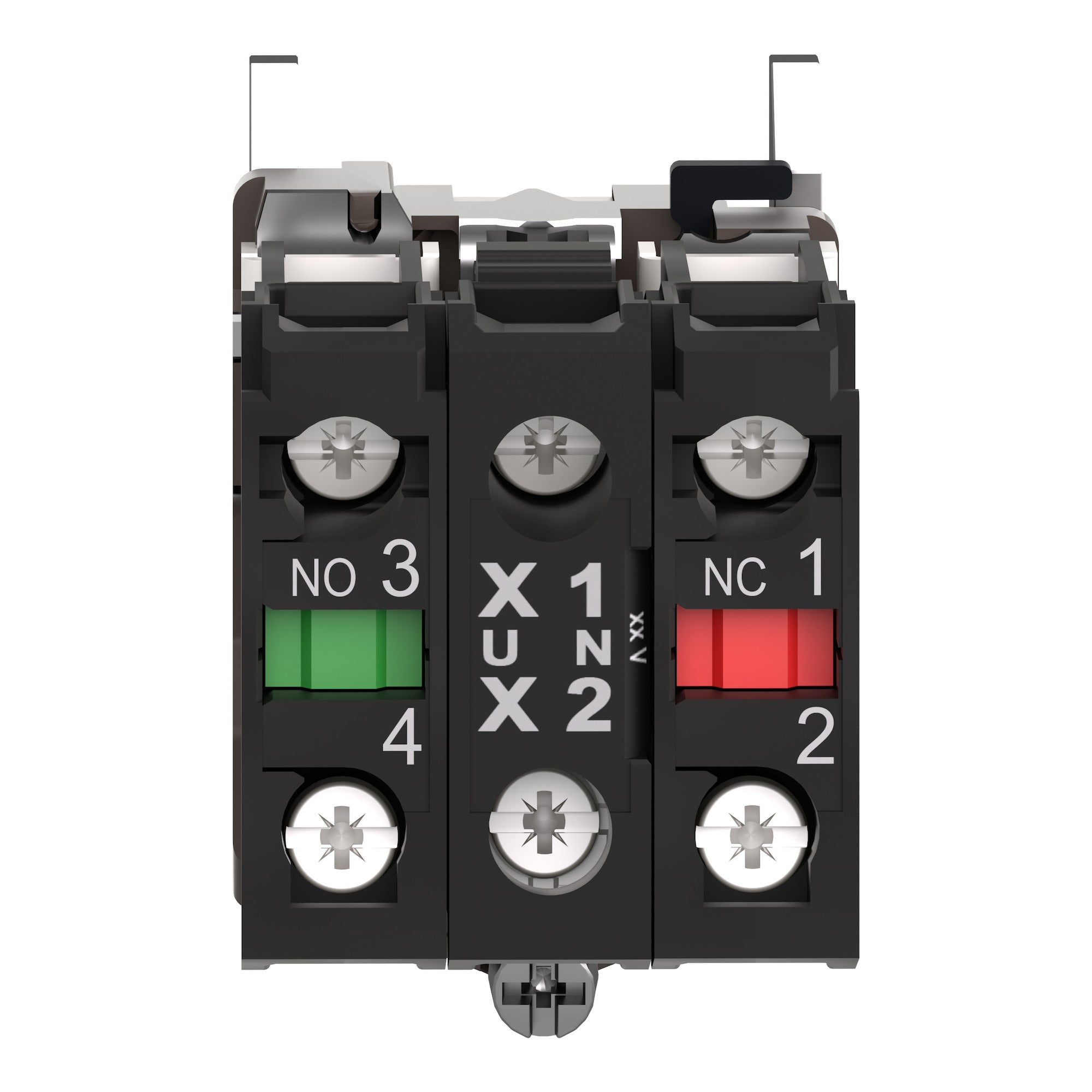

• Contact Configuration: 1 NO + 1 NC
• Operating Temperature: -40 to 55 degrees Celsius
• Standard Compliance: CSA C22.2 No 14, IEC 60947-1, IEC 60947-5-1
