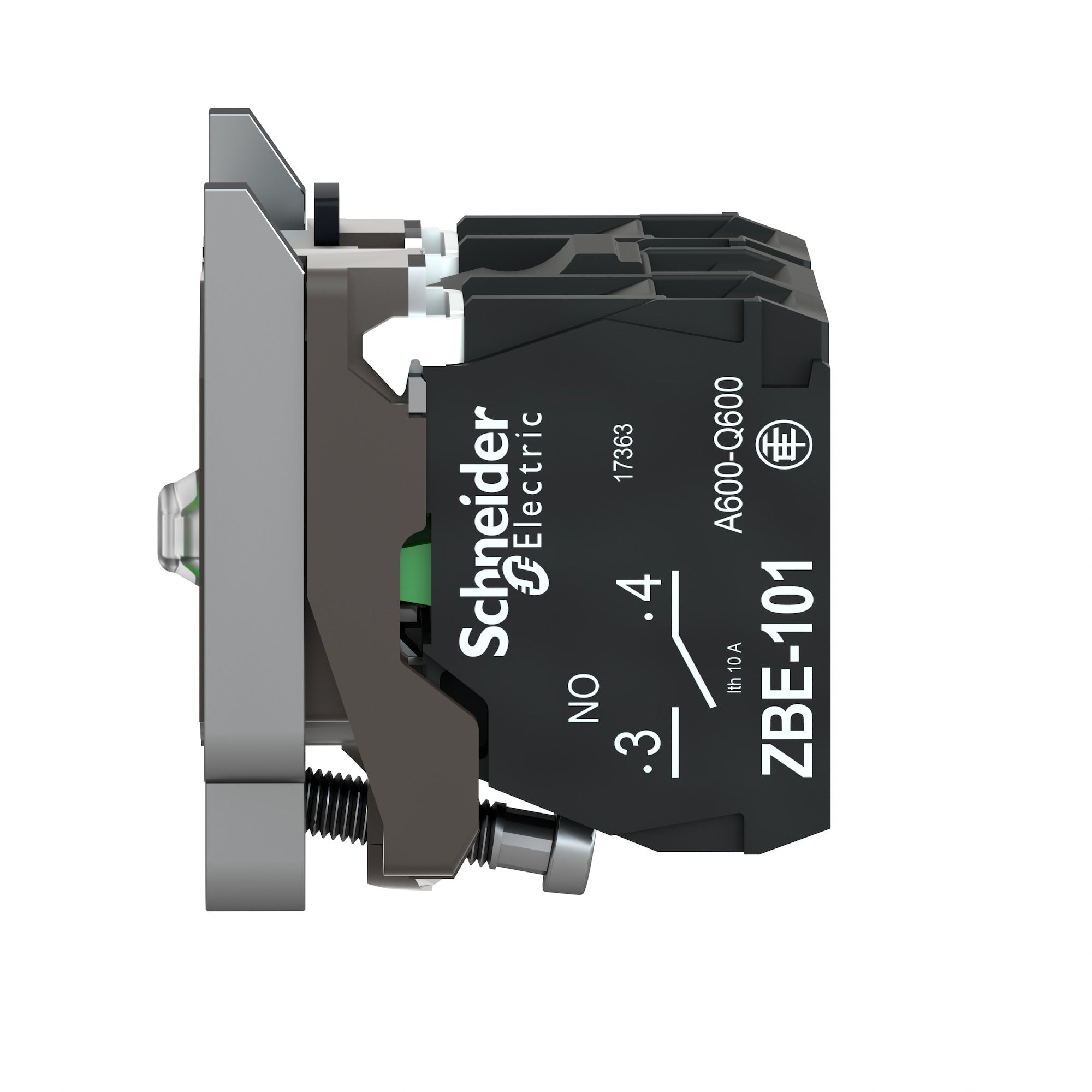

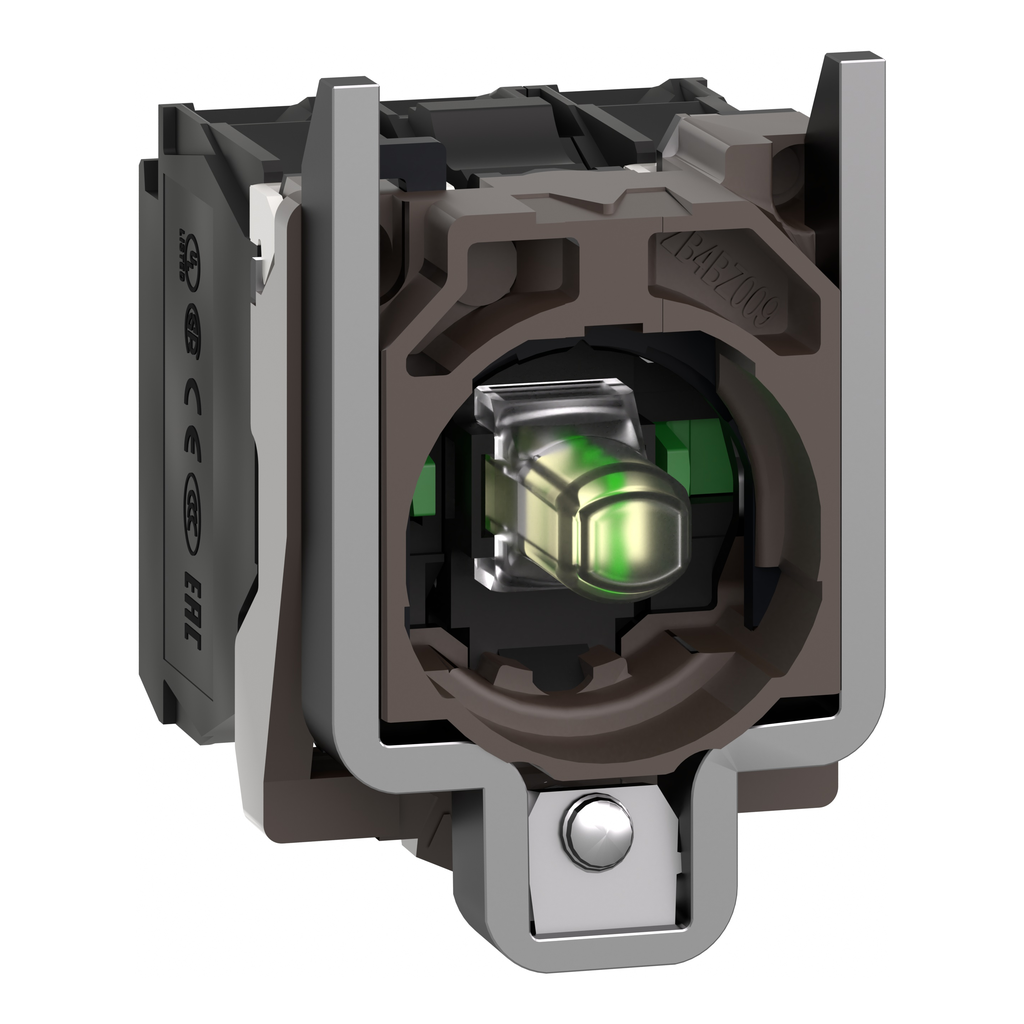

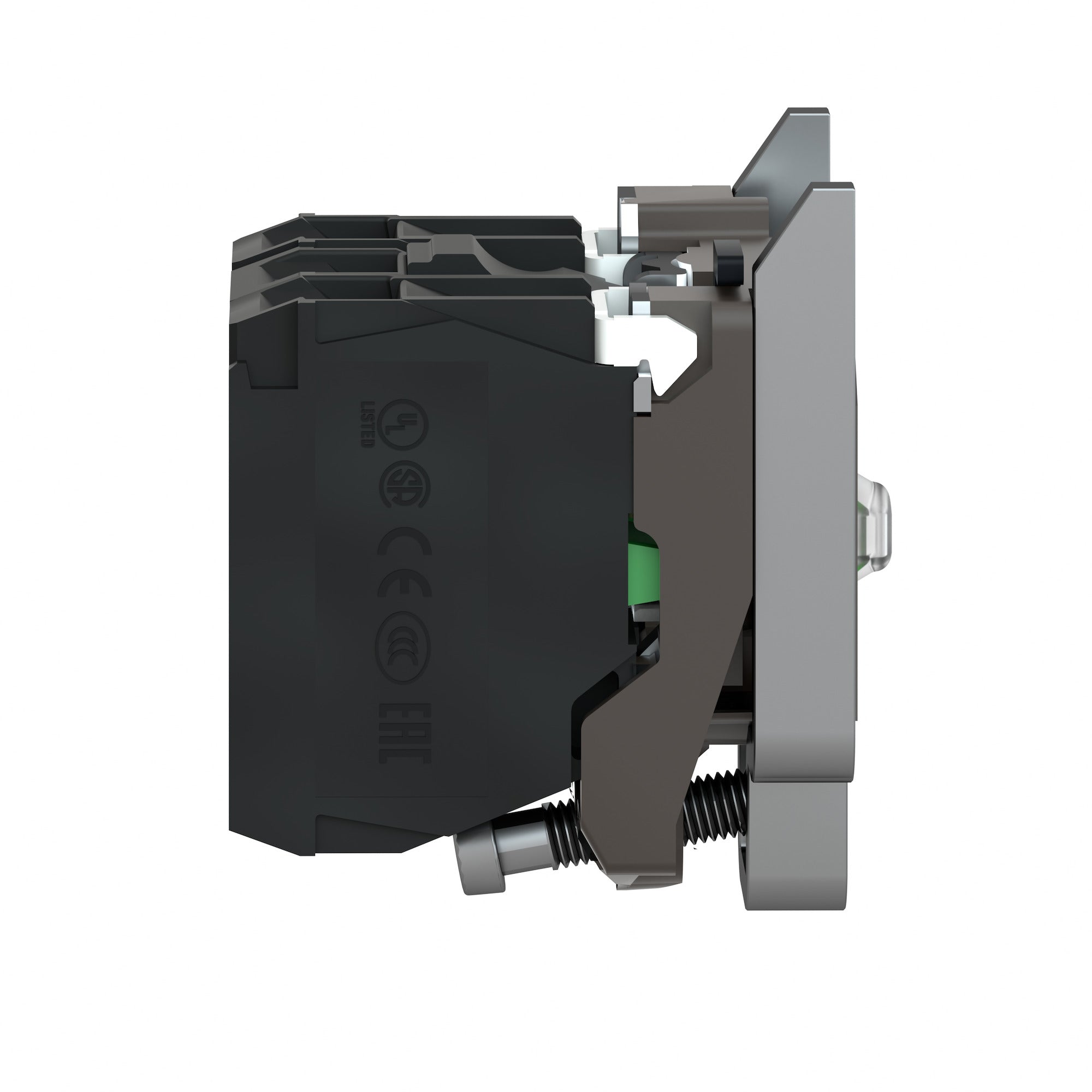

Schneider Electric ZB4BW0B13 Square D 22 mm 24 VAC/VDC 2NO White Single Contact Block Light Module with LED

Product Description

Schneider Electric ZB4BW0B13 is a 22mm light module designed for use in control systems. It operates on 24 Volt AC or DC and features two normally open contacts. This device incorporates a universal LED for visual indication, ensuring high visibility in various applications.

• Two normally open contacts for standard operation
• Impact, dust, and water-resistant with IP66 rating
• Wide operating temperature range from minus forty degrees Celsius to fifty-five degrees Celsius

Product Highlights

This product is designed to fit standard 22mm control units. Its design allows for easy installation and replacement on illuminated push-button units, making it convenient for factory settings or control panels.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: ZB4BW0B13
• Type: Complete body/contact assembly and light block
• Voltage: 24 VAC/VDC
• Amperage: 10 Amp
• Current: 18 mA
• Width: 30 mm
• Height: 47 mm
• Weight: 0.16 lb
• Indicator: Integral LED, protected LED, white
• Operating Temperature: -40 to 55 degrees Celsius
• Country of Origin: France
• Warranty: 18 months
