Schneider Electric ZB4BW06124 Pushbutton Collar Light Module

Product Description

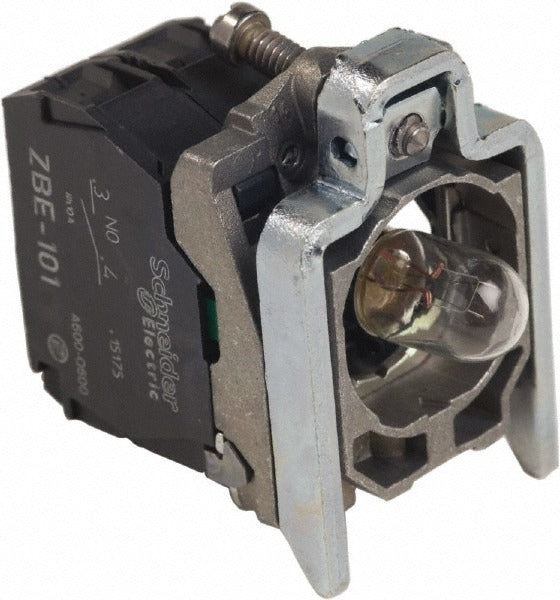

The SCHNEIDER ELECTRIC ZB4BW06124 is a pushbutton switch mounting collar that integrates a contact block and a BA 9s lamp light module into a single assembly. Designed for 22mm pushbutton stations, this component combines the mechanical mounting function with electrical contact switching and indicator illumination in one compact unit. It is used by electricians and control panel technicians to build or service operator interface assemblies on industrial control panels, machine controls, and automation equipment. The unit measures 2.5 inches in length, 1.6 inches in width, and 1.3 inches in height, and weighs approximately 0.15 pounds.

This collar is intended for use with XB4 electrical components and ZB4B pushbutton bodies in 22mm panel-mount configurations. It suits industrial and light commercial control applications where a single pushbutton position must provide both a switched contact output and a lamp indication signal. Typical installations include machine start/stop stations, selector switch assemblies, and indicator-equipped pushbutton arrays on control enclosures.

Key Features

• Combines mounting collar, contact block, and BA 9s lamp module in one assembly
• Fits standard 22mm pushbutton cutouts for straightforward panel installation
• Compatible with XB4 electrical components and ZB4B pushbutton bodies
• Compact form factor: 2.5 x 1.6 x 1.3 inches
• Lightweight at 0.15 pounds for easy handling during panel builds

Compatibility

Designed for use with 22mm pushbuttons, XB4 electrical components, and ZB4B pushbutton bodies as stated by the manufacturer.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements and local codes. De-energize and lock out the control panel before removing or installing any pushbutton components. Verify that the BA 9s lamp voltage rating matches the control circuit voltage before completing the assembly. Ensure the ZB4B body and collar are fully seated and secured before restoring power.
