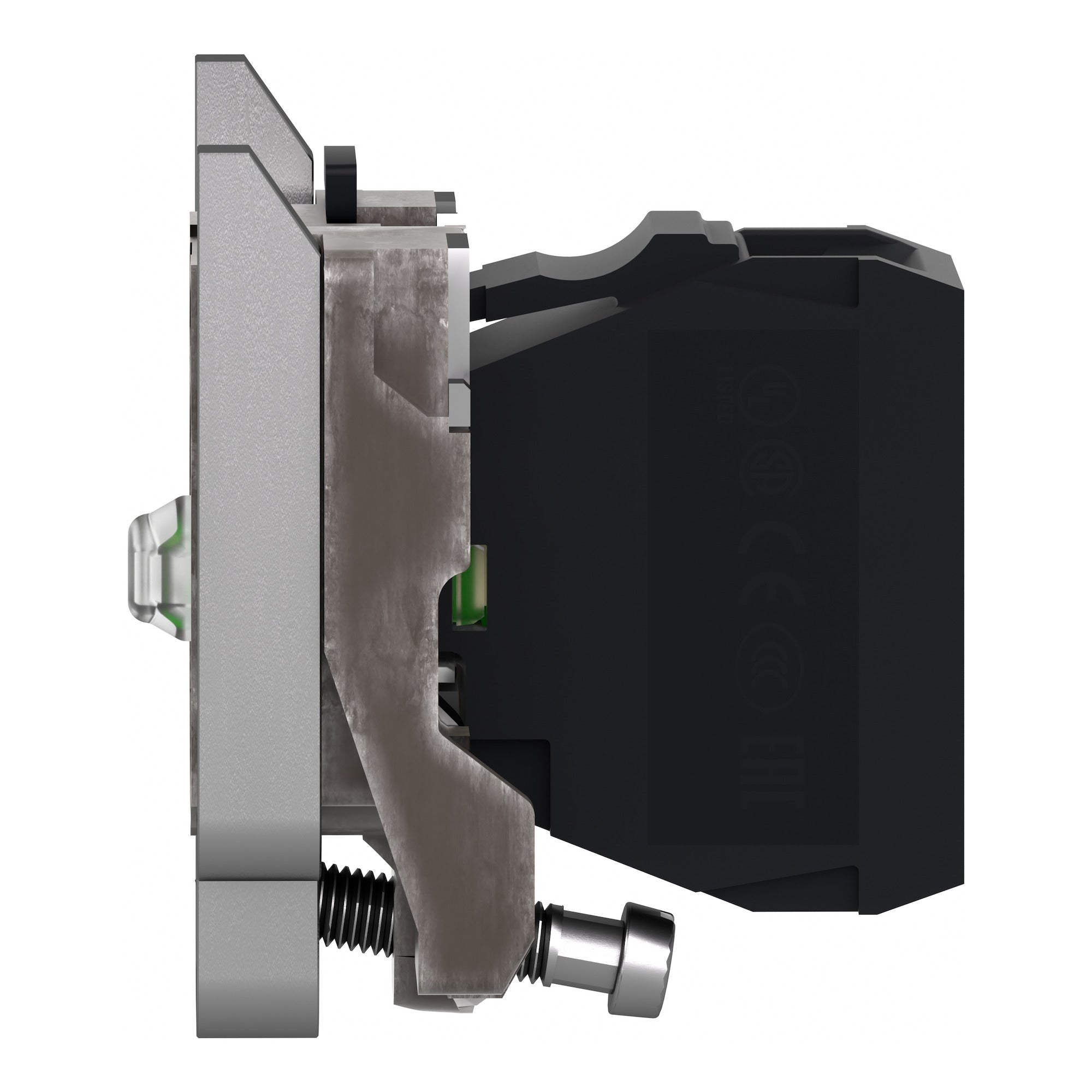

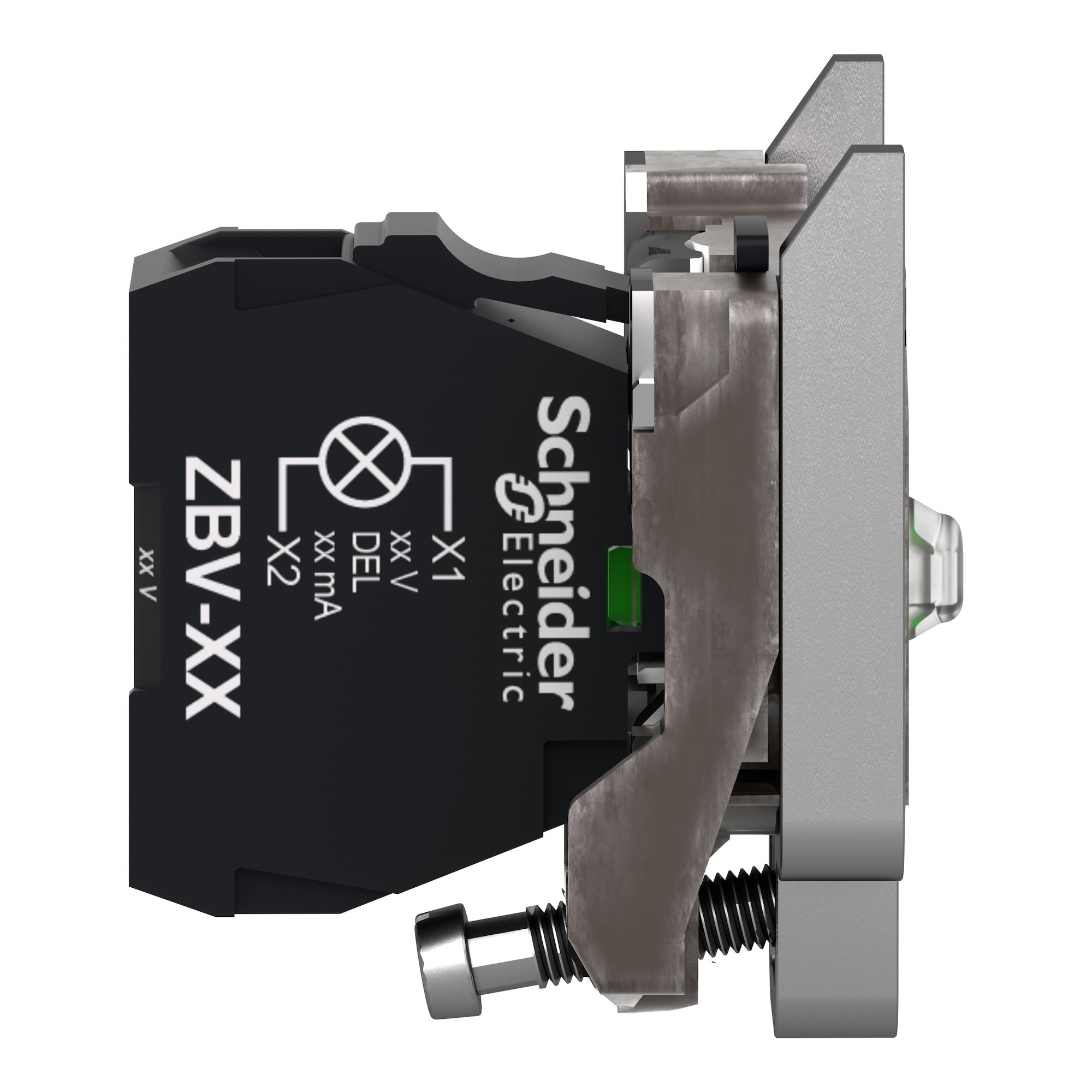

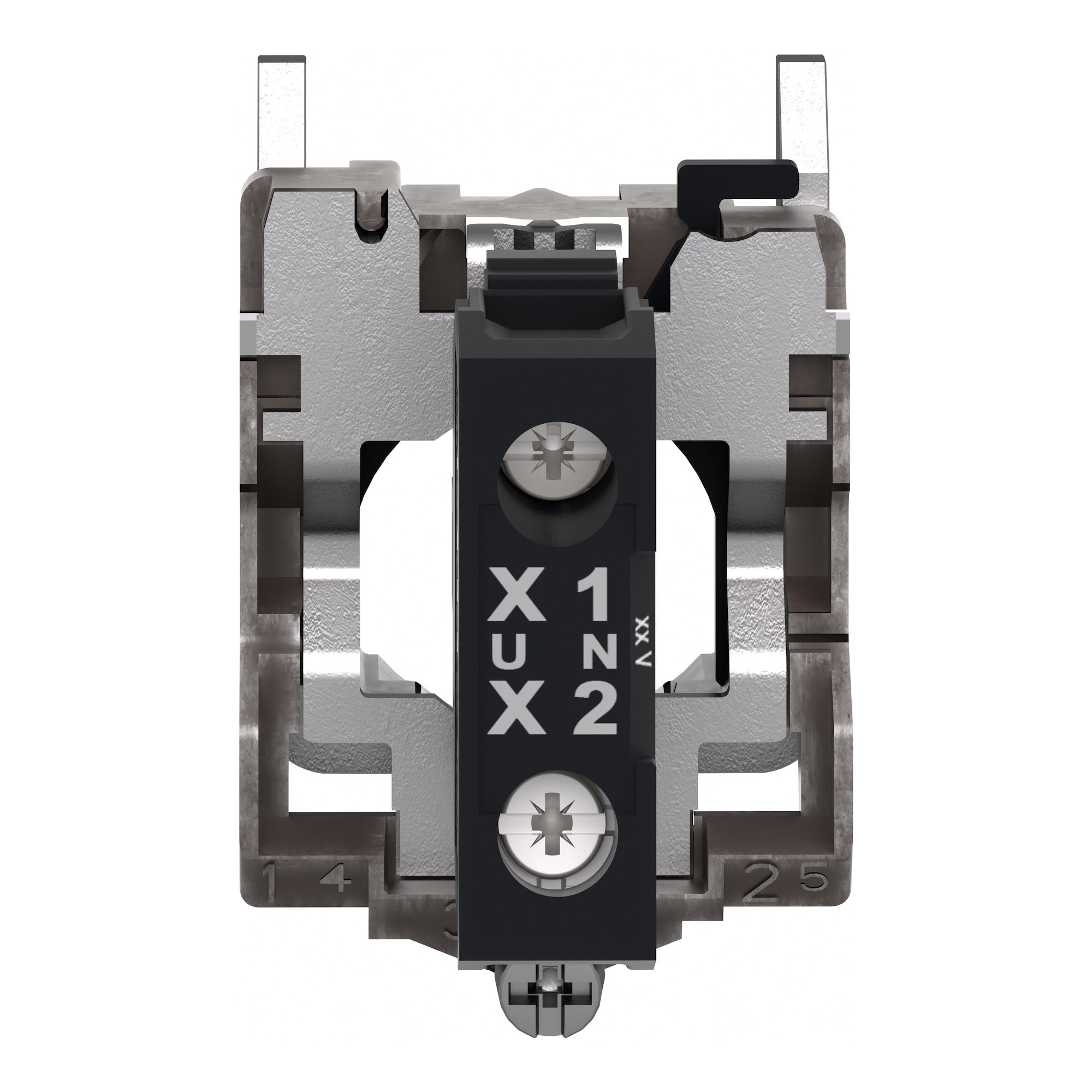

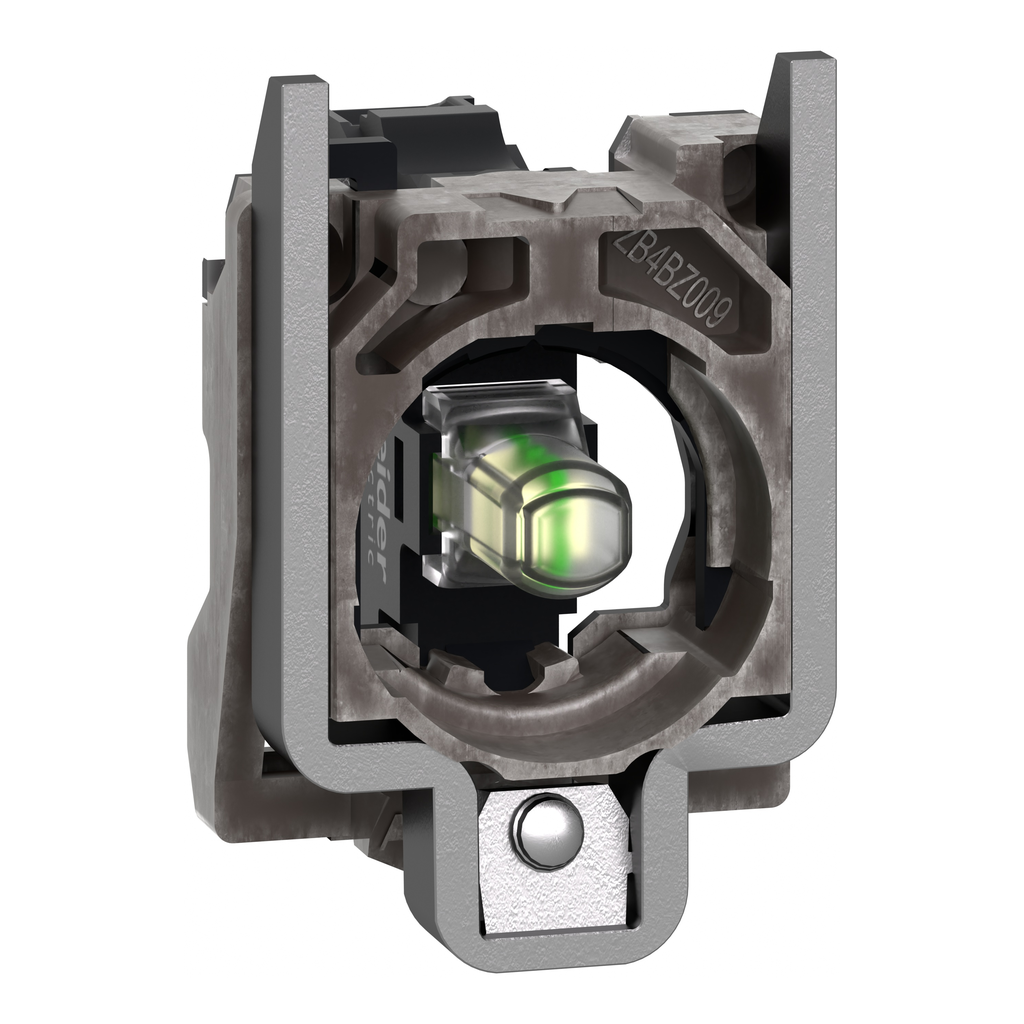

Schneider Electric ZB4BVG1 Complete Body Light Block Assembly 110 to 120 VAC

Product Description

The Schneider Electric ZB4BVG1 is a complete body light block assembly designed to operate at a voltage range of one hundred ten to one hundred twenty volts AC. This module is part of the Harmony XB4 series, featuring a white body with a universal LED for consistent illumination. The module has a metal body that enhances durability and ensures compatibility with Harmony XB4 pilot lights. The easy installation process involves a clip-together assembly and screw-clamp connections, allowing for quick replacements of signaling units.

• Voltage Rating: 110 to 120 VAC
• Type: Complete body/light block assembly
• IP20 protection index for operator safety

Product Highlights

This light block supports versatility with a wide operating temperature range from negative twenty-five to seventy degrees Celsius, making it suitable for various environments.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square D / Schneider

Technical Specifications

• Catalog Number: ZB4BVG1
• Color: White
• Height: 47 mm
• Width: 30 mm
• Weight: 0.12 lb
• Current Consumption: 14 mA
• Operating Temperature: -25 to +70 degrees C
• Certifications: UL Listed, CSA Certified
