Schneider Electric ZB4BVB1 Complete Body Light Block Assembly 24 VAC/VDC

Product Description

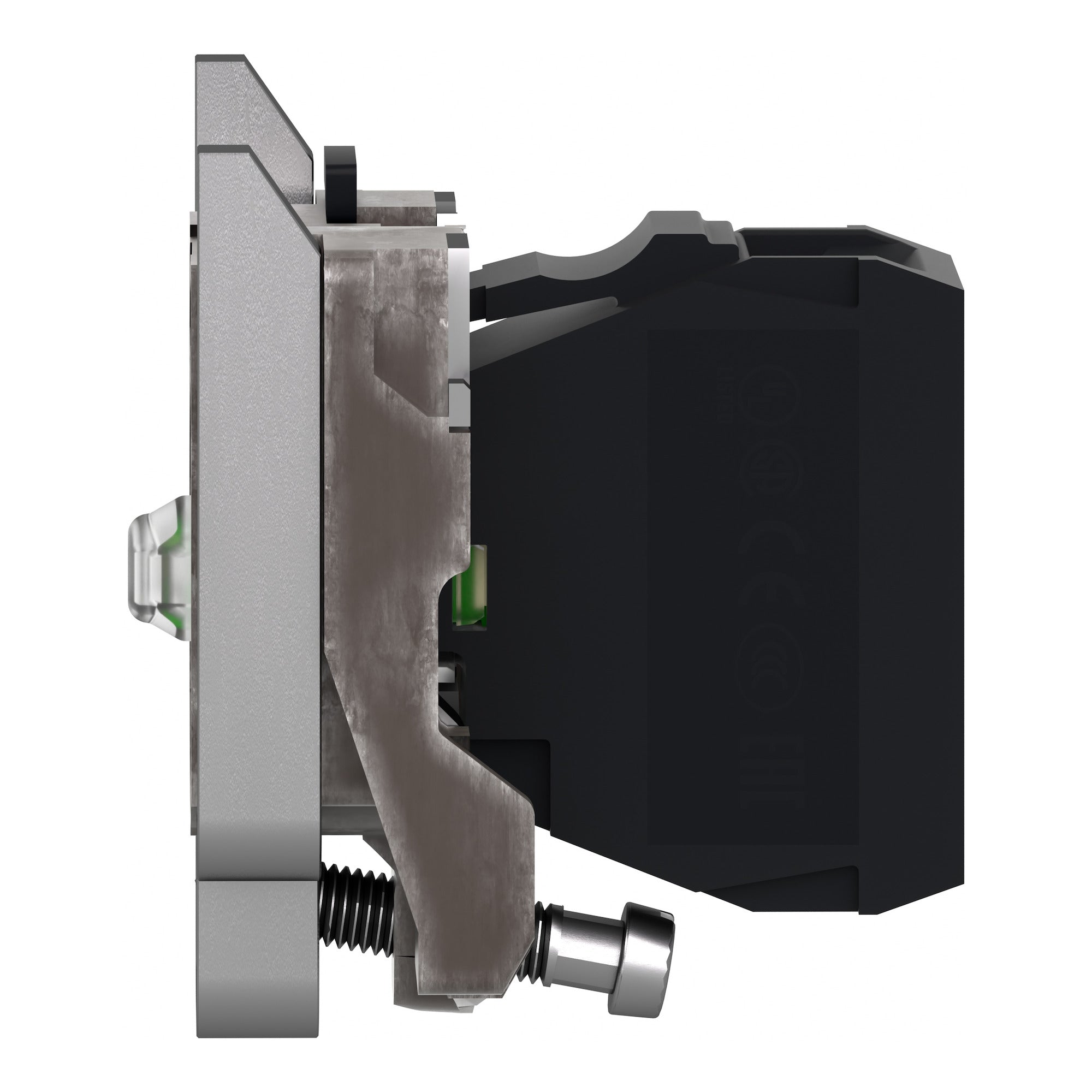

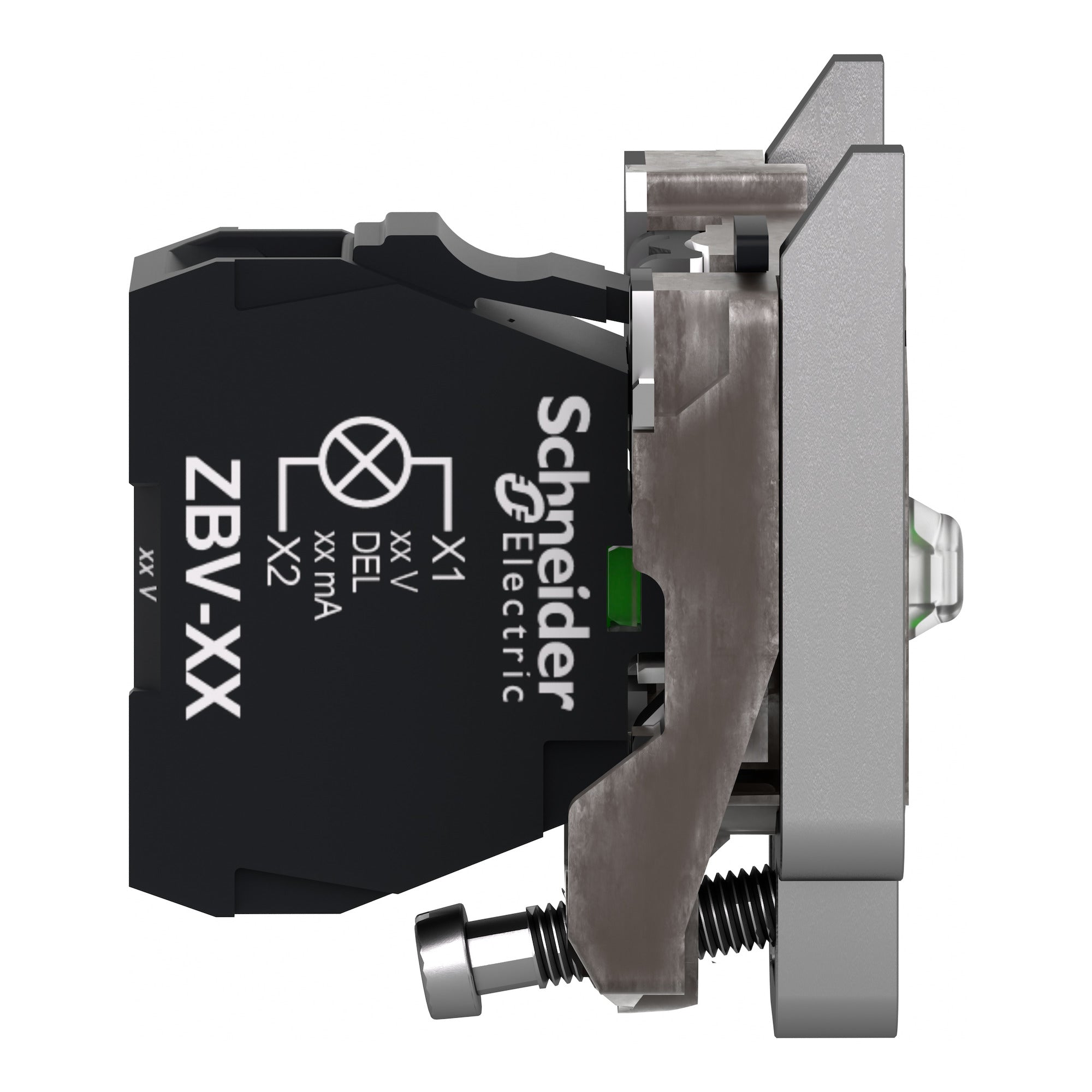

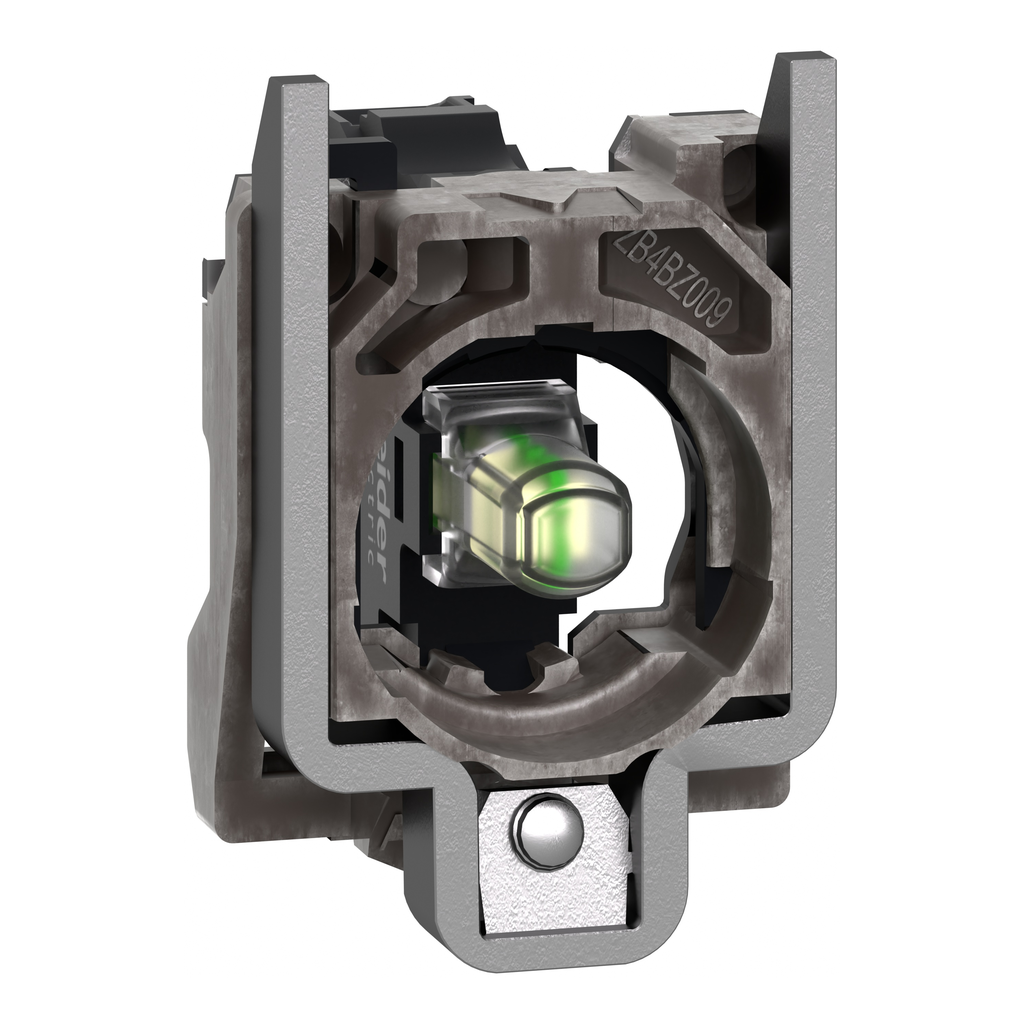

The Schneider Electric ZB4BVB1 is a complete body light block assembly designed for use with Harmony XB4 pilot lights. This unit operates at both twenty-four volts alternating current and direct current. It features a universal LED for efficient signaling. The assembly is constructed with a metal body and is compatible with standard twenty-two millimeter control and signaling units, which ensures easy installation in existing machinery. Installation is straightforward with a clip together assembly method and screw-clamp connections, allowing for quick replacement and configuration of signaling units.

• IP20 protection index safeguards operators from accidental contact with live circuits.
• Wide operating temperature range from negative forty degrees Celsius to positive fifty-five degrees Celsius enhances versatility.
• Designed for compatibility with existing installations, ensuring quick upgrade solutions.

Product Highlights

This product allows for efficient visual indication through illumination by universal LED, enhancing operational awareness.

Product Information

Standard Information

• Catalog Number: ZB4BVB1
• Brand: Schneider Electric

Technical Specifications

• Size: 22MM ROUND
• Type: Complete body/light block assembly
• Color: White
• Width: 30 mm
• Height: 47 mm
• Weight: 0.12 lb
• Current: 18 mA
• Voltage: 24 VAC/VDC
