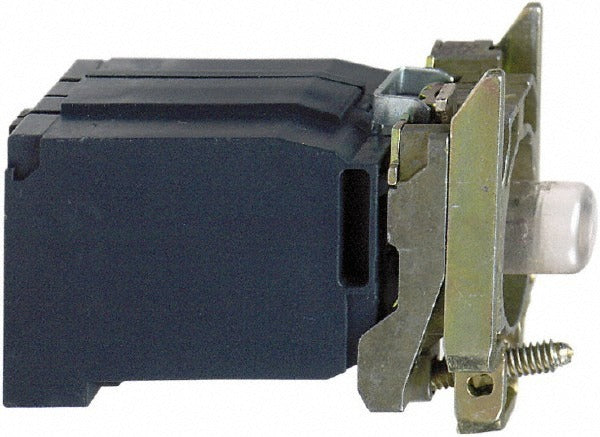

Schneider Electric ZB4BV8 Incandescent Indicating Light

Product Description

The SCHNEIDER ELECTRIC ZB4BV8 is an incandescent indicating light designed for use in industrial control panel and machine operator interface applications. Rated for 440-480 VAC at 50/60 Hz, this pilot light uses a screw connector termination for secure wiring in demanding electrical enclosure environments. The unit is built to withstand mechanical stress, carrying both shock-resistant and vibration-resistant ratings per IEC 60068-2-27 and IEC 60068-2-6. It measures 3.2 inches in length, 1.7 inches in width, and 1.3 inches in height, and weighs 0.28 pounds. Licensed electricians and panel builders typically source this component for high-voltage indication duties on industrial machinery and control stations.

The ZB4BV8 is suited for industrial and commercial control panel installations where reliable visual status indication is required at 440-480 VAC. Its screw connector design supports straightforward field wiring and replacement in existing Harmony XB4 series pushbutton and pilot light assemblies. The shock and vibration resistance ratings make it appropriate for machine tool, marine, and heavy-duty industrial environments where panel-mounted components are exposed to continuous mechanical stress.

Key Features

• Rated 440-480 VAC at 50/60 Hz for high-voltage panel indication
• Incandescent lamp type for straightforward replacement and wide-angle visibility
• Screw connector termination for secure, tool-assisted field wiring
• Shock-resistant and vibration-resistant construction per IEC 60068-2-27 and IEC 60068-2-6
• Certified to UL 508, CSA C22.2 No. 14, EN/IEC 60947-5-1, and multiple international standards including DNV, GL, Bureau Veritas, and RINA

Compatibility

Designed as an OEM-style replacement or supplemental pilot light component for industrial control panels and operator interface stations requiring 440-480 VAC incandescent indication with screw connector termination.

Installation Notes

Installation should be performed by a qualified electrician in accordance with NEC requirements and applicable local codes. Disconnect and lock out all power to the control panel before removing or installing the indicating light. Screw connector terminals should be tightened to the connector manufacturer specification using an appropriate flat-blade screwdriver. Verify voltage rating compatibility with the panel supply before energizing.
