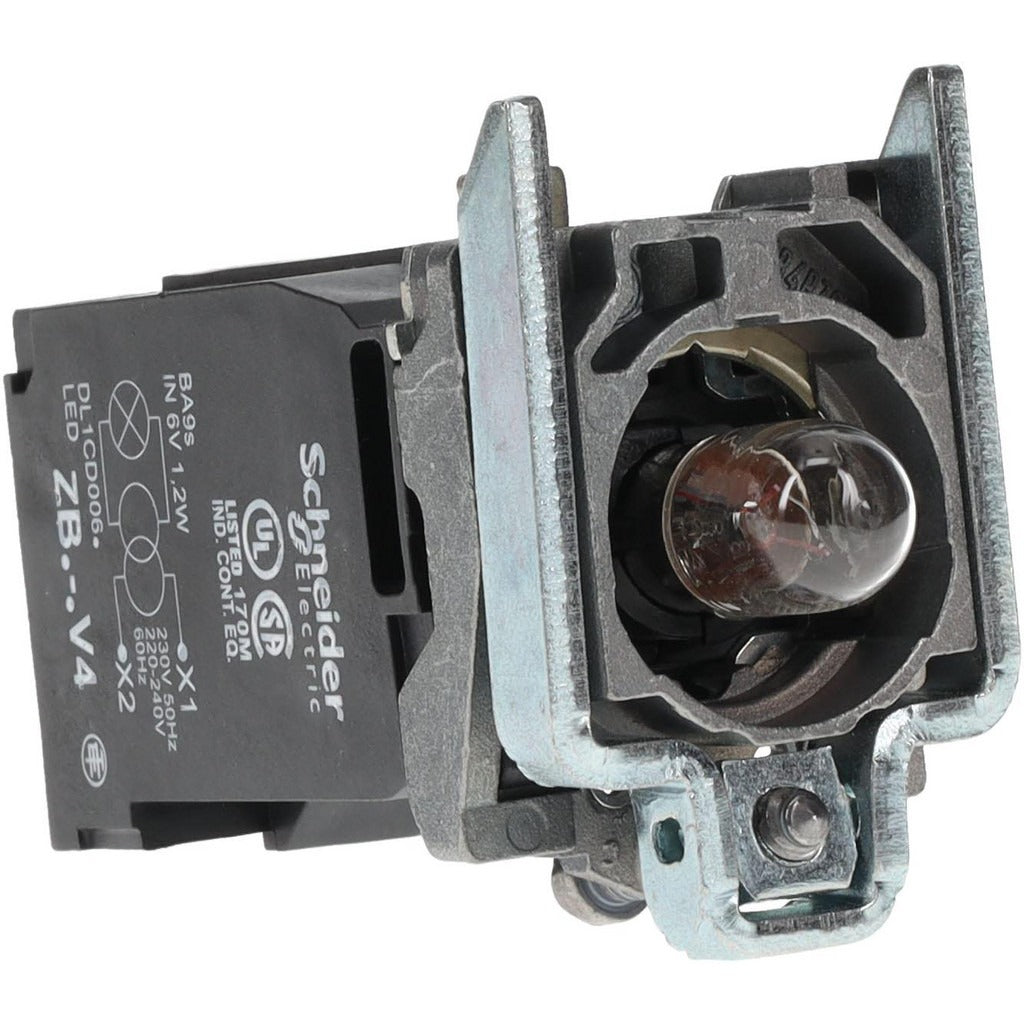

Schneider Electric ZB4BV4 Incandescent Indicating Light

Product Description

The SCHNEIDER ELECTRIC ZB4BV4 is an incandescent indicating light designed for use in industrial control panels and machinery. Operating at 230-240 volts AC at 50/60 Hz, this pilot light provides a reliable visual indication of circuit status. It connects via a screw-type terminal for a secure electrical connection. The unit is built to withstand demanding environments, meeting shock resistance and vibration resistance requirements per IEC 60068-2-27 and IEC 60068-2-6. It weighs 0.29 pounds and measures 3.2 inches in length, 1.7 inches in width, and 1.3 inches in height. Licensed electricians and panel builders are the primary installers of this component.

The ZB4BV4 is suited for use in industrial and commercial control panel applications where a durable, standards-compliant pilot light is required. It is commonly installed in machine control enclosures, motor control centers, and automation panels operating on 230-240 volt AC systems at 50 or 60 Hz. The screw connector termination makes it compatible with standard panel wiring practices across a wide range of industrial equipment.

Key Features

• Incandescent lamp type provides straightforward visual indication of circuit status
• Screw connector electrical connection for secure, tool-accessible termination
• Rated for 230-240 volts AC at 50/60 Hz for broad international utility
• Shock resistant and vibration resistant per IEC 60068-2-27 and IEC 60068-2-6
• Meets multiple international standards including UL 508, CSA C22.2 No. 14, and EN/IEC 60947-5-1
• Compact form factor: 3.2 inches long, 1.7 inches wide, 1.3 inches tall

Compatibility

Designed as an OEM-style replacement indicating light for industrial control panels and automation enclosures requiring a 230-240 volt AC incandescent pilot light with screw connector termination.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC and applicable local electrical codes. De-energize and lock out the control panel before removing or installing any indicating light component. Verify that the panel supply voltage matches the 230-240 volt AC rating of this device before connecting. Do not exceed the rated voltage or frequency range specified for this unit.
