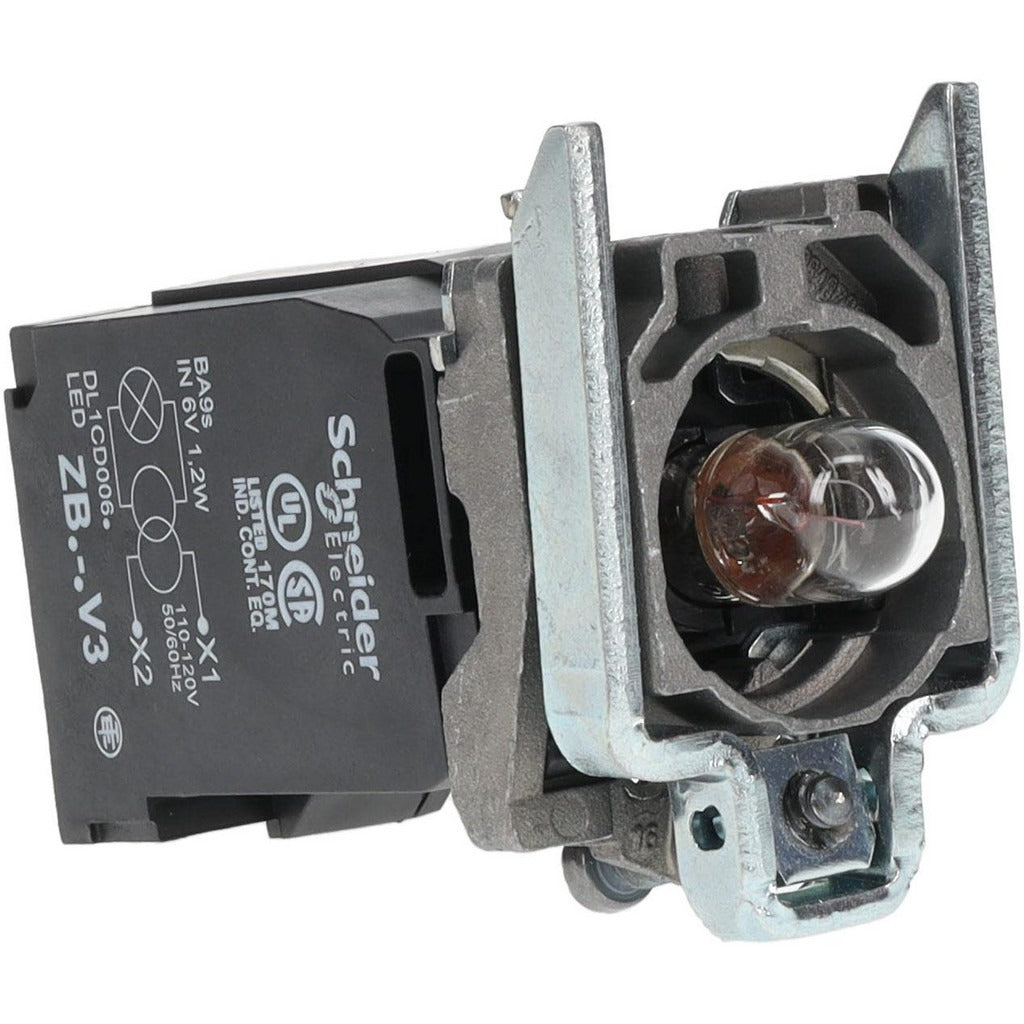

Schneider Electric ZB4BV3 Incandescent Indicating Light

Product Description

The SCHNEIDER ELECTRIC ZB4BV3 is an incandescent indicating light designed for use in industrial control panels and operator interface applications. Rated for 110-120 VAC at 50/60 Hz, it features a screw connector termination for secure wiring connections. The unit is built to withstand demanding environments, with ratings for both shock resistance and vibration resistance. At 0.1 pounds, it is a compact, lightweight component measuring 4.1 inches in length, 1.7 inches in width, and 1.3 inches in height. Electricians and panel builders install this indicator light as a status or pilot light in machine control enclosures and industrial equipment assemblies.

The ZB4BV3 is suited for use in both commercial and industrial control panel installations where a reliable AC pilot light is required. Its multi-standard certification coverage makes it appropriate for projects that must meet North American and international electrical standards. Typical installation scenarios include operator control stations, machinery panels, and process control enclosures where clear visual indication of circuit status is required.

Key Features

• Rated for 110-120 VAC at 50/60 Hz for compatibility with standard North American AC control circuits
• Screw connector termination for secure, tool-facilitated wiring connections
• Shock-resistant and vibration-resistant construction for use in demanding industrial environments
• Compact footprint: 4.1 inches long, 1.7 inches wide, 1.3 inches tall
• Meets an extensive list of international standards including UL 508, CSA C22.2 No. 14, EN/IEC 60947-5-1, and others
• Incandescent lamp type provides straightforward visual status indication

Compatibility

Designed as an OEM-style replacement or new-installation incandescent indicating light for industrial control panels and operator interface stations requiring a 110-120 VAC screw-connector pilot light.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the NEC and any applicable local codes. De-energize and lock out the control panel before installing or replacing this indicating light. Screw connector terminations should be tightened to the connector manufacturer's specification using an appropriate slotted or insulated screwdriver. Verify that the supply voltage matches the 110-120 VAC rating of the unit before energizing the circuit.
