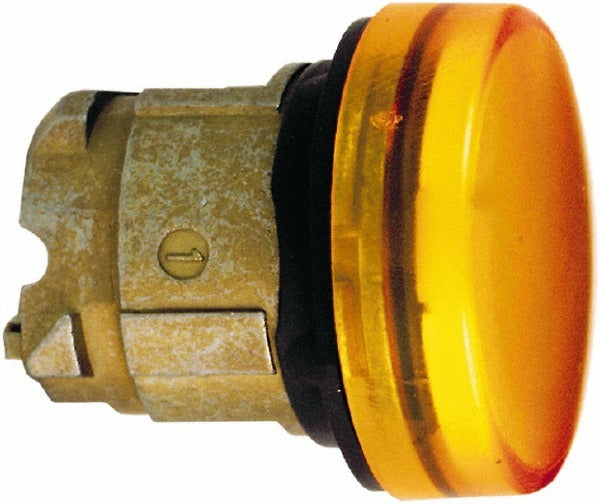

Schneider Electric ZB4BV053S Orange Led Pilot Light

Product Description

The SCHNEIDER ELECTRIC ZB4BV053S is an orange-lens LED pilot light designed for use in industrial control panels and machine operator interfaces. It uses an LED light source for long service life and low power draw. The round lens is rated for NEMA 4X environments, making it suitable for wet, dusty, and corrosive locations. The unit is also rated shock resistant and vibration resistant, which makes it a reliable indicator in harsh plant-floor conditions. Licensed electricians and panel builders typically install this device as a status indicator in control enclosures.

This pilot light is used in residential, commercial, and industrial control panel applications where a durable, high-visibility orange status indicator is required. The NEMA 4X rating suits it for outdoor enclosures, food processing environments, and washdown areas. Its compact round-lens profile fits standard 22 mm pilot light cutouts commonly found in operator stations and machine control panels. It ships as a single unit and is suitable for direct panel mounting.

Key Features

• Orange round lens for high-visibility status indication
• LED lamp type for extended service life and reduced maintenance
• NEMA 4X rated for wet, dusty, and corrosive environments
• Shock resistant and vibration resistant construction
• Meets CSA, UL 508, IEC, and JIS standards for broad application compliance
• Compact form factor at 1.5 inches wide by 2 inches in length

Compatibility

Designed as an OEM-style replacement or new-installation LED pilot light for industrial control panels and operator interface stations using standard 22 mm pilot light form factor enclosures.

Installation Notes

Installation should be performed by a qualified electrician in accordance with NEC guidelines and applicable local codes. De-energize the control panel completely before installing or replacing the pilot light. Ensure the panel cutout and mounting hardware match the lens and body dimensions before tightening. Verify supply voltage compatibility before energizing the circuit.
