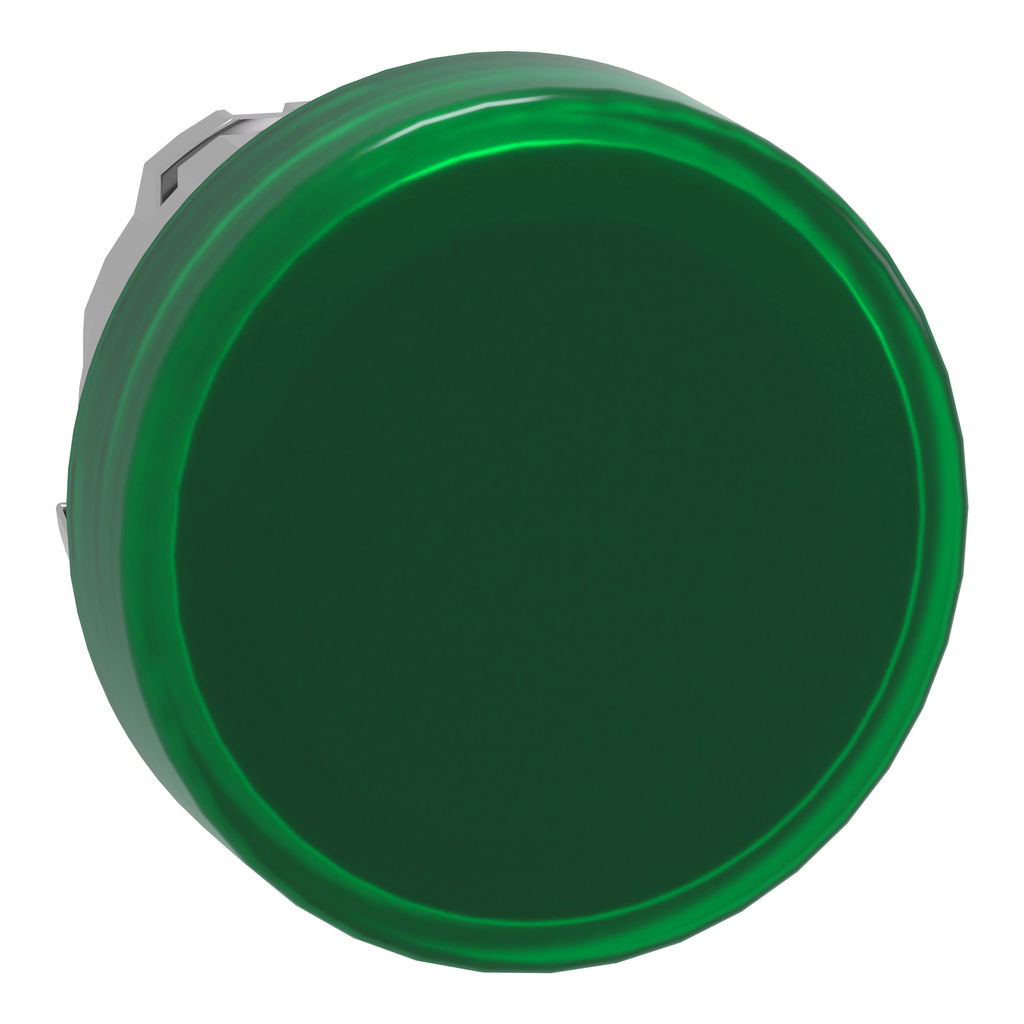

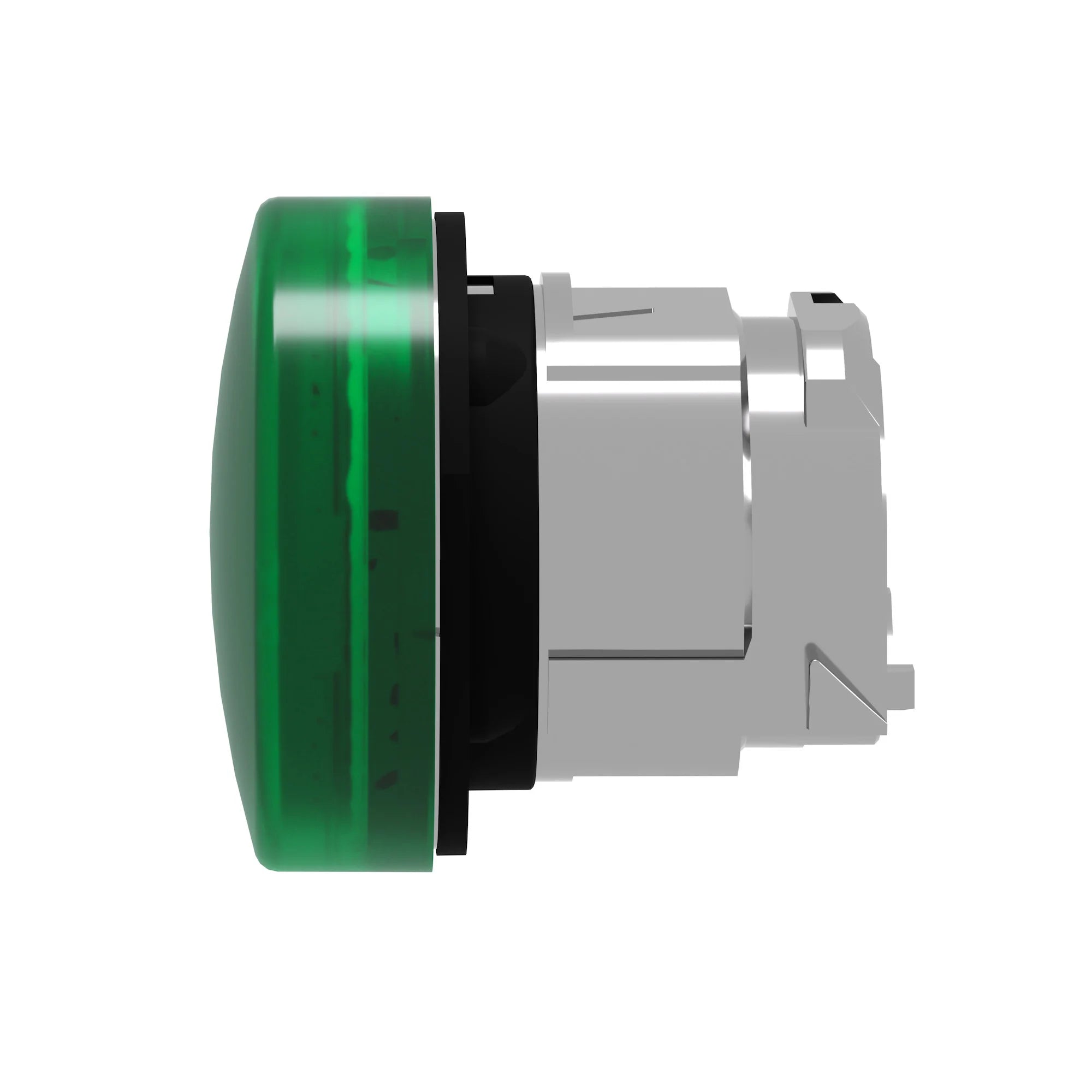

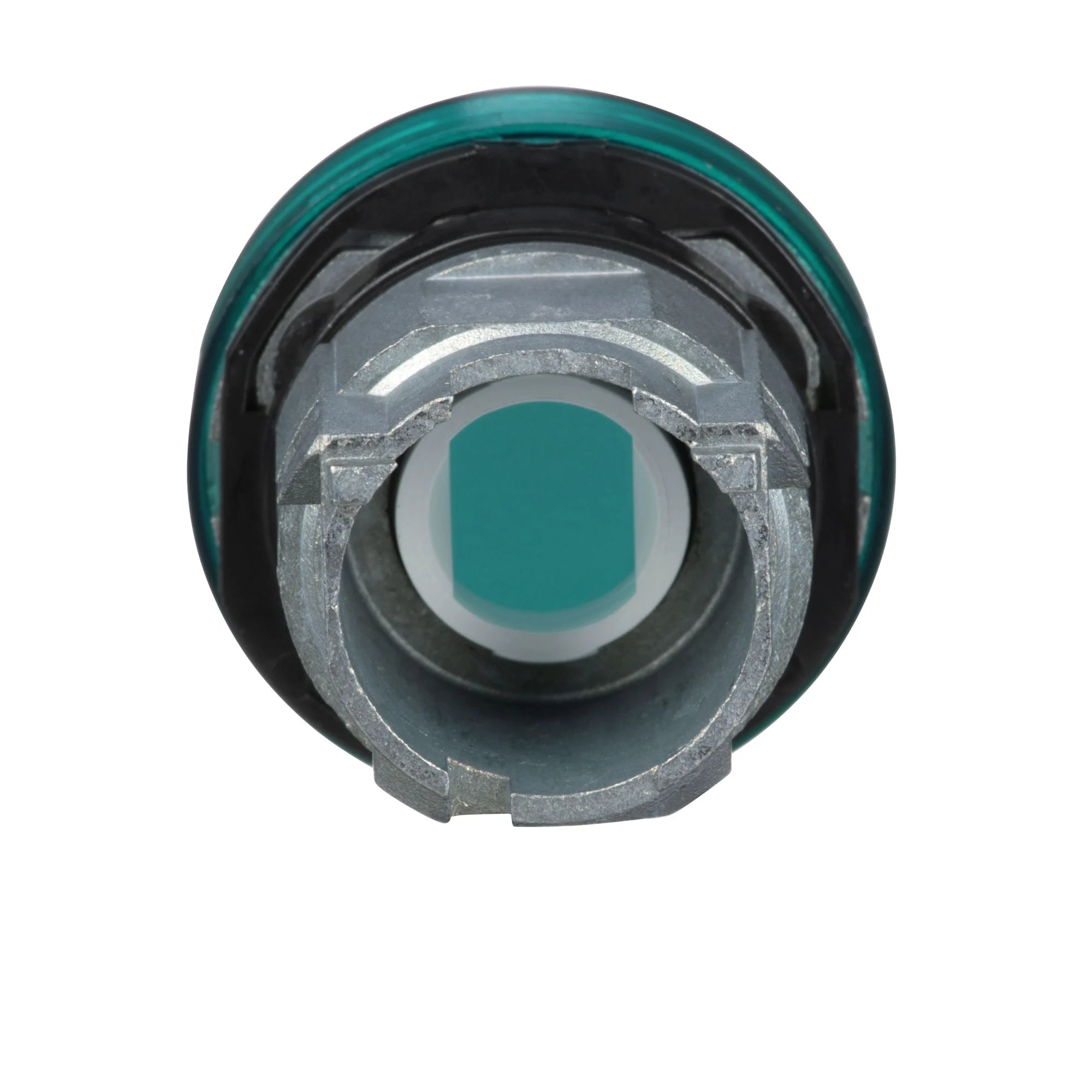

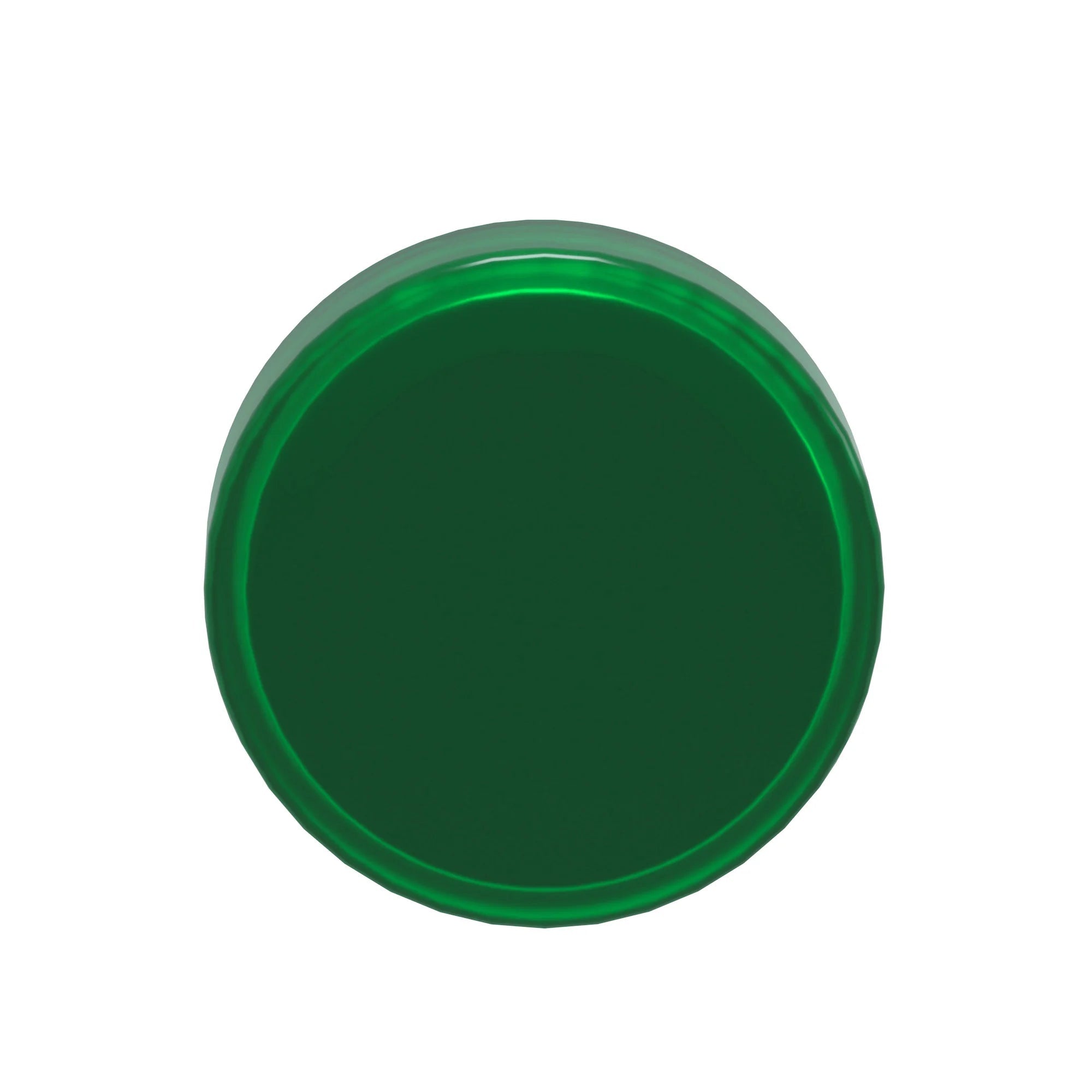

Schneider Electric ZB4BV033 Head for Pilot Light 22 mm Green Round Pilot Light Head

Product Description

Schneider Electric offers the ZB4BV033 head for pilot light. This model features a round and green design, specifically built for 22 mm applications. The ZB4BV033 ensures visibility for process and machine operations.

• Impact, dust, vibration, and water resistant with a rating of IP66
• Compatible with standard 22 mm cutouts for easy installation
• Wide operating temperature range from negative forty to seventy degrees Celsius

Product Highlights

Designed for machine manufacturers in various sectors, this head is ideal for applications exposed to harsh conditions.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: ZB4BV033
• Color: Green
• Type: Head for pilot light
• Width: 29 mm
• Height: 29 mm
• Weight: 0.06 lb
• Approval: UL 508, CSA C22.2
• Environmental Conditions: IP 66
• Warranty Description: 18 months
