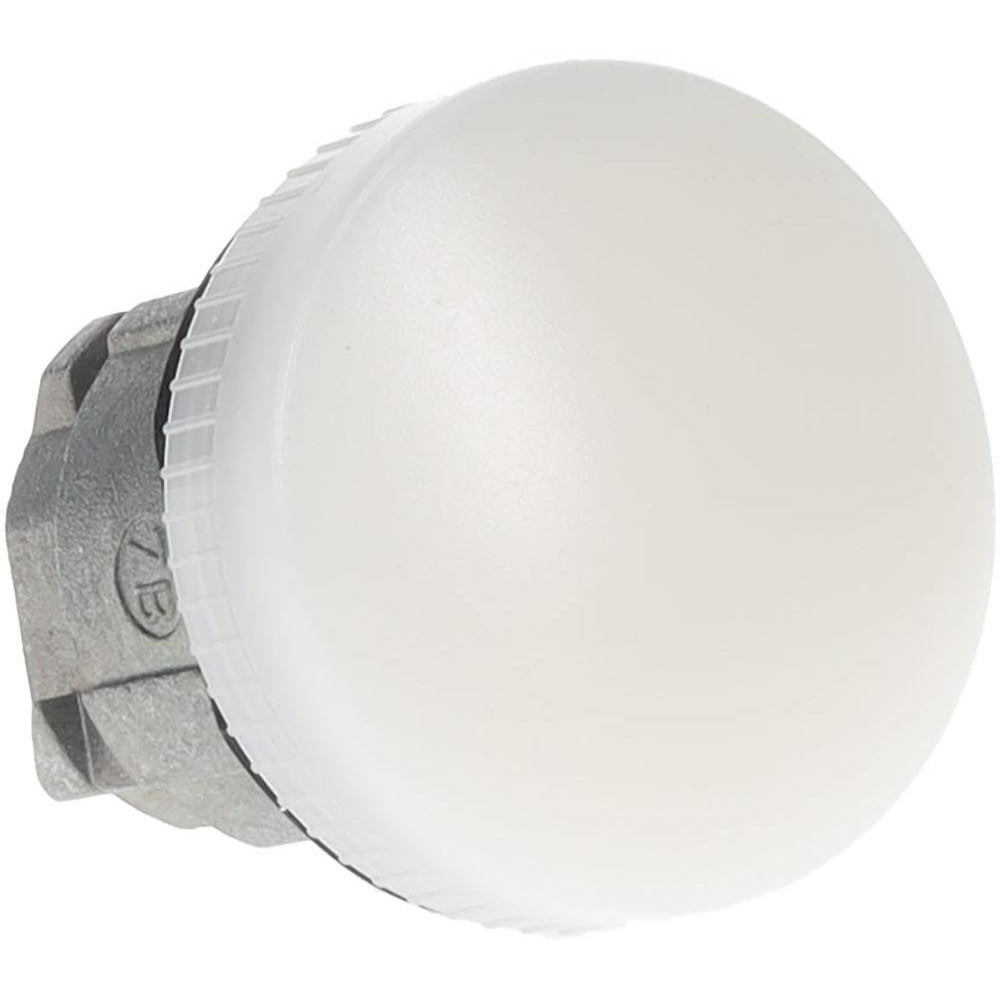

Schneider Electric ZB4BV01 White Round Lens Pilot Light

Product Description

The SCHNEIDER ELECTRIC ZB4BV01 is a white, round-lens pilot light designed for use in industrial control panels and machine operator interfaces. It provides a clear visual indicator of equipment status and is built to withstand the demands of harsh industrial environments. The ZB4BV01 features shock-resistant, vibration-resistant, and water-resistant construction, making it suitable for locations where conventional indicator lights may fail. Rated to NEMA 4X and meeting UL 508 standards, this pilot light is a reliable replacement component for control panel builds and service calls. It is installed by licensed electricians and industrial control panel technicians.

The ZB4BV01 fits a standard 22mm panel cutout, which is one of the most common mounting formats in industrial and commercial electrical control panels. It is suited for use in manufacturing, process control, HVAC mechanical rooms, and other environments where operator interface devices are mounted in enclosures. The round white lens provides high visibility for machine status indication across a wide range of lighting conditions. This unit ships individually and is intended as a direct replacement or new-build component in 22mm pilot light assemblies.

Key Features

• White round lens for clear, high-contrast status indication
• 22mm panel cutout diameter fits the most widely used industrial operator interface format
• Shock-resistant and vibration-resistant construction for demanding environments
• Water-resistant design rated to NEMA 4X
• Meets UL 508, CSA C22.2 No. 14, EN/IEC 60947-5-1, and multiple IEC standards
• Compact form factor at 1.3 inches in all dimensions

Compatibility

Designed as an OEM-style replacement or new-build component for 22mm pilot light assemblies in industrial and commercial control panel applications.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the NEC and applicable local codes. De-energize the control panel and follow lockout/tagout procedures before removing or installing any pilot light component. Ensure the panel cutout diameter matches 22mm before mounting. Verify enclosure rating compatibility when installing in NEMA 4X or washdown-rated enclosures.
