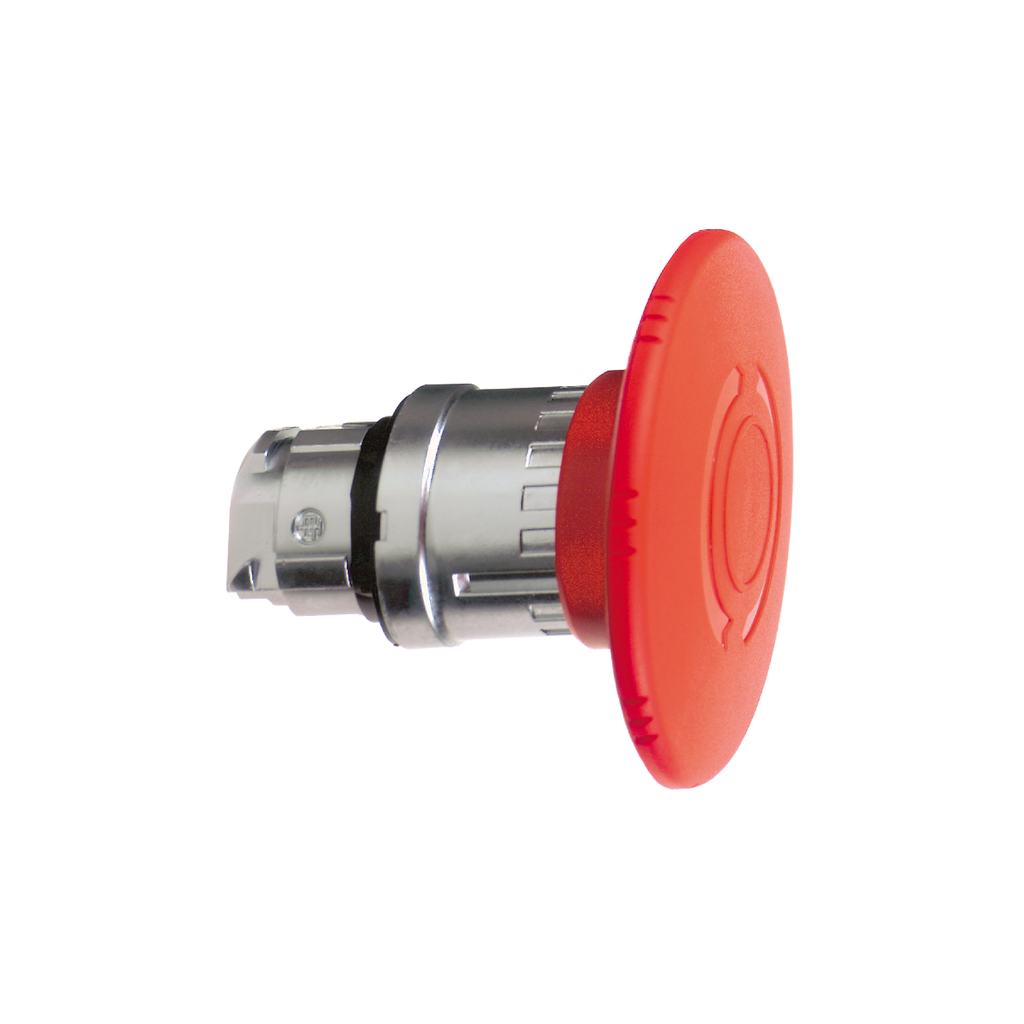

Schneider Electric ZB4BS864 Emergency Stop Head Power 60mm Replacement MPN

Product Description

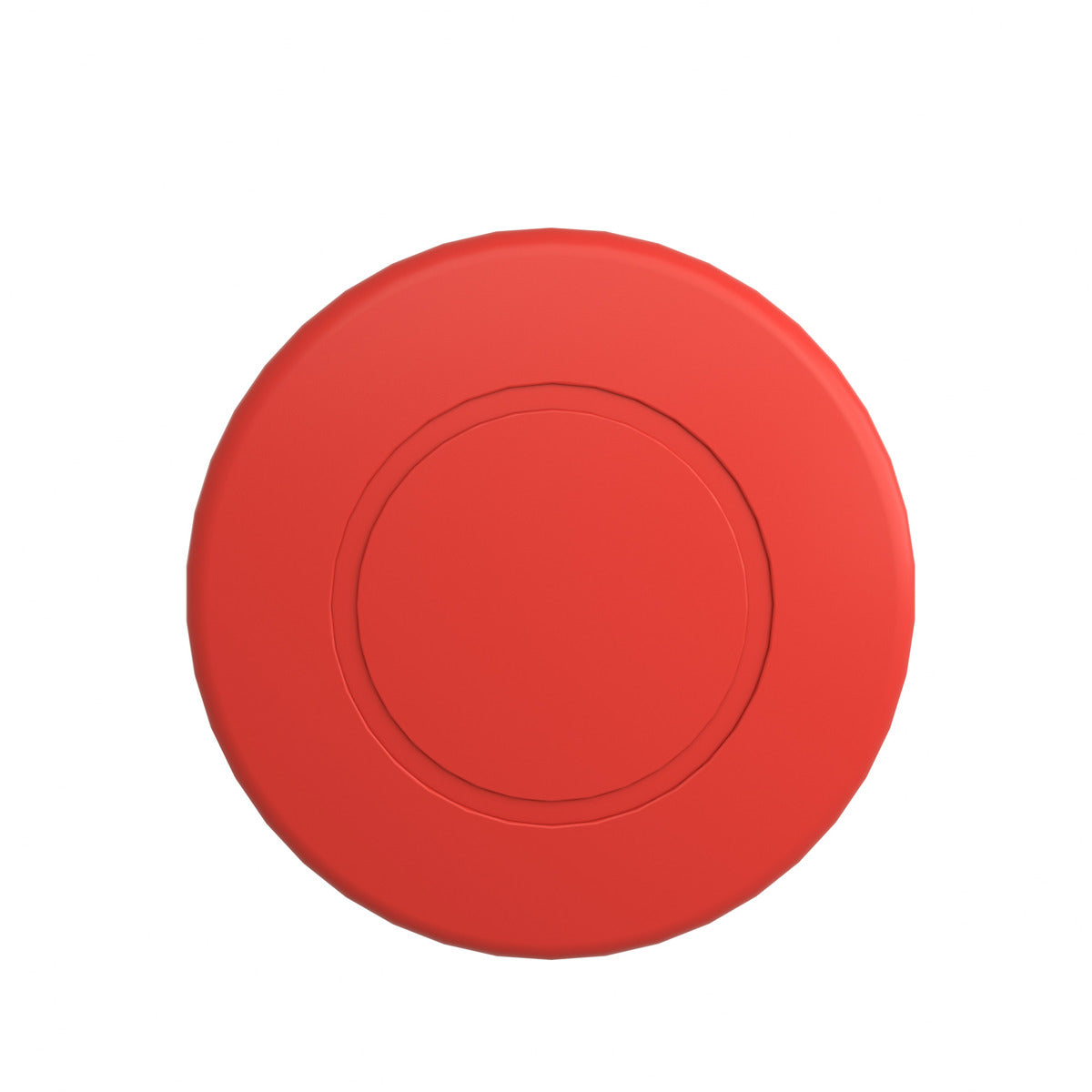

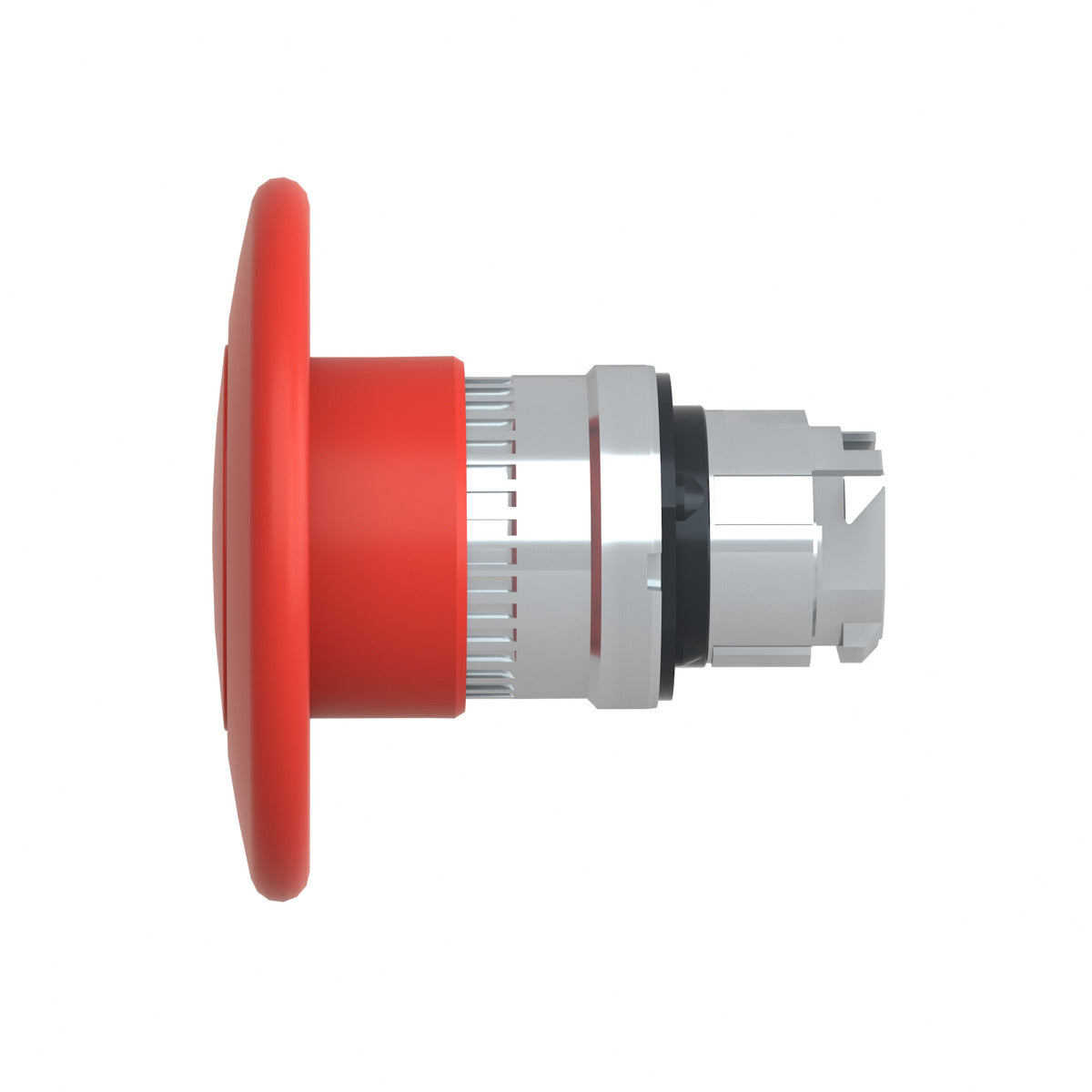

The Schneider Electric ZB4BS864 is an emergency stop head designed for controlling machinery safely. This 60mm mushroom-shaped red button works with a latched turn to release mechanism. Commonly known as EMS (Emergency Machine Stop) and EMO (Emergency Off), it provides an intuitive interface for machine control. This device installs easily on compatible emergency stop pushbuttons and is visually identifiable from a distance due to its bright color and notable size.

• Impact, dust, water, and vibration resistant with IP66 rating.
• Metal bezel for high-impact applications.
• Standard fit for 22mm cutouts in existing machinery.

Product Highlights

This switch operates reliably in a wide temperature range from minus forty degrees Celsius to seventy degrees Celsius, ensuring versatility across various environments.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Catalog Number: ZB4BS864

Technical Specifications

• Width: 60 mm
• Height: 60 mm
• Weight: 0.21 lb
• Bezel Material: Chromium Plated Metal
• Certifications: BV, CSA, DNV, GL, LROS, UL Listed
• Warranty Length: 18 months
• Country of Origin: Czech Republic
