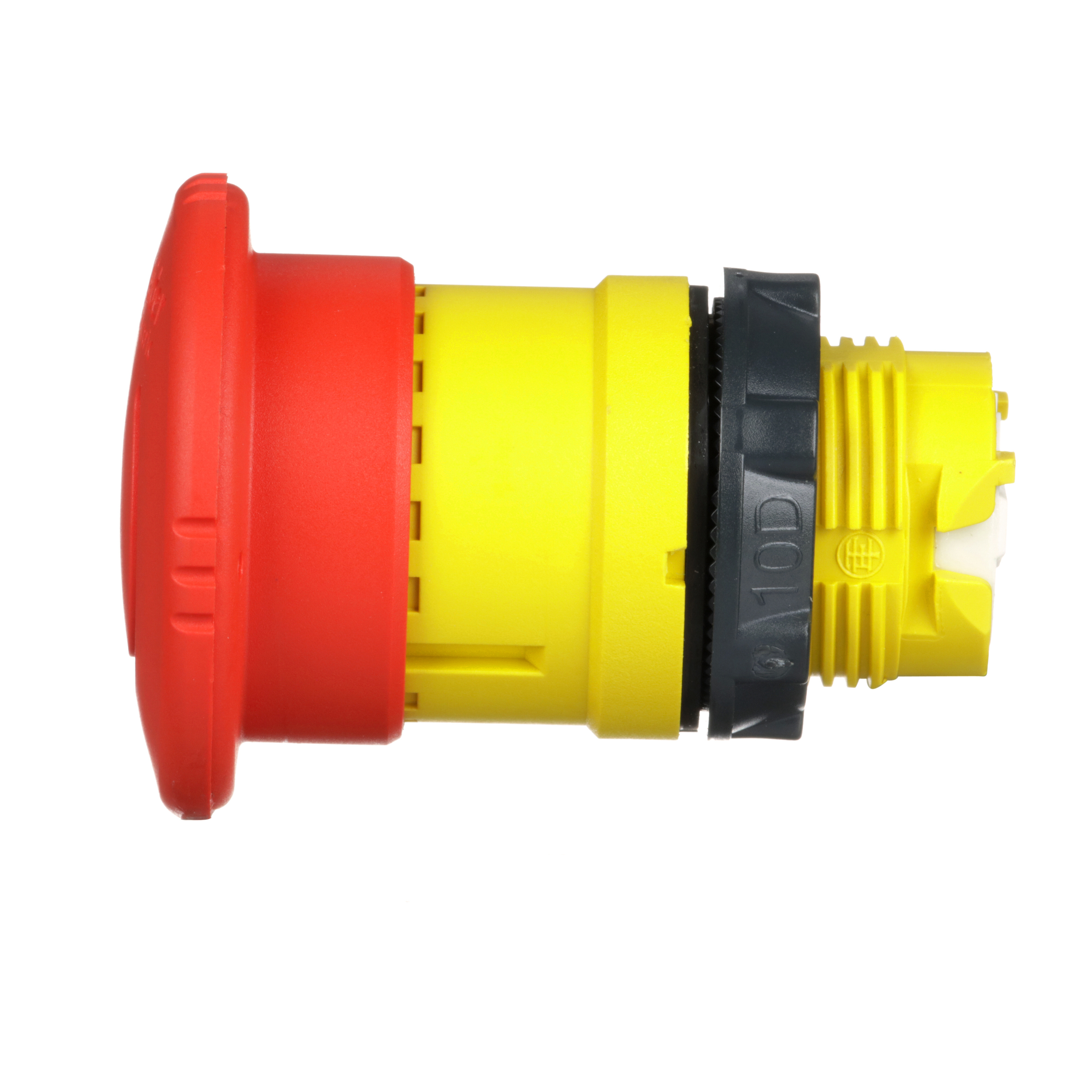

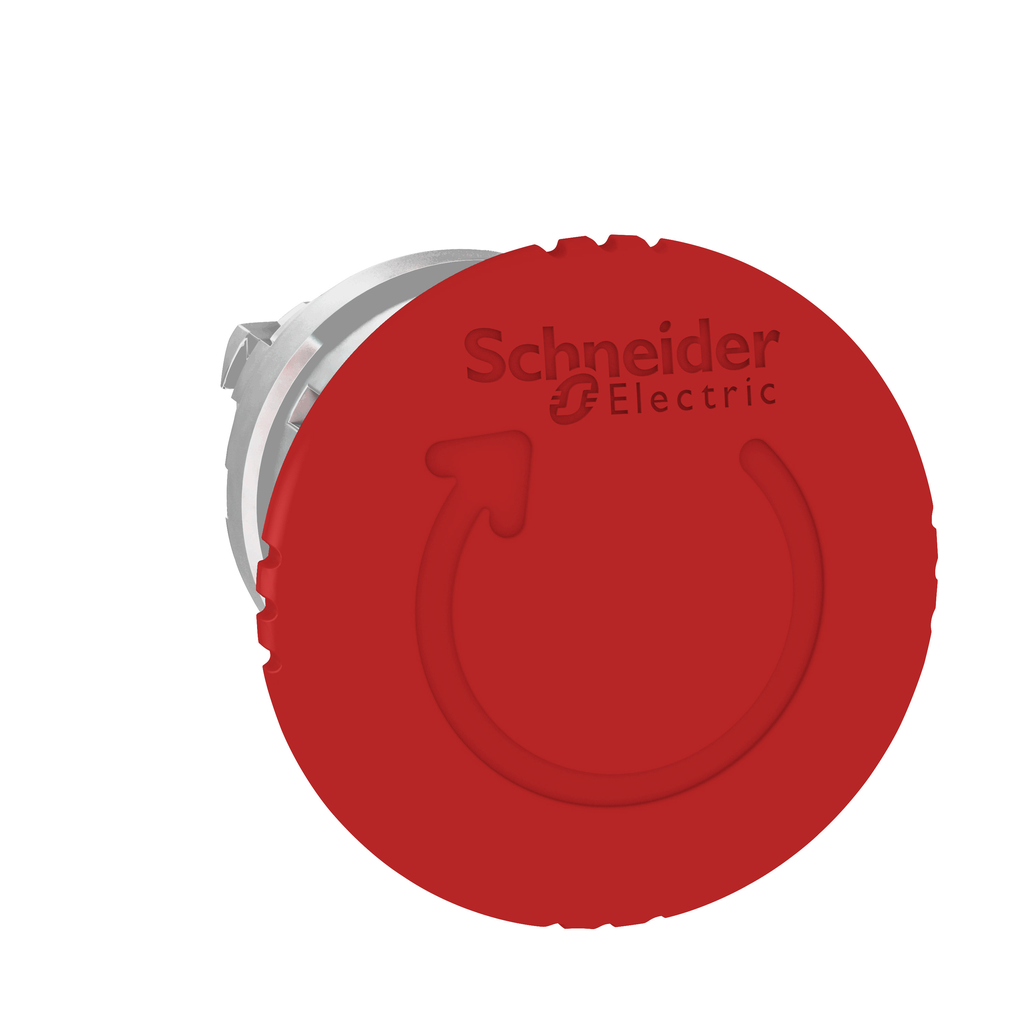

Schneider Electric ZB4BS844 Mushroom Push Button

Product Description

The Schneider Electric ZB4BS844 Mushroom Push Button is designed for industrial applications. This product features a robust design suitable for various environments, including automotive, textiles, and control panel building. The push button provides a simple setup with effective functionality for emergency shutdowns. The operator can be secured with a single screw, ensuring a reliable connection without the need for periodic retightening. The ZB4 series operates on a 22 mm profile with a chromium plated metal finish. It is compatible with a standard 22 mm cutout, allowing it to fit seamlessly into existing machinery setups.

• Integrated emergency stop function
• Compatible with high-pressure cleaning
• Certifications: UL, CE, and IP66/IP69K rated

Product Highlights

This push button meets strict industrial standards and is built for heavy-duty use.

Product Information

Standard Information

• Brand: Schneider Electric
• Catalog Number: ZB4BS844

Technical Specifications

• Size: 0.87 inches
• Weight: 0.16 lb
• Height: 40 mm
• Width: 40 mm
• Color: Red
• Actuator: Mushroom button 40mm
• Operating Temperature: -40 to 70 degrees Celsius
• Environmental Conditions: IP66/IP69K
