Schneider Electric ZB4BK1563 Selector Switch 3-position

Product Description

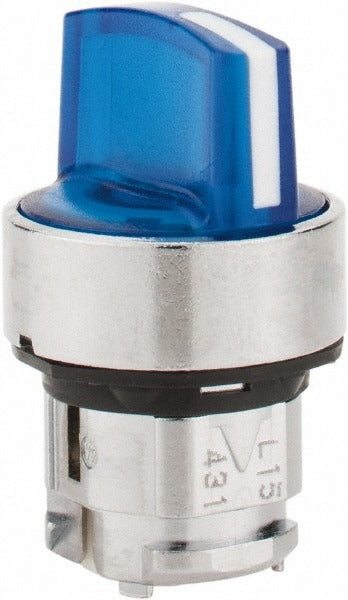

The SCHNEIDER ELECTRIC ZB4BK1563 is a 3-position momentary selector switch designed for industrial and commercial control panel applications. It features a blue handle operator mounted in a round, 22mm panel cutout with a metal bezel. The momentary (MO) action means the contacts return to center when the operator is released. With an IP69K ingress protection rating and a NEMA 13 and 4X enclosure rating, this switch resists high-pressure washdowns, dust, and corrosive environments. It is shock-resistant and vibration-resistant, making it suited for demanding service conditions. Licensed electricians and panel builders install this device as part of low-voltage control circuits.

This selector switch is used in industrial control panels, machine tool enclosures, and process equipment requiring a 3-position momentary operator. Its 22mm mounting hole fits standard 22mm cutout panels common in commercial and industrial builds. The blue illuminated handle provides clear visual identification of the operator function at the panel face. NEMA 4X and IP69K ratings qualify it for food processing, washdown, and outdoor environments where moisture and chemical exposure are regular concerns.

Key Features

• 3-position momentary (MO) operation returns contacts to center on release
• Blue illuminated handle for quick visual identification at the panel
• IP69K rating withstands high-pressure, high-temperature washdown
• NEMA 13 and 4X rated for oil-tight and corrosion-resistant enclosures
• Metal bezel with round head profile fits standard 22mm panel cutouts
• Shock-resistant and vibration-resistant construction for harsh service environments

Compatibility

Designed as an OEM-style replacement or new-installation selector switch for 22mm industrial control panels requiring a 3-position momentary operator with NEMA 4X and IP69K environmental ratings.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NFPA 70 (NEC) and applicable local codes. De-energize the control panel and verify zero voltage before removing or installing any panel-mount operator. Ensure the panel cutout is 22mm and that the mounting surface material is compatible with the metal bezel before tightening the retaining nut. Do not exceed the rated voltage or current for the contact block attached to this operator head.
