Schneider Electric ZB4BK1543 Selector Switch 3 Position

Product Description

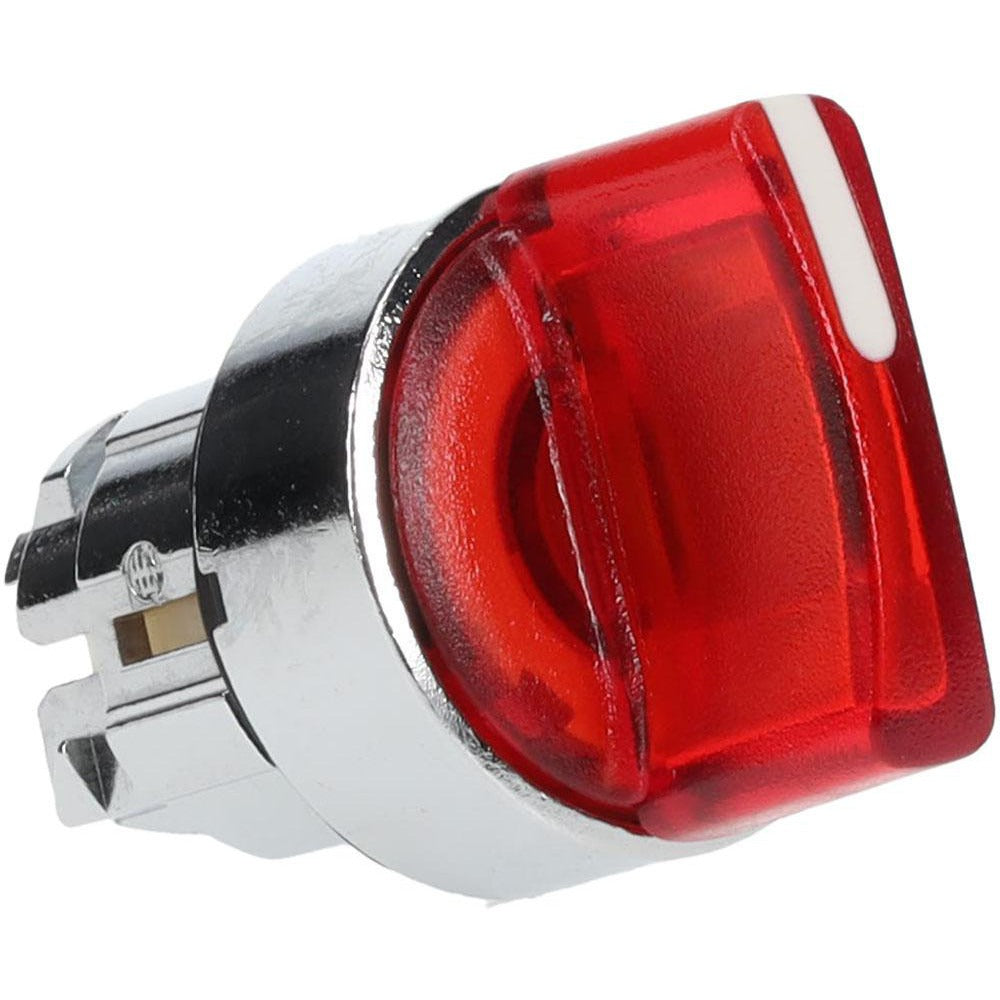

The SCHNEIDER ELECTRIC ZB4BK1543 is a three-position momentary selector switch designed for industrial control panel applications. It features a red handle operator with a round head and metal bezel, mounted through a 22mm panel cutout. The switch carries an IP69K ingress protection rating, making it suitable for environments exposed to high-pressure washdowns, moisture, and dust. It is also rated shock-resistant and vibration-resistant. Licensed electricians and industrial control panel builders install this switch as part of motor control, machine safety, or process automation circuits.

This selector switch is intended for use in demanding industrial and commercial environments where reliable momentary switching across three positions is required. Its NEMA 4X and NEMA 13 ratings make it appropriate for washdown areas, food processing facilities, chemical environments, and outdoor enclosures. The illuminated operator and metal bezel suit panel builds where visual confirmation and durability are priorities. The 22mm mounting hole is a widely used standard in industrial control panels, compatible with 22mm cutout operator assemblies.

Key Features

• Three-position momentary operation for pulse-type control signaling
• Red handle operator with round head and metal bezel construction
• IP69K ingress protection rating for high-pressure, high-temperature washdown resistance
• NEMA 13 and NEMA 4X rated for oil-tight and corrosion-resistant environments
• Shock-resistant and vibration-resistant for heavy industrial service
• 22mm panel cutout diameter aligns with standard industrial operator mounting
• Listed to UL 508 and certified to CSA C22.2 No. 14 and multiple IEC standards

Compatibility

Designed as an OEM-style component for 22mm industrial control panel operator assemblies requiring a three-position momentary selector switch with NEMA 4X and IP69K ratings.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and any applicable local codes. De-energize the control panel and verify zero voltage before removing or installing panel operators. The 22mm cutout must be clean and deburred to ensure proper sealing and maintain the IP69K rating. Do not overtighten the mounting nut, as this can deform the bezel or compromise the ingress protection seal.
