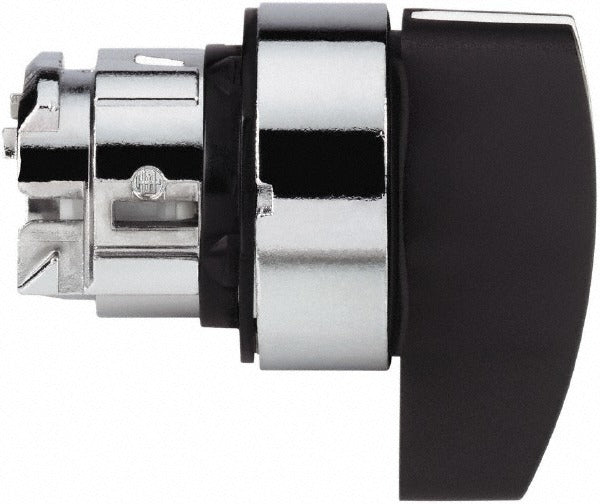

Schneider Electric ZB4BJ7 Selector Switch 22mm Nema 4X

Product Description

The SCHNEIDER ELECTRIC ZB4BJ7 is a 3-position momentary selector switch operator designed for industrial control panel applications. It features a round, non-illuminated black handle with a metal bezel and mounts through a 22 mm panel cutout. The momentary (MO) operation means the switch returns to center when released, making it appropriate for jog, inch, or momentary-command functions. The unit carries an IP69K ingress protection rating and NEMA 13 and 4X enclosure ratings, providing resistance to water jets, dust, and washdown conditions. It is shock-resistant and vibration-resistant, suited for demanding industrial environments. Licensed electricians and industrial control technicians are the typical installers.

The ZB4BJ7 is used in industrial and commercial control panels where a 3-position momentary selector is required. Typical applications include machine tool controls, conveyor systems, process equipment, and other applications requiring a center-return, momentary-contact operator. The 22 mm mounting footprint is a widely used standard in the Harmony XB4 operator family. It is suitable for both indoor and outdoor installations where NEMA 4X or IP69K protection is needed, including food processing and washdown environments.

Key Features

• 3-position momentary (MO) operation with automatic return to center when released
• 22 mm round panel cutout mounting
• IP69K rated — resistant to high-pressure, high-temperature washdown
• NEMA 13 and 4X rated for dust-tight and corrosion-resistant installations
• Metal bezel construction with shock-resistant and vibration-resistant design
• Non-illuminated black handle operator
• Certified to UL 508, CSA C22.2 No. 14, EN/IEC 60947-5-1, and multiple international standards

Compatibility

Designed as an OEM-style 22 mm selector switch operator compatible with Harmony XB4 series control station bodies and contact blocks requiring a 3-position momentary operator head.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the control panel before removing or installing any switch operator. The 22 mm panel cutout should be verified to be clean and free of burrs before mounting to ensure proper sealing and IP69K performance. Do not overtighten the mounting nut, as this may damage the bezel or compromise the ingress protection seal.
