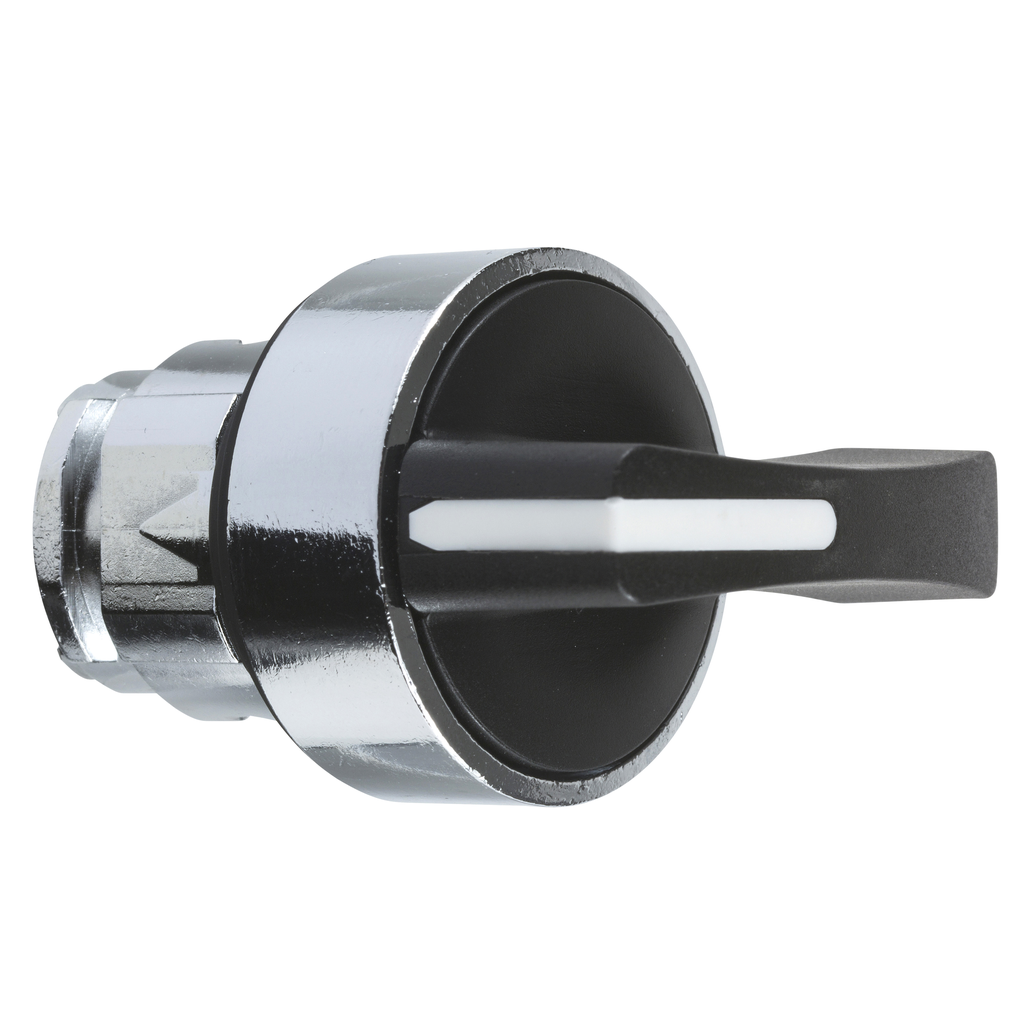

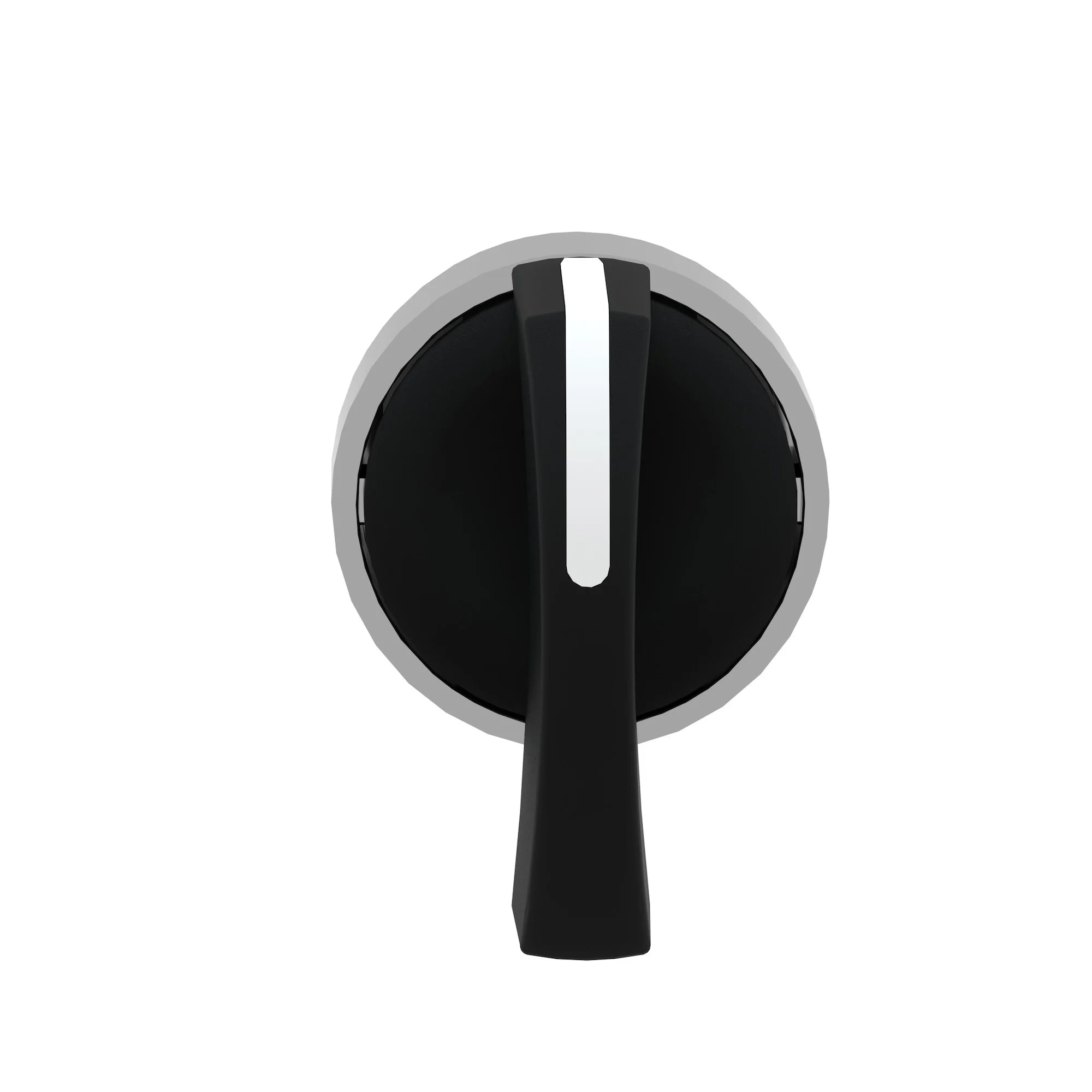

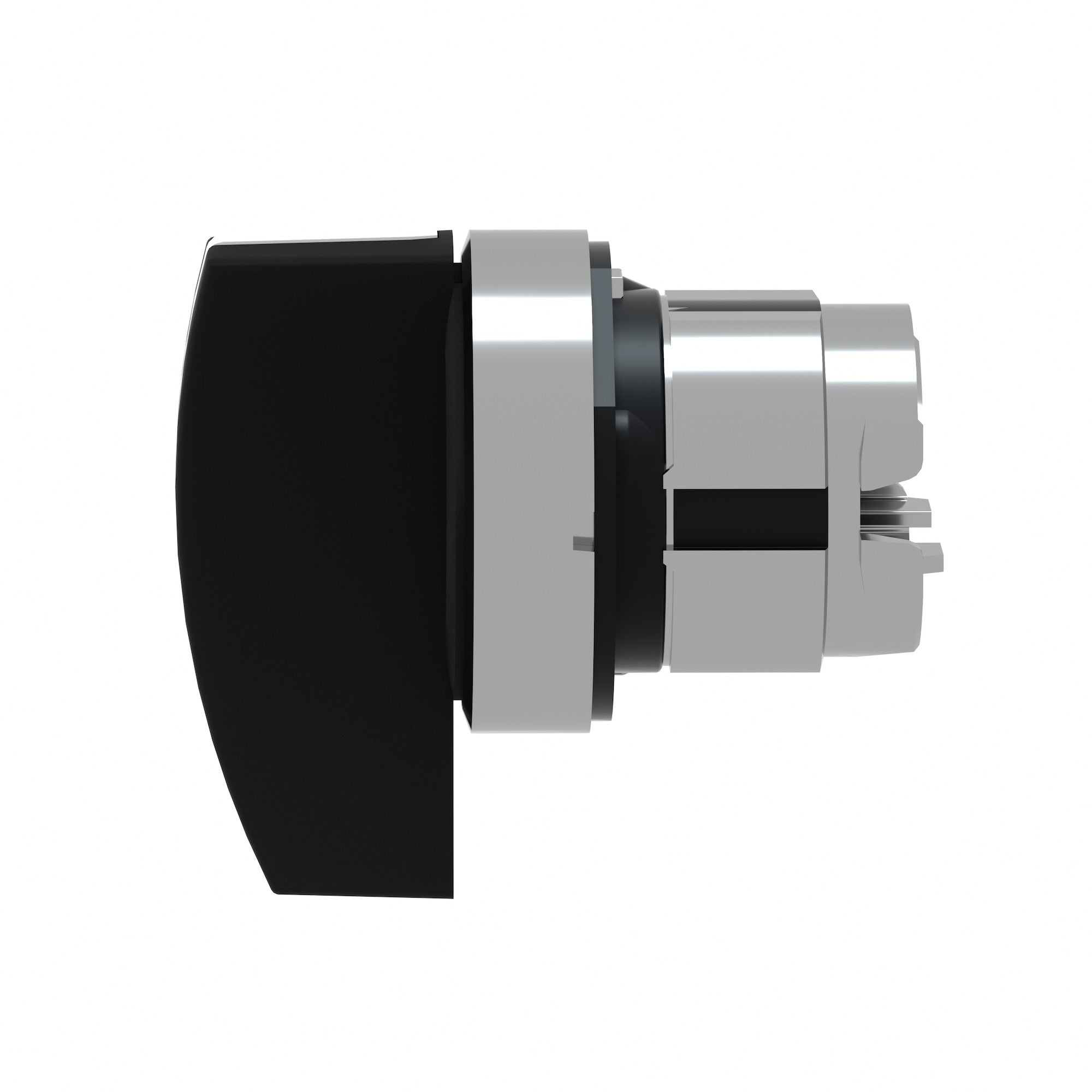

Schneider Electric ZB4BJ3 Selector Switch 3 Position MAINTAINED Replacement ZB4BJ3

Product Description

Schneider Electric ZB4BJ3 is a selector switch designed for control and automation applications. It features a black head with a long handle and operates with a stay-put mechanism. This switch provides an ergonomic interface for controlling machines and is compatible with standard selector switch units. It effectively sets machines in various operating modes. The ZB4BJ3 is built for durability, featuring an IP69K rating that protects against impact, dust, water, and vibrations.

• 3-position functionality with maintained action
• Impact, dust, water, and vibration resistant
• Compatible with standard 22mm cutouts

Product Highlights

Designed for harsh industrial conditions, the ZB4BJ3 operates effectively within a wide temperature range from minus forty degrees Celsius to seventy degrees Celsius, making it versatile for various applications.

Product Information

Standard Information

• Brand: Schneider Electric
• Catalog Number: ZB4BJ3

Technical Specifications

• Type: Head for selector switch
• Weight: 0.09 lbs
• Dimensions: 0.87 inches in diameter
• Actuator: 3 positions, plus/minus 45 degrees
• Standard: UL 508, CSA C22.2 No 14
• Enclosure Rating: NEMA 1/2/3/4/4X/13
• Country of Origin: France
• Warranty: 18 months
