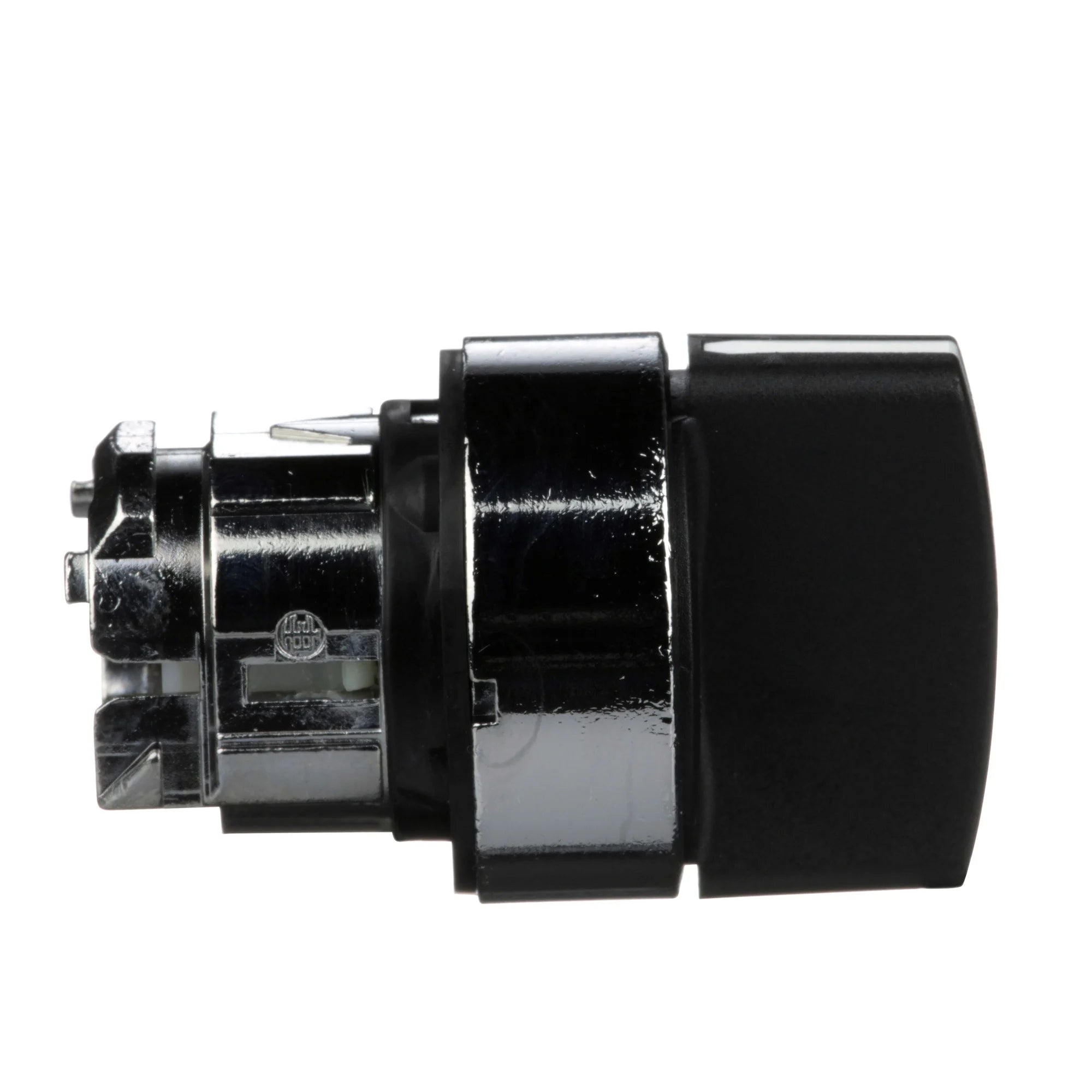

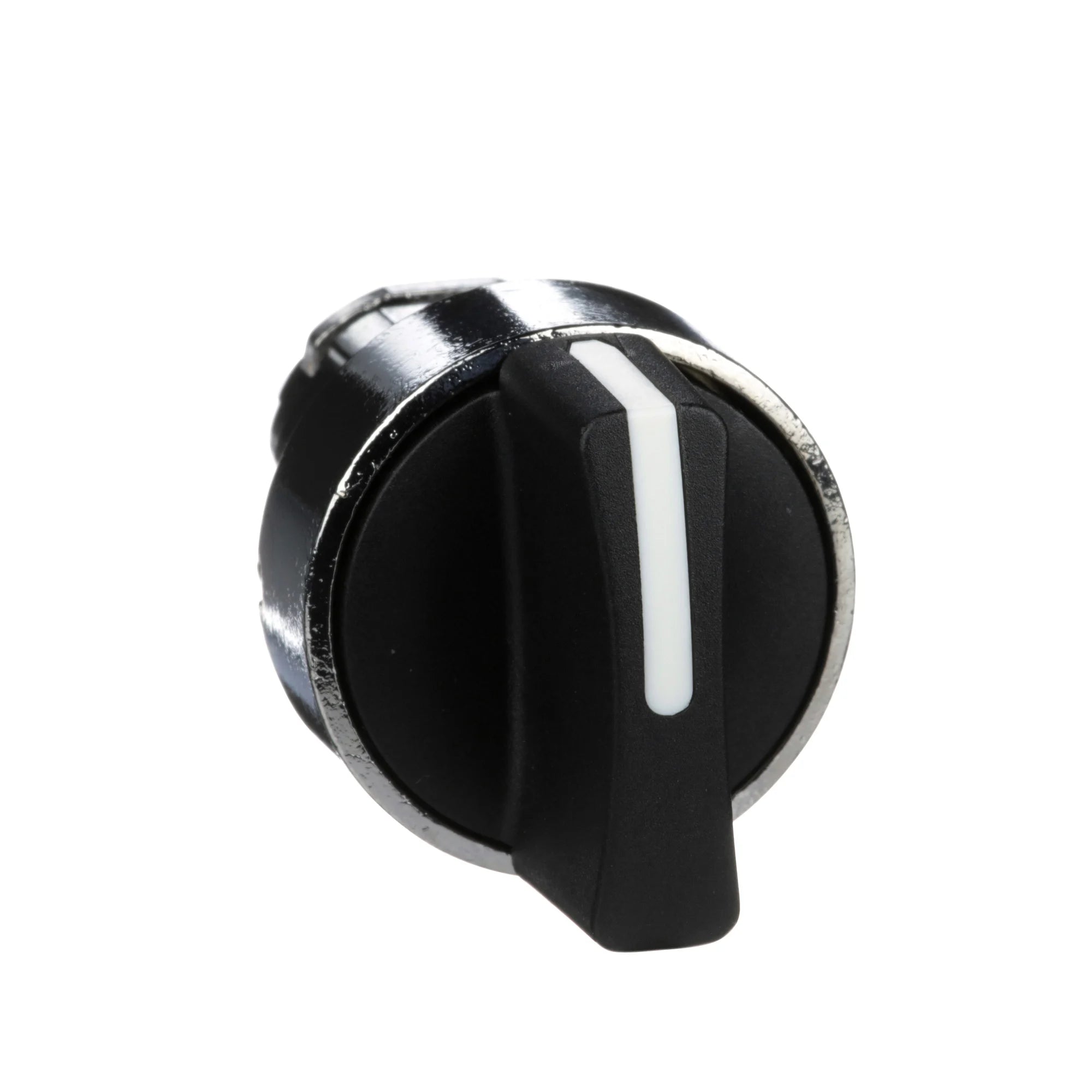

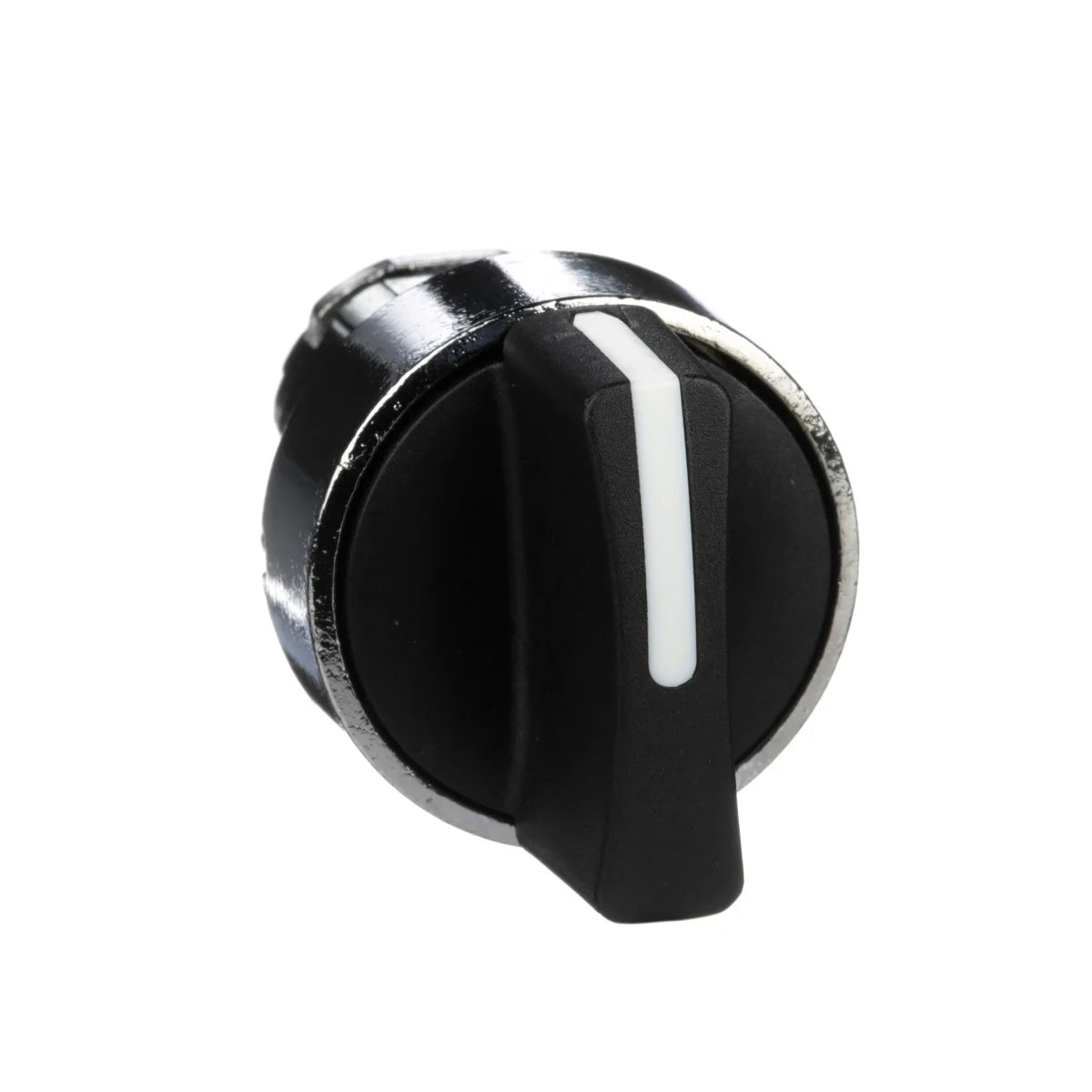

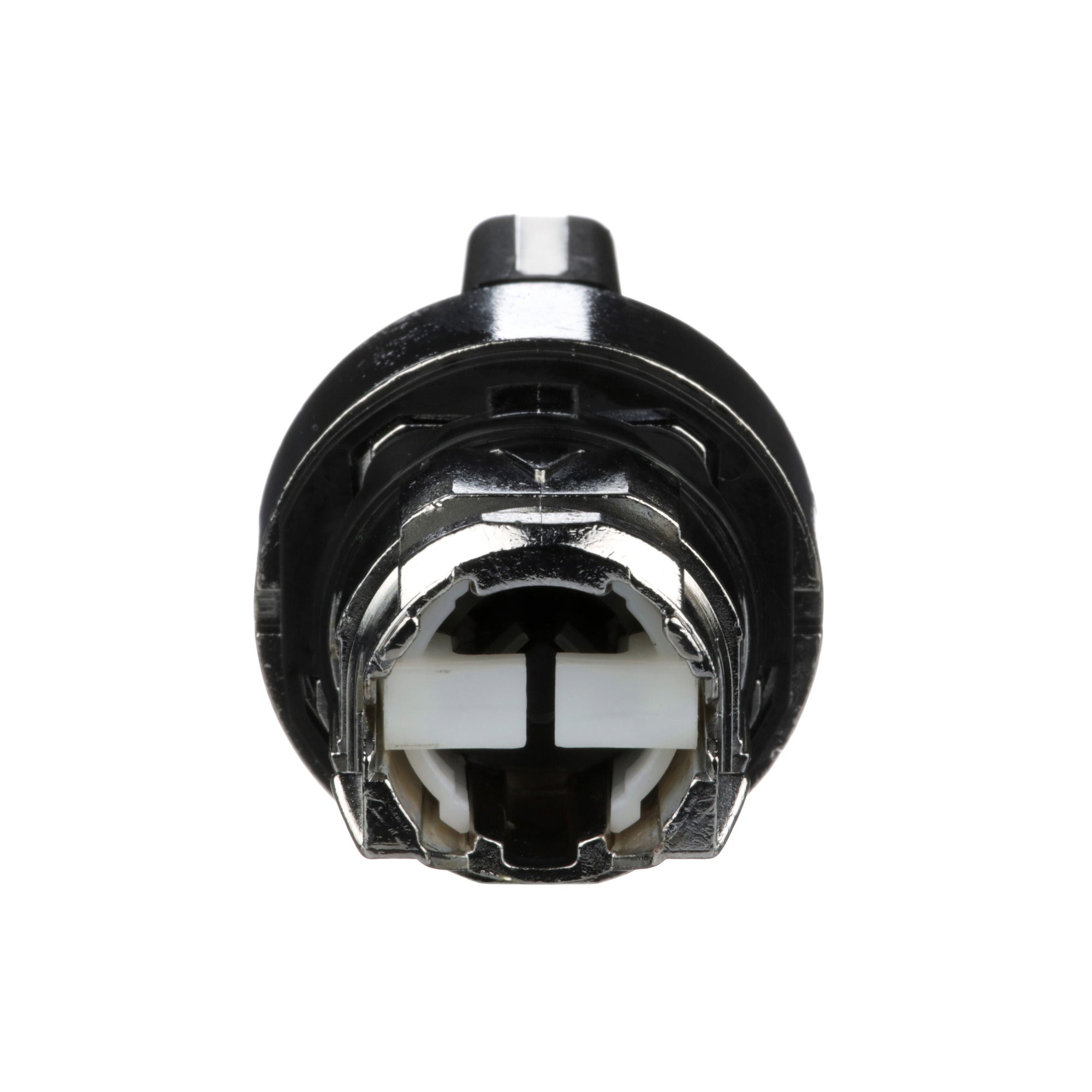

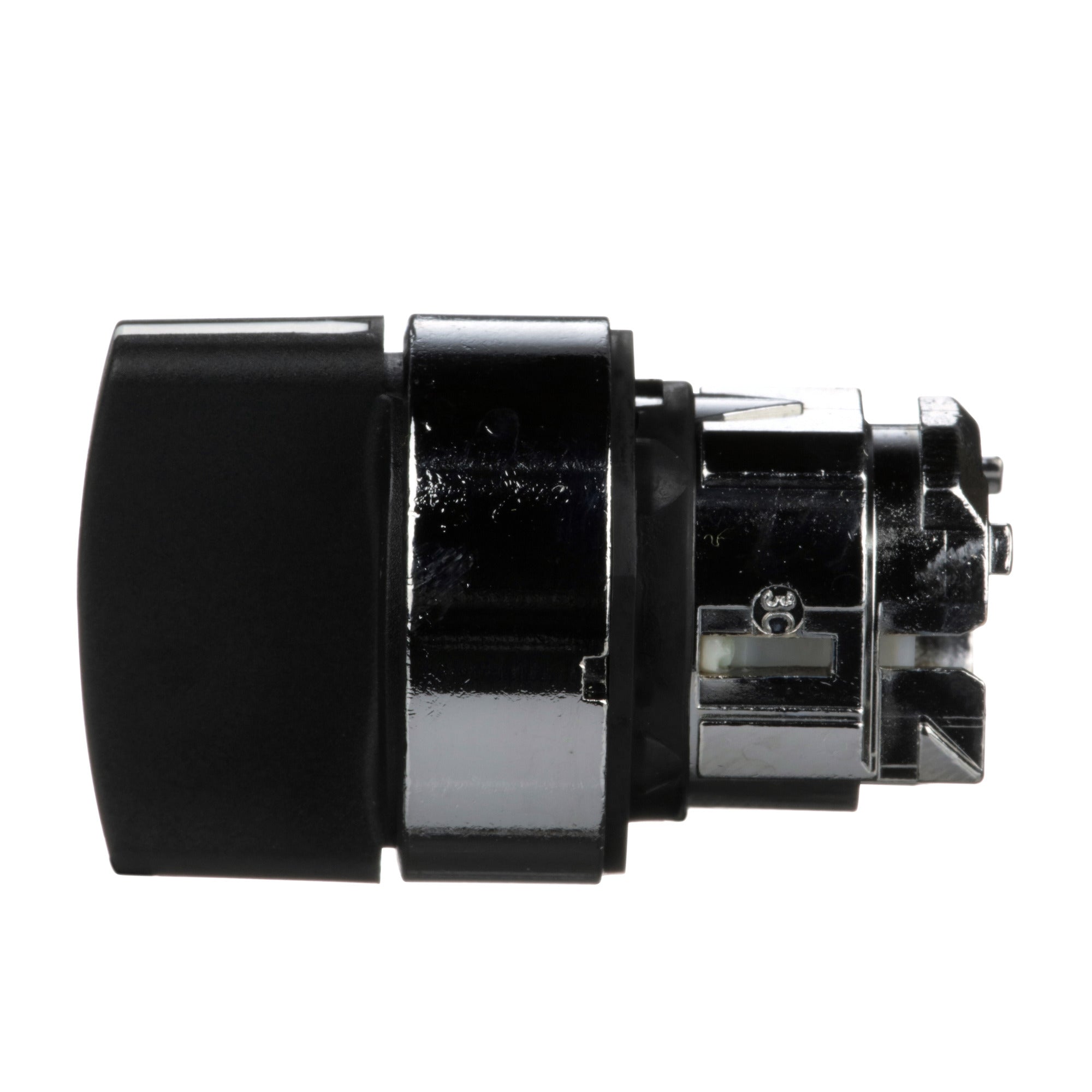

Schneider Electric ZB4BD5 Selector Switch power (22mm) replacement MPN

Product Description

The Schneider Electric ZB4BD5 selector switch is designed for control applications. It features a robust construction suitable for industrial environments. This push button switch has a momentary action with three positions and spring return functionality.

• Durable construction with chromium plated metal material
• Compatible with standard twenty-two mm cutouts for easy installation
• IP66 and IP69K rated for protection against dust and high-pressure water

Product Highlights

This selector switch is ideal for machine manufacturers in industries like automotive, textiles, and timber, providing reliable operation in harsh environments.

Product Information

Standard Information

• Catalog Number: ZB4BD5
• Brand: Schneider Electric

Technical Specifications

• Size: 0.87 in
• Type: Head for selector switch
• Weight: 0.09 lb
• Action: Momentary (both sides to center)
• Height: 29 mm
• Width: 29 mm
• Standard: UL listed, CSA certified
• Operating Temperature: -40 to 70 degrees C
