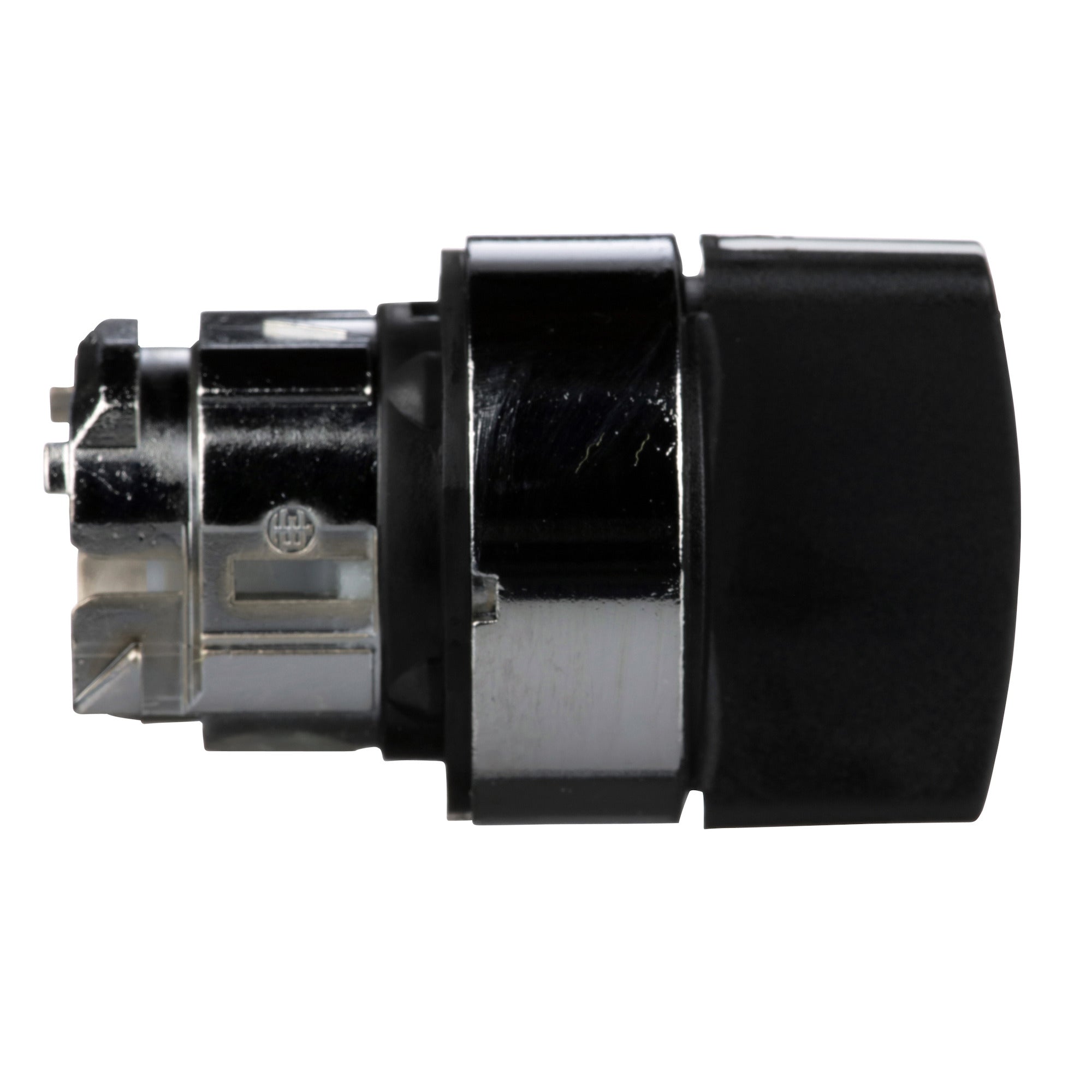

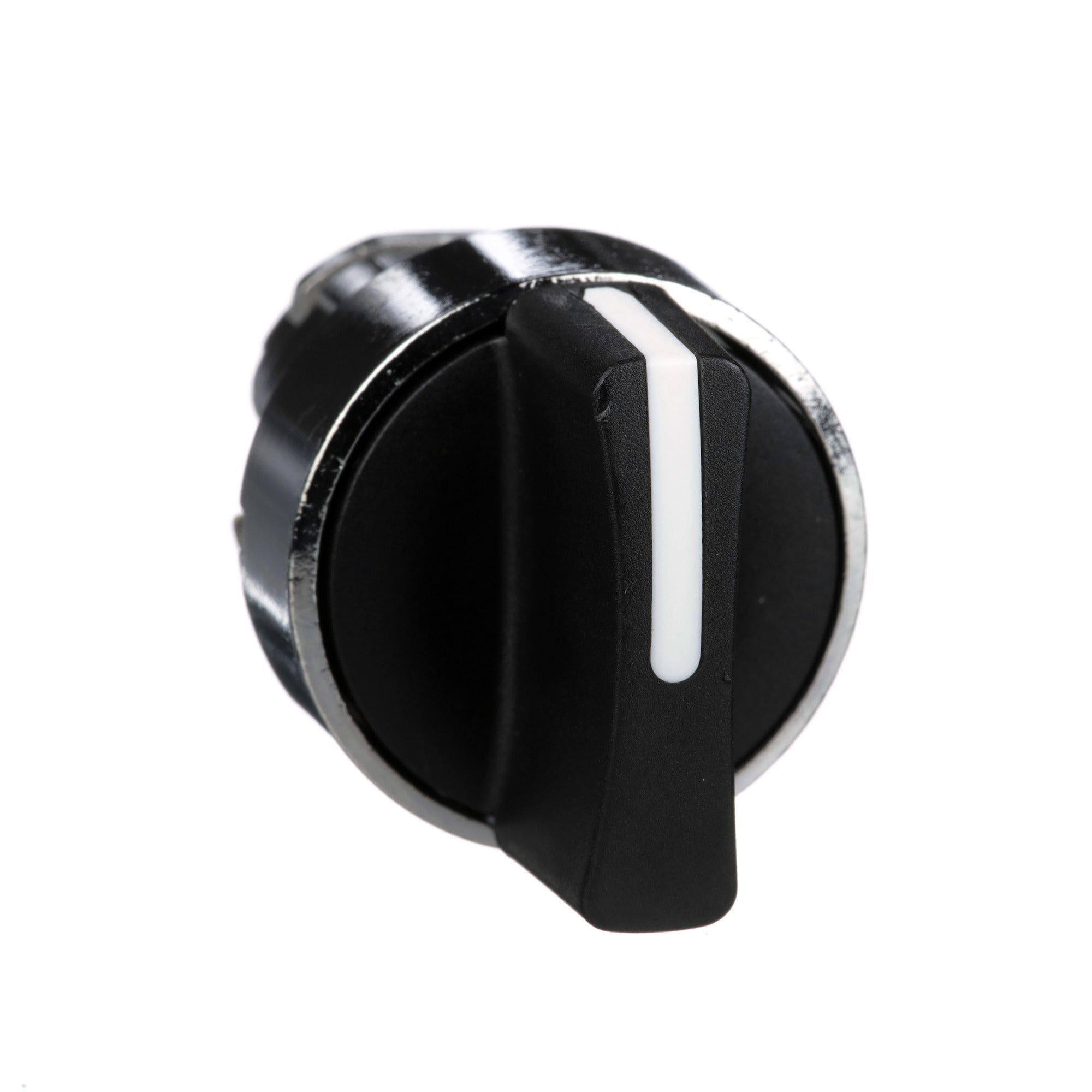

Schneider Electric ZB4BD3 Harmony 22mm Push Button Selector Switch Operating Head 3 Position Maintained

Product Description

The Schneider Electric ZB4BD3 is a harmony 22mm push button selector switch designed for industrial use. This switch features a three-position maintained operation and is unmarked in its black finish.

• Easy integration with existing machinery through standard 22mm cutout
• Durable construction suitable for various industrial applications
• Compatible with low load and high power electrical contacts

Product Highlights

The ZB4BD3 provides simple setup and robustness for optimal performance in various environments.

Product Information

Standard Information

• Catalog Number: ZB4BD3
• Manufacturer: Schneider Electric

Technical Specifications

• Type: Head for selector switch
• Material: Chromium plated metal
• Action: Maintained
• Weight: 0.09 lbs
• Operating Temperature: -40 to 70 degrees Celsius
• Environmental Conditions: IP 65
• Mechanical Durability: 1,000,000 cycles
• Mounting Diameter: 22mm
