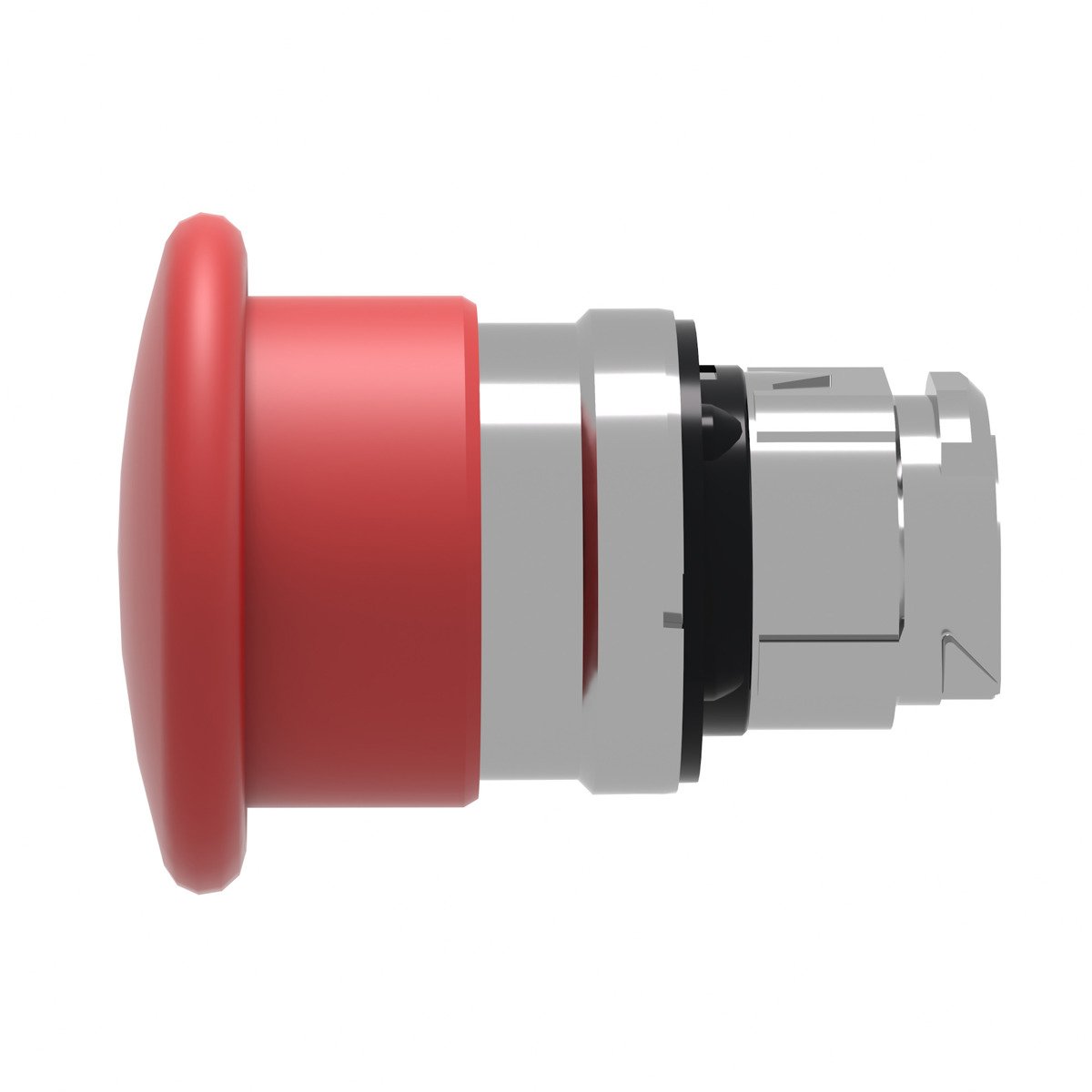

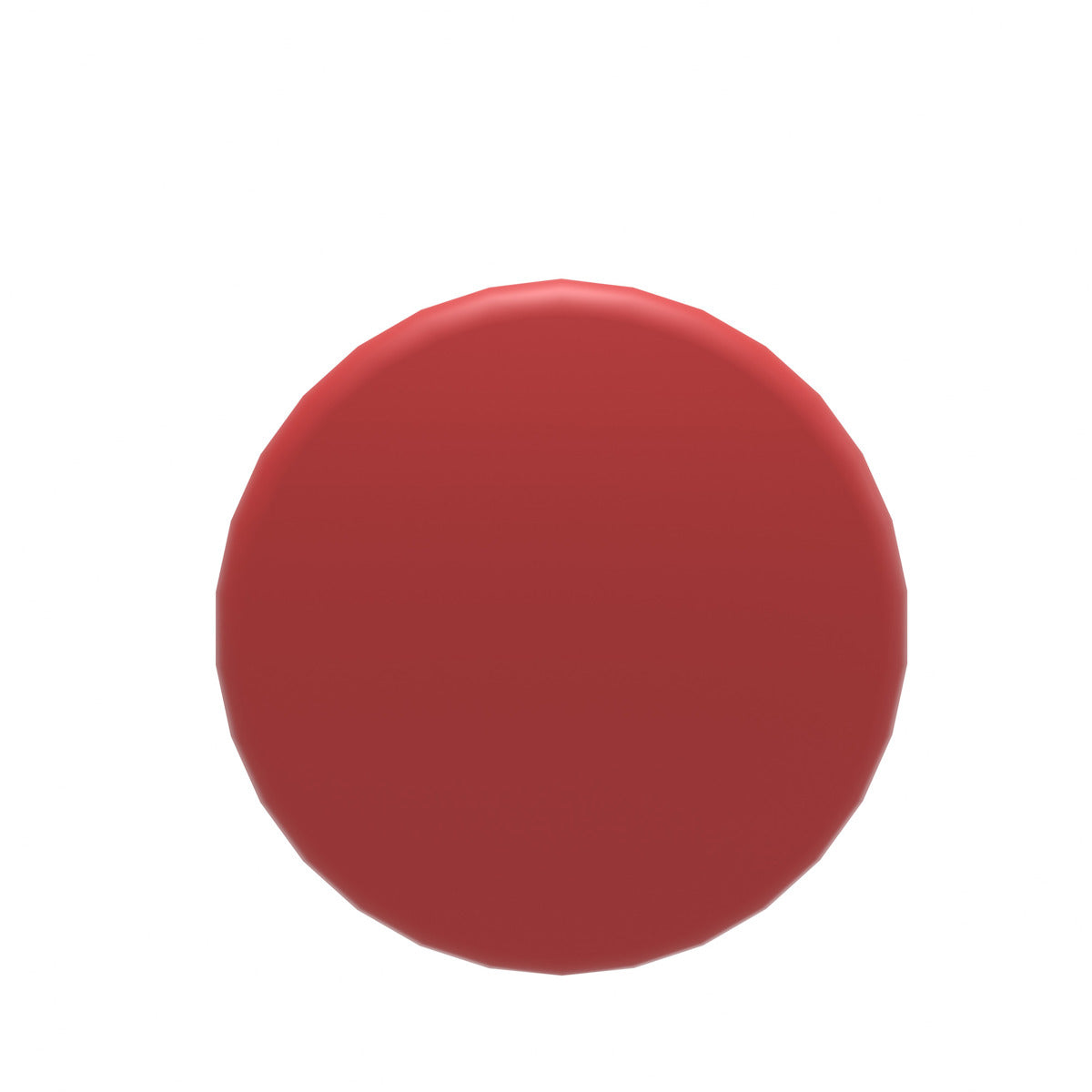

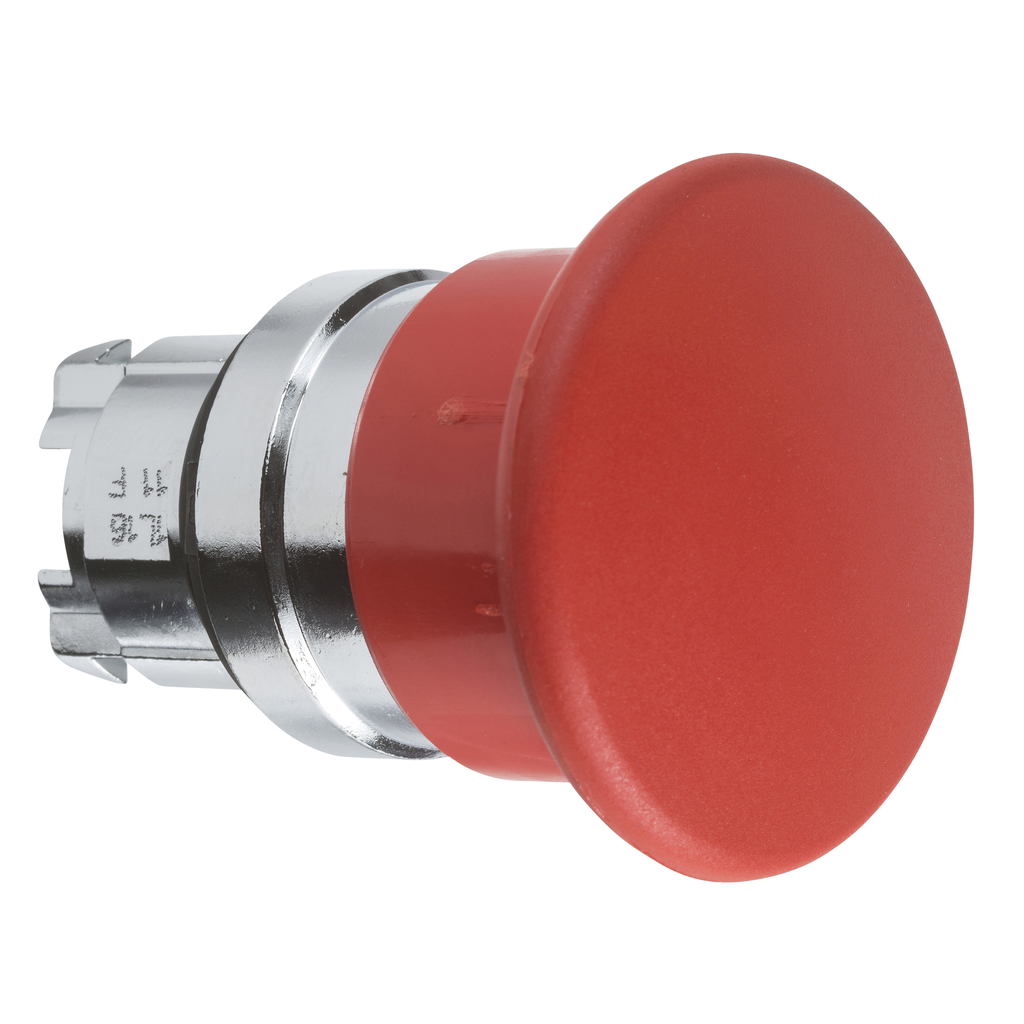

Schneider Electric ZB4BC4 Mushroom Push Button - Head for Non-Illuminated Push-Button

Product Description

The Schneider Electric ZB4BC4 is a mushroom push button head designed for quick operations in control systems. It functions with a spring return mechanism and fits a standard twenty-two millimeter cutout. The button measures forty millimeters in diameter and is ideal for situations requiring immediate actions. The ZB4BC4 is suitable for environments where operators may need to wear gloves, thanks to its ergonomic design.

• Operates at temperatures ranging from minus forty to seventy degrees Celsius.
• Impact, dust, and water-resistant with an IP66 rating.
• Mushroom head shape allows for easy visibility and operation.

Product Highlights

This push button is not only user-friendly, but also highly durable, making it ideal for various industrial applications.

Product Information

Standard Information

• Product ID: 148290
• Brand: Schneider Electric

Technical Specifications

• Catalog Number: ZB4BC4
• Type: Head for non-illuminated push-button
• Height: 40 mm
• Width: 40 mm
• Material: Chromium plated metal
• Actuator: Mushroom button
• Enclosure Rating: NEMA 1/2/3/4/4X/13
• Operating Temperature: -40 to 70 degrees Celsius
