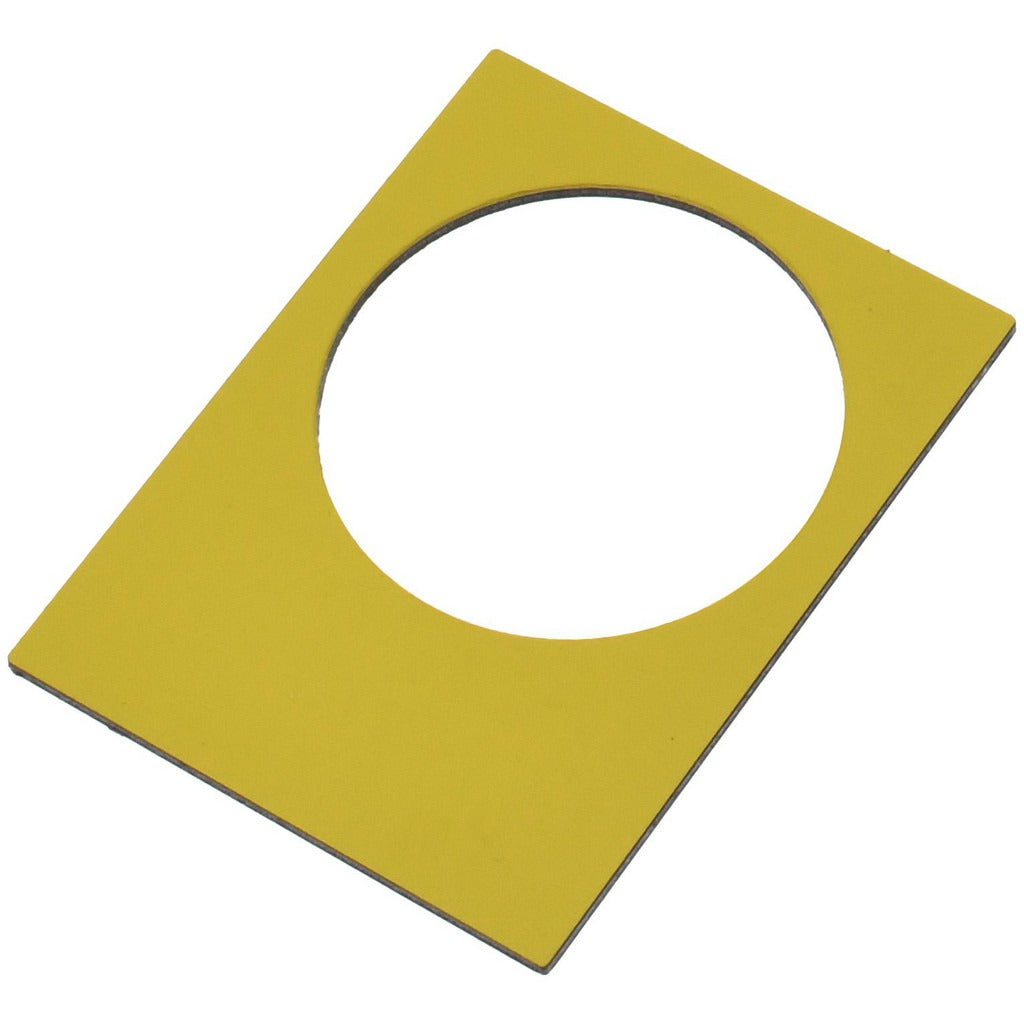

Schneider Electric ZB2BY4101 Pvc Legend Plate Blank

Product Description

The SCHNEIDER ELECTRIC ZB2BY4101 is a rectangular, blank PVC legend plate designed for use with industrial pushbutton and pendant control stations. It features a yellow and white background and fits a 22mm hole diameter, making it a direct-fit label plate for standard 22mm control devices. At 30mm wide by 40mm high, it provides a clear, visible surface for field labeling or identification in control panel and pendant station applications. Electricians and panel builders install this plate to identify unlabeled operators or to replace worn, damaged, or missing legend plates on existing equipment.

This legend plate is suited for use in light industrial, manufacturing, and machine control environments where pendant or pushbutton stations require operator identification. It is rated for 22mm cutout devices and is compatible with pendant station assemblies as noted by the manufacturer. The blank surface allows for custom field labeling using standard marking methods.

Key Features

• Blank legend plate — no pre-printed markings, ready for custom field identification
• Yellow and white background for high-visibility operator interface labeling
• Rectangular PVC construction — lightweight and durable for industrial environments
• 22mm hole diameter for direct fit to standard 22mm pushbutton and pendant stations
• Overall dimensions: 30mm wide by 40mm high

Compatibility

Designed for use with Type XACA Pendant Stations, Type XACB Pendant Stations, and Type XACM Pendant Stations as specified by the manufacturer.

Installation Notes

Installation is performed by a licensed electrician or qualified panel technician. Always de-energize the control station and lock out the power source before removing or replacing legend plates on live equipment. Ensure the 22mm cutout diameter matches the existing operator before installing. No special tools are required for typical legend plate replacement.
