Schneider Electric ZB2BY2308 Pvc Legend Plate Down

Product Description

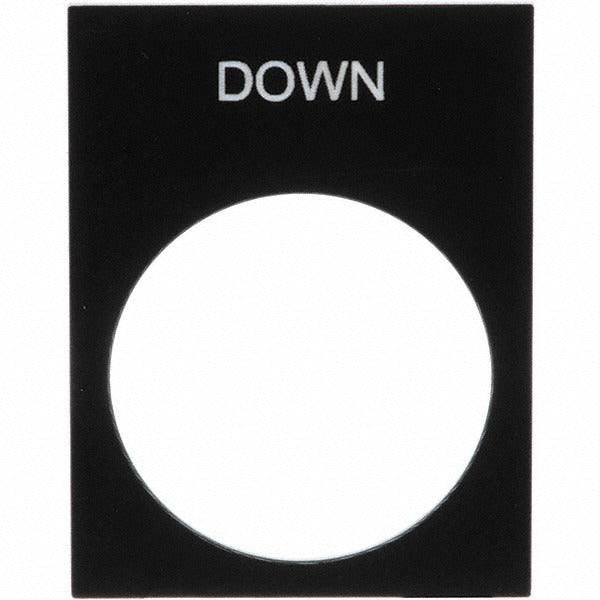

The SCHNEIDER ELECTRIC ZB2BY2308 is a rectangular PVC legend plate marked with the directional label "Down" for use on industrial pushbutton control stations. The plate features a black background with white lettering for high-contrast readability in demanding industrial environments. It is designed for 22mm hole diameter mounting and measures 30mm wide by 40mm high, fitting flush into standard 22mm pushbutton cutouts. Licensed electricians and industrial controls technicians install these plates to label pushbutton functions clearly and meet facility identification requirements.

This legend plate is suited for industrial control panel applications, machine operator stations, and production-line control enclosures where directional or functional labeling of pushbuttons is required. According to the input data, the ZB2BY2308 is specifically designed for use with Type XACA Pendant Stations. It is a direct OEM replacement or supplemental identification component for 22mm pushbutton assemblies in both light and heavy manufacturing environments.

Key Features

• Directional "Down" legend marking for clear pushbutton function identification
• Black background with white letters for high-contrast visibility
• Rectangular PVC construction for durability in industrial settings
• 22mm hole diameter fits standard 22mm pushbutton cutouts
• Compact form factor: 30mm wide by 40mm high

Compatibility

Designed for use with Type XACA Pendant Stations as specified by the manufacturer. Fits standard 22mm pushbutton legend plate positions.

Installation Notes

Installation is typically performed by a licensed electrician or qualified controls technician. De-energize the control station and follow applicable NFPA 70E lockout/tagout procedures before servicing any pushbutton assembly. The legend plate snaps or secures into the pushbutton operator collar at the 22mm cutout. Inspect the plate seating to confirm it is fully flush and secure before returning the station to service.
