Schneider Electric ZB2BY2307 Pvc Legend Plate Up

Product Description

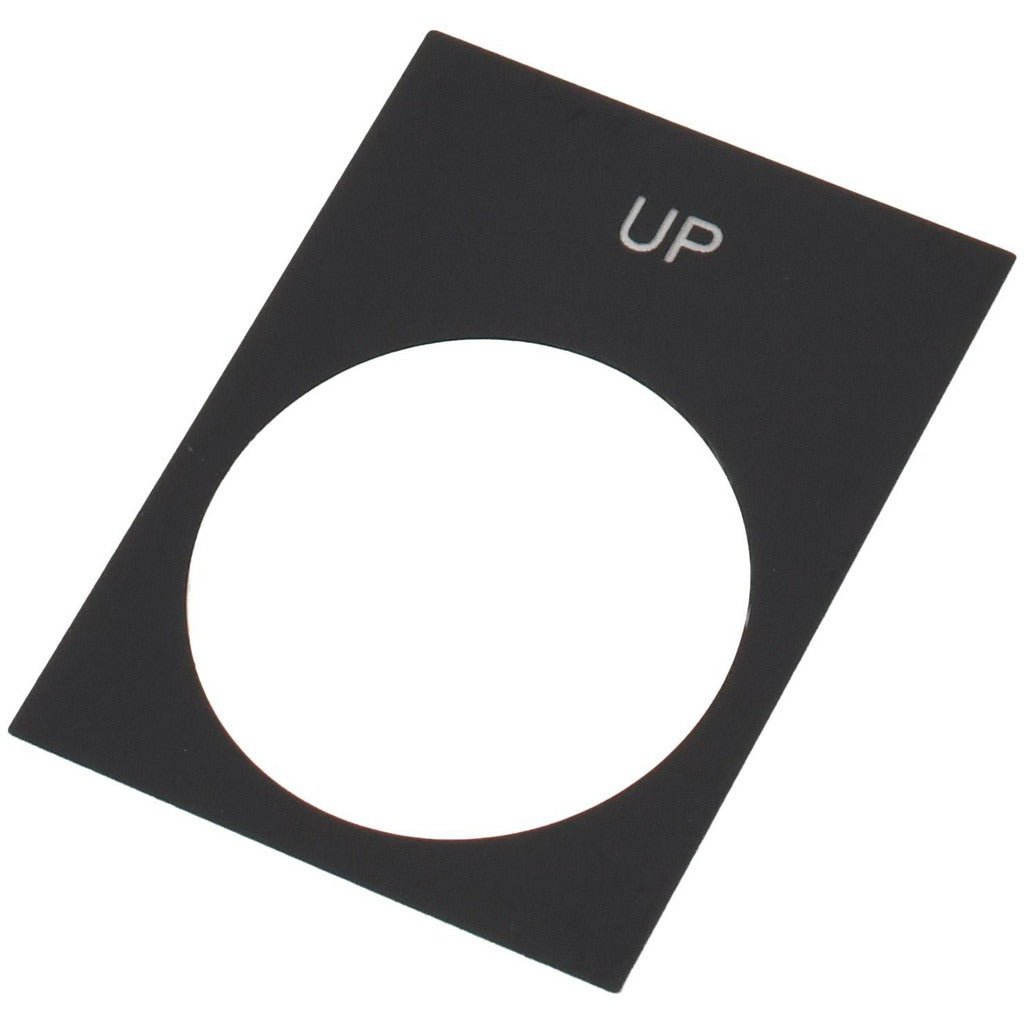

The SCHNEIDER ELECTRIC ZB2BY2307 is a rectangular PVC legend plate marked with the directional label "Up" for use in industrial control stations. It features a black background with white letters, providing high-contrast visibility in demanding work environments. The plate measures 30mm wide by 40mm high and fits a 22mm hole diameter. It is a replacement component installed by licensed electricians and industrial maintenance technicians to label pushbutton or selector switch operators on pendant and control stations.

This legend plate is designed for use with Type XACA pendant stations, a common configuration in industrial automation and machine control applications. It provides clear operator identification at the control point, which is critical for safe machine operation and compliance with equipment labeling requirements. Typical installations include manufacturing facilities, material handling systems, and process control equipment where directional commands must be clearly marked.

Key Features

• Rectangular PVC construction for durability in industrial environments
• Black background with white letters for high-contrast legibility
• 22mm hole diameter fits standard 22mm pushbutton operator cutouts
• Directional "Up" legend marking for clear operator identification
• Compact profile: 30mm wide by 40mm high
• Designed for use with Type XACA pendant stations

Compatibility

Designed for use with Type XACA pendant stations. Fits standard 22mm hole diameter pushbutton and selector switch operator assemblies.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the NEC and applicable local codes. De-energize the control station and follow lockout/tagout procedures before removing or replacing legend plates. Ensure the 22mm hole diameter of the mounting surface matches the plate before installation. Do not force the plate into an incompatible opening, as PVC components can crack under excess pressure.
