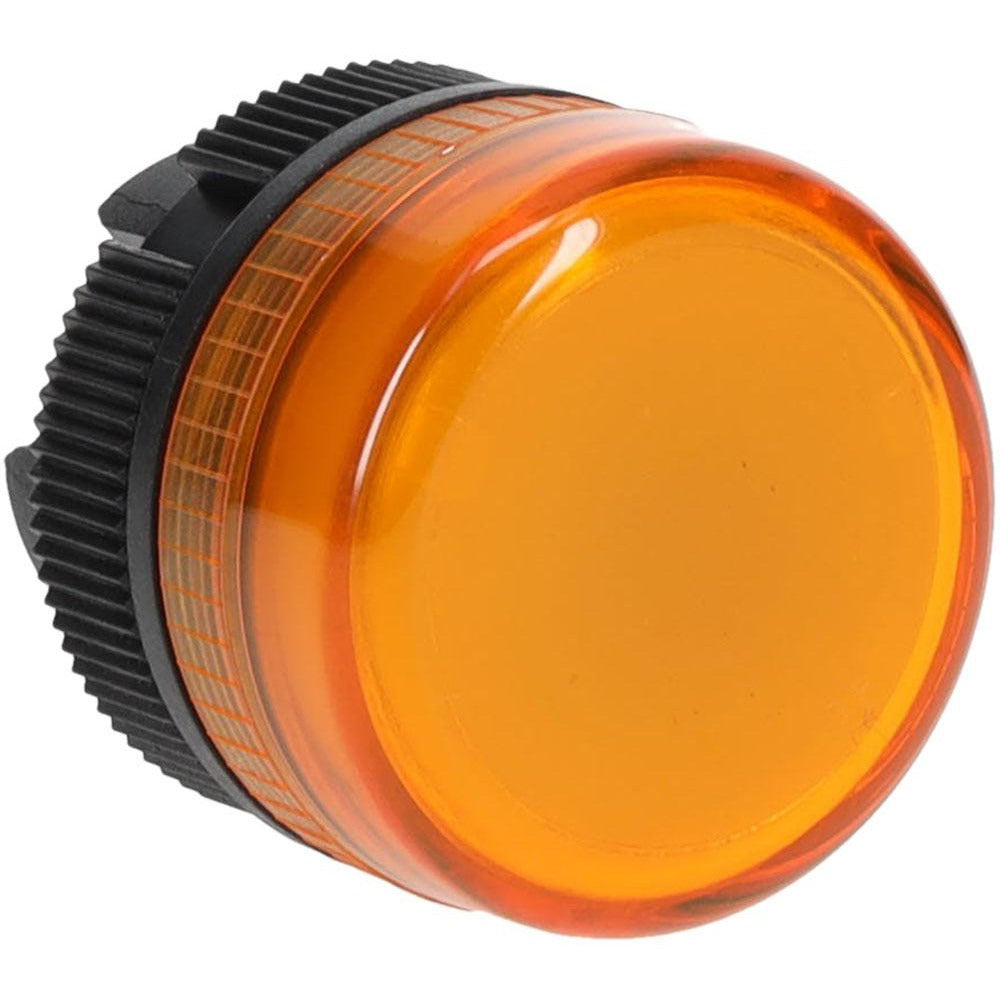

Schneider Electric ZA2BV05 Yellow Incandescent Pilot Light

Product Description

The SCHNEIDER ELECTRIC ZA2BV05 is a yellow incandescent pilot light lens designed as a replacement component for industrial control panel indicator assemblies. This round lens fits standard pilot light body bases and provides a yellow illuminated signal when the incandescent lamp is energized. Built to withstand demanding environments, it carries shock-resistant and vibration-resistant ratings, making it appropriate for machine control panels, motor control centers, and similar industrial enclosures where mechanical stress is a regular factor. Licensed electricians and industrial maintenance technicians typically install this component during panel builds or indicator lamp servicing.

This lens is suited for use in industrial and commercial control panel applications where a visual status indicator is required. It is commonly installed in push-button and pilot light assemblies on manufacturing equipment, conveyor systems, pump control panels, and HVAC packaged unit control enclosures. The yellow color convention is widely used to signal caution, standby, or intermediate machine states. The ZA2BV05 is a direct replacement or spare component for existing pilot light assemblies using this lens format.

Key Features

• Yellow round lens for incandescent pilot light assemblies
• Shock-resistant construction for use in high-vibration environments
• Vibration-resistant rated for reliable long-term panel operation
• Meets CSA C22.2 No. 14 and EN/IEC 60947-5-1 standards
• Compact form factor at 1.4 inches length and 1.2 inches width
• Lightweight at 0.03 pounds for easy handling and installation

Compatibility

Designed as an OEM-style replacement lens for incandescent pilot light assemblies compatible with standard industrial control panel indicator bases.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the NEC and applicable local codes. De-energize and lock out the control panel before removing or installing the lens. Confirm the lamp type in the host assembly is incandescent before fitting this lens, as mixing lamp types can affect lens retention or illumination output. Do not over-tighten the lens retention ring, as this may crack the lens body.
