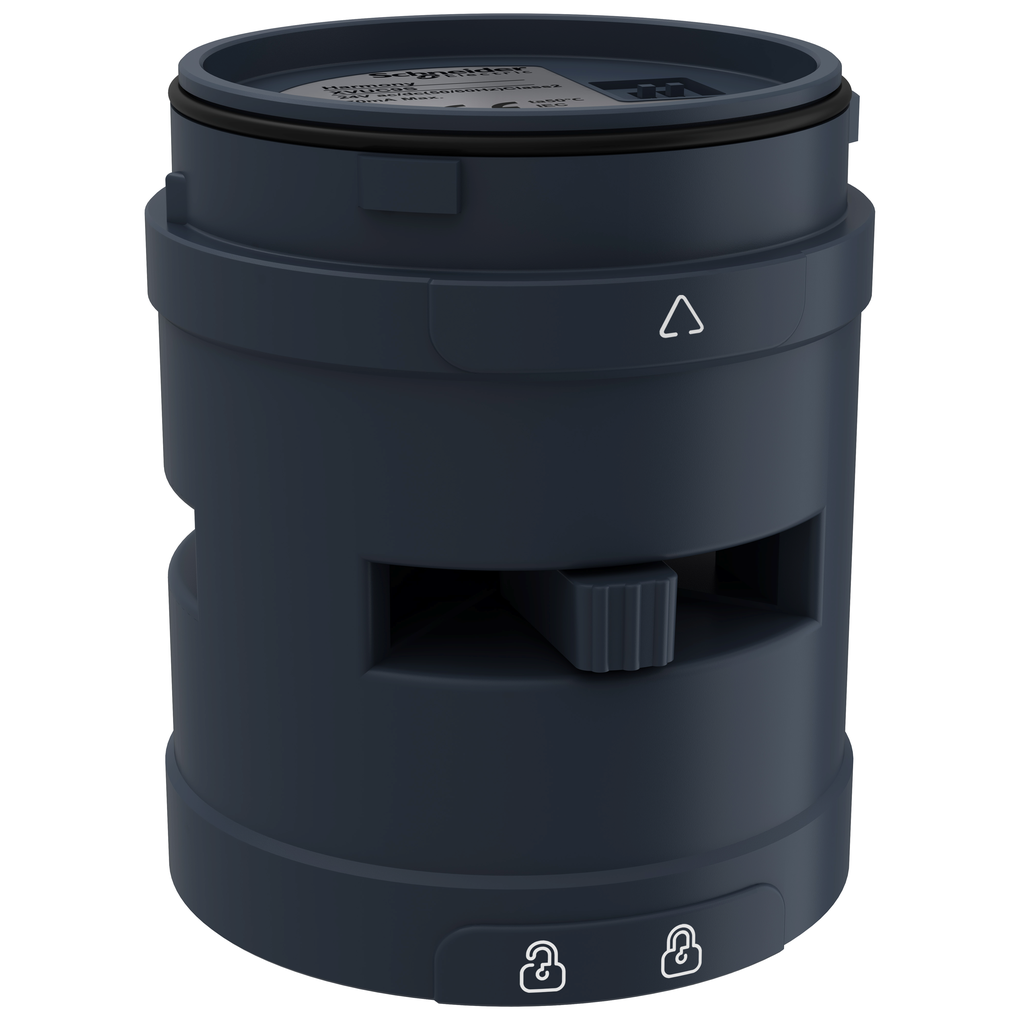

Schneider Electric XVUC9S Square D Buzzer Unit 24V AC/DC 60mm

Product Description

The Schneider Electric XVUC9S is a buzzer unit designed for signaling and indicating purposes. This device operates on 24V AC/DC and features a mounting diameter of sixty millimeters. It integrates seamlessly with modular tower lights for custom assembly.

• Operates on 24V AC/DC power supply.
• Continuous or intermittent signal functionality.
• Adjustable sound acoustic level for varied applications.

Product Highlights

This unit complies with CSA, UL, RoHS, and CE standards. It has a protection rating of IP54, ensuring reliable performance in various environments.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Schneider Electric

Technical Specifications

• Catalog Number: XVUC9S
• Length: 58 mm
• Weight: 0.17 lb
• Current: 70 mA
• Loudness: 85 dB at 1 m
• Material: ABS Plastic
• Enclosure Color: Black
• Power Supply: 24 V AC/DC, 1.7 W, <= 70 mA
• Operating Temperature: -25 to 50 degrees C
• Storage Temperature: -40 to 70 degrees C
• Environmental Conditions: -25 to 50 AC, IP54
