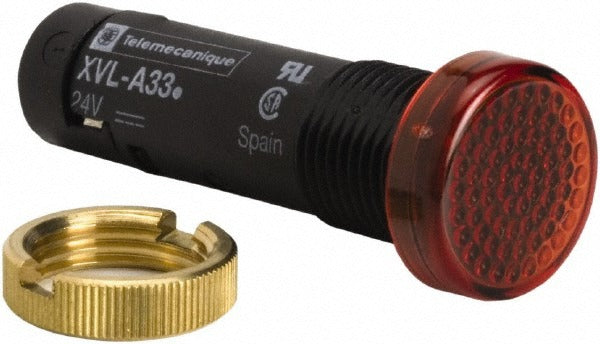

Schneider Electric XVLA334 Led Pilot Light 24V Red

Product Description

The SCHNEIDER ELECTRIC XVLA334 is a 24-volt LED pilot light designed for panel-mount indicator applications in industrial and commercial control systems. Featuring a red lens and threaded connector, this 16mm wide unit provides a reliable visual status signal on control panels, machine fronts, and automation enclosures. The LED lamp type delivers long service life and low current draw compared to incandescent alternatives. At 0.02 pounds and compact overall dimensions, it installs cleanly in standard 16mm pilot light cutouts. Licensed electricians and industrial maintenance technicians are the typical installers for this type of indicator device.

The XVLA334 is suited for residential, commercial, and light industrial control panels where a 24-volt indicator signal is required. Common applications include motor control centers, HVAC equipment panels, pump control stations, and machine operator interfaces. The red lens color is standard for fault, stop, or power-on indication depending on the panel design. The threaded connector simplifies wiring during panel assembly or field replacement of a failed indicator lamp.

Key Features

• 24-volt operating voltage — compatible with common low-voltage control circuits
• LED lamp type for extended service life and low power consumption
• Red lens for fault, stop, or status indication
• 16mm wide form factor fits standard 16mm panel cutouts
• Threaded connector for secure, tool-assisted wiring termination
• CSA and UL listed — meets common North American electrical safety standards

Compatibility

Designed as an OEM-style replacement or new-installation pilot light for 16mm panel cutout applications operating on 24-volt control circuits.

Installation Notes

Installation should be performed by a qualified electrician in accordance with NEC requirements and any applicable local codes. De-energize the control panel and verify absence of voltage before removing an existing indicator or installing this unit. Thread the body into the panel cutout and secure with the mounting hardware before making wiring connections at the threaded connector. Do not apply voltages above the rated 24 volts to avoid damaging the LED assembly.
