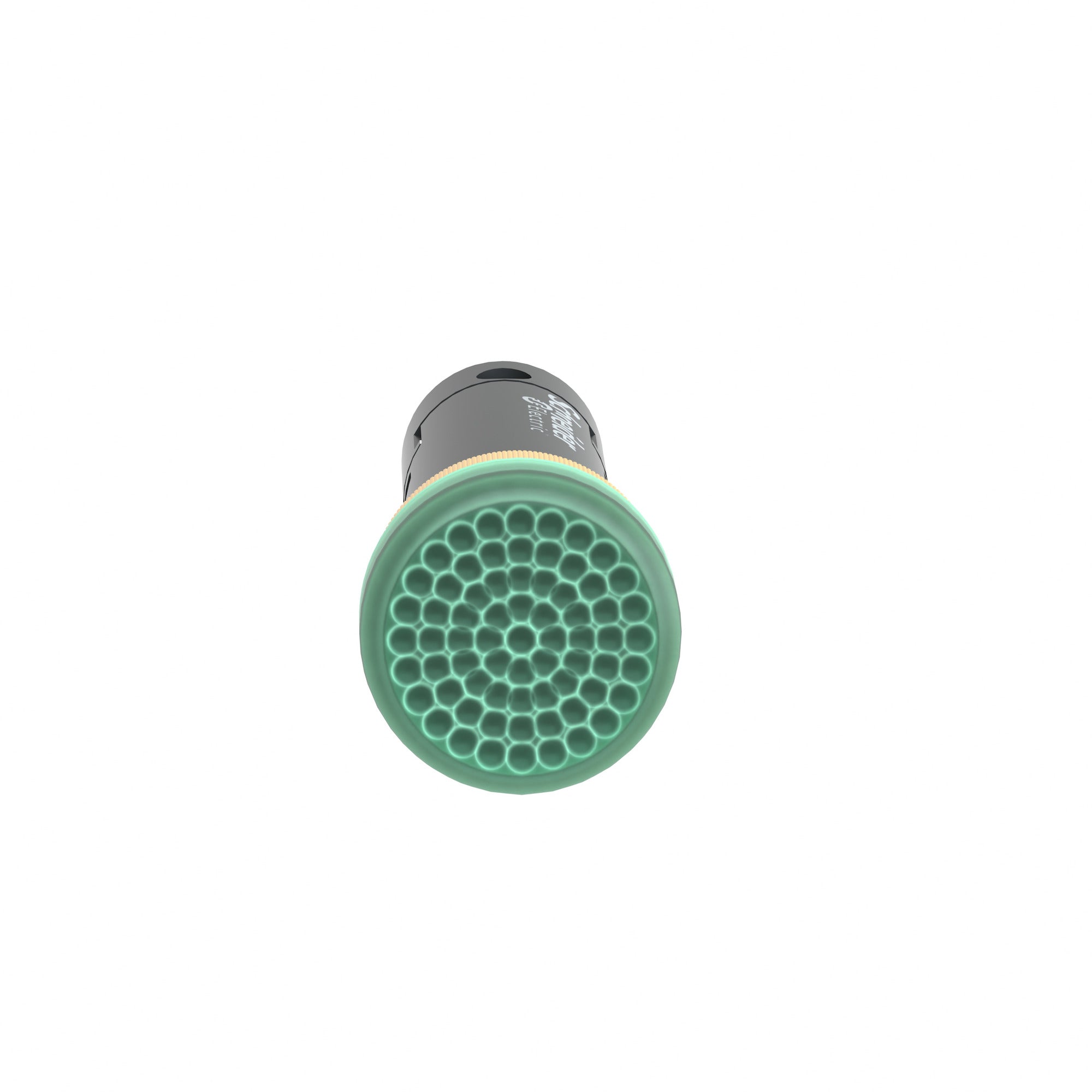

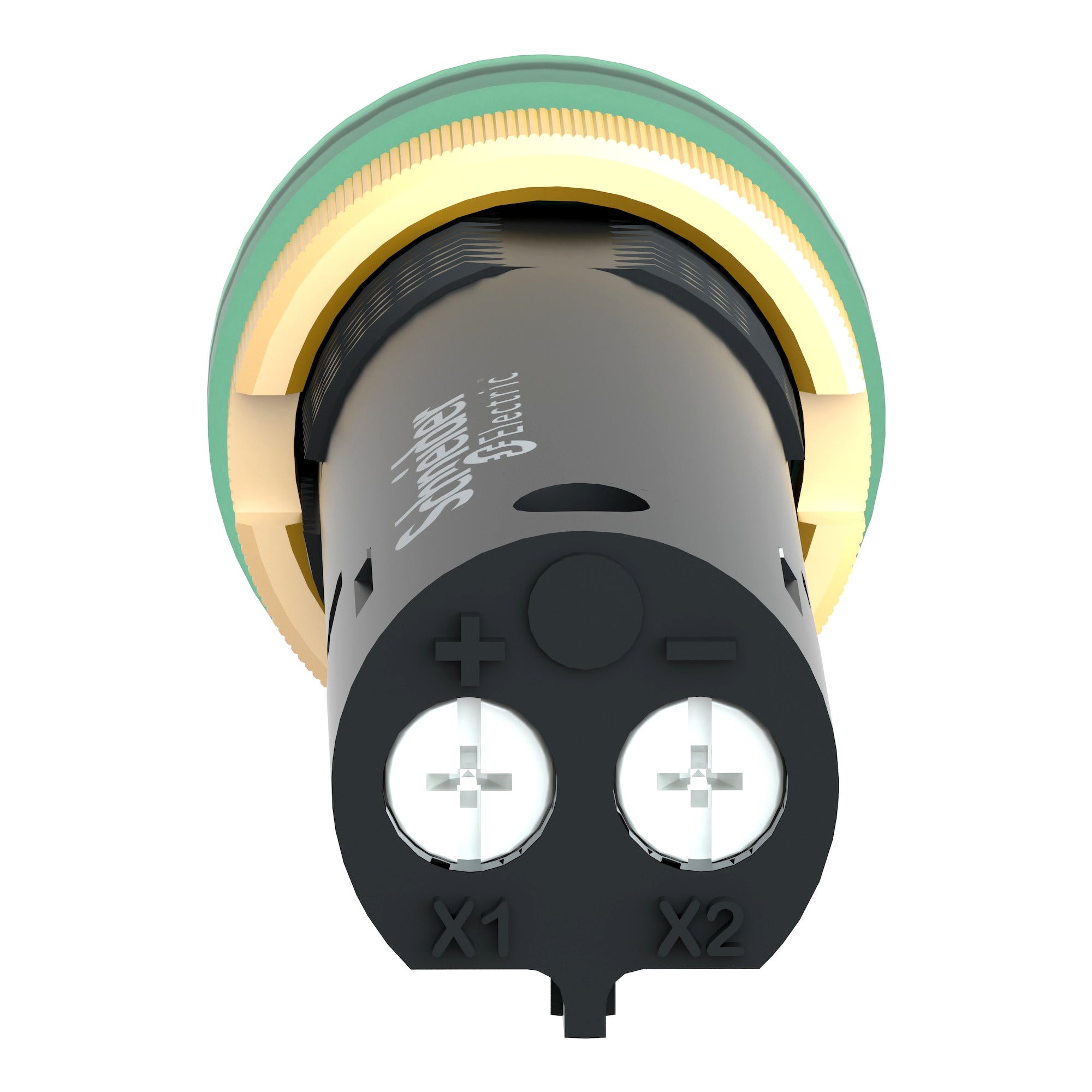

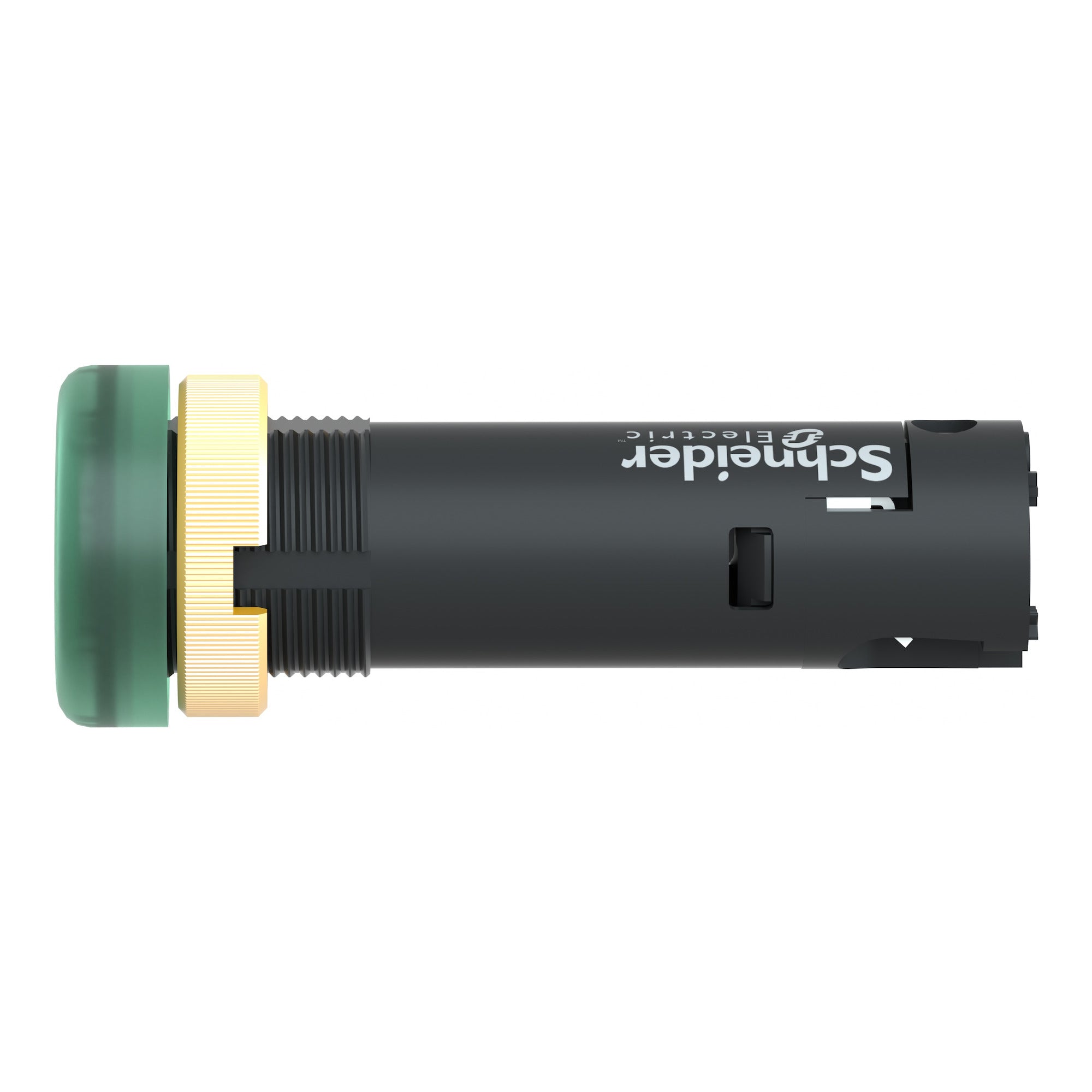

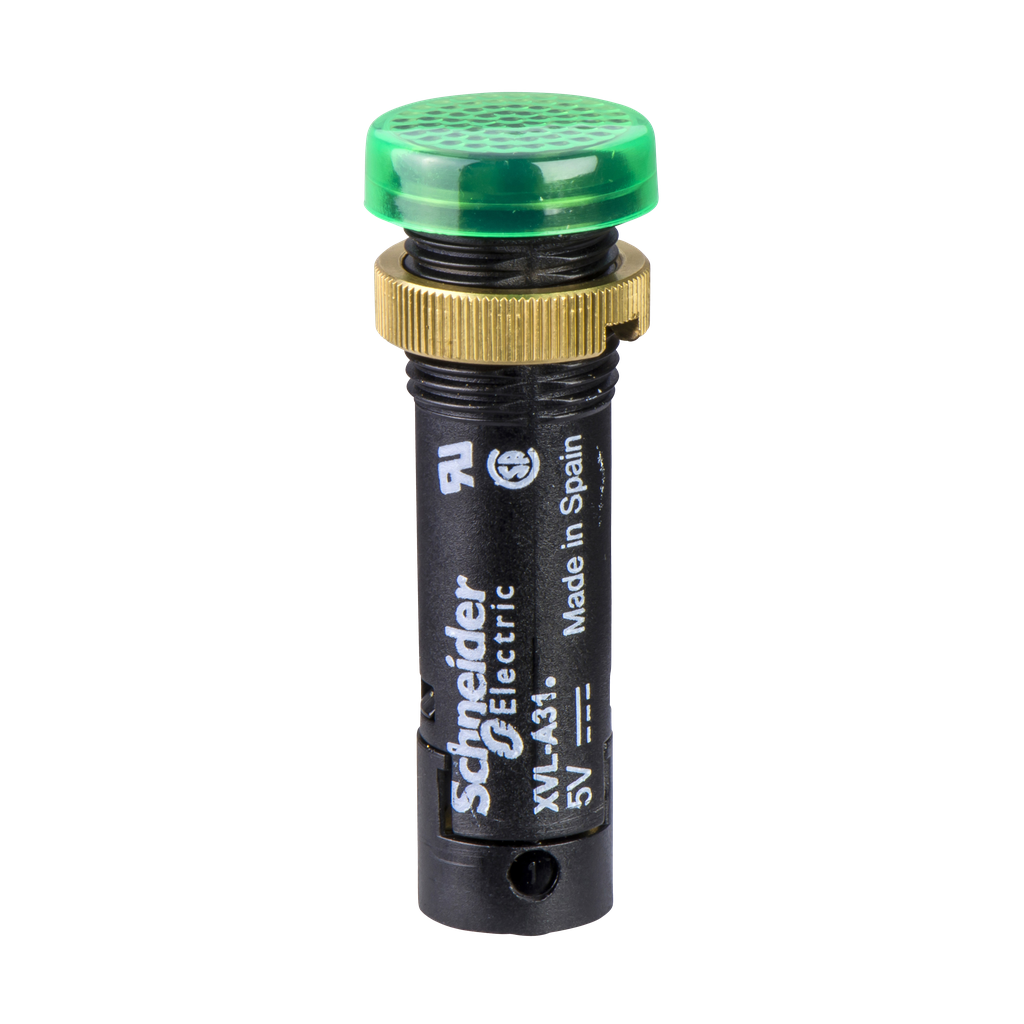

Schneider Electric XVLA333 Square D 12 mm 24 VDC 25 mA Covered LED Miniature Pilot Light

Product Description

The Schneider Electric XVLA333 is a pilot light designed for various applications. This model operates at twenty-four volts DC and has an operating current of twenty-five milliamps. It features a green LED and is part of the Harmony XVL series of pilot lights, which includes sizes from eight to twelve millimeters. The XVLA333 is suitable for both indoor and outdoor use due to its IP40/IP65 rating when sealed.

• Operating voltage: 24 VDC
• IP rating: IP40/IP65 (with seal)
• Flat - covered LED included

Product Highlights

This miniature pilot light is ideal for control and automation processes requiring clear visual indicators.

Product Information

Standard Information

• Catalog Number: XVLA333
• Manufacturer: Schneider Electric

Technical Specifications

• Type: LED pilot light with integral lens cap
• Current: 18 mA
• Voltage: 24 Volt, DC
• Dimensions: 12 mm diameter
• Depth: 51 mm
• Width: 16 mm
• Height: 16 mm
• Environmental Conditions: IP40
• Warranty Length: 18 months
