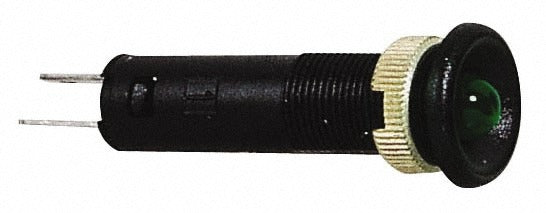

Schneider Electric XVLA133 Led Pilot Light 24V Green

Product Description

The SCHNEIDER ELECTRIC XVLA133 is a 24-volt LED pilot light with a green lens, designed for panel and control station applications in industrial and commercial electrical systems. The LED lamp type delivers long service life and low power consumption compared to incandescent alternatives. At 12mm wide, this compact indicator fits standard cutout sizes commonly found in control panels, machinery, and automation enclosures. Installation is handled by licensed electricians or qualified control panel technicians working on low-voltage indicator circuits.

This pilot light is suited for use in industrial control panels, machine control stations, and process equipment where a visual run or power-on indication is required. The green lens is the standard color designation for operational or running status in most panel wiring conventions. Its quick connect tag connector simplifies field wiring and panel assembly, reducing installation time on new builds and replacement jobs alike.

Key Features

• 24-volt operating voltage for compatibility with common low-voltage control circuits
• Green lens provides standard run or power-on status indication
• LED lamp type for extended service life and reduced maintenance
• Quick connect tag connector for fast, tool-minimal field wiring
• Compact 12mm body fits standard pilot light cutouts
• Meets CSA and UL standards

Compatibility

Designed as an OEM-style replacement or new-installation pilot light for 12mm control panel cutouts requiring a 24-volt LED indicator.

Installation Notes

Installation should be performed by a licensed electrician or qualified controls technician in accordance with NEC requirements for control panel wiring. De-energize the panel and verify zero voltage at the indicator circuit before removing or inserting the pilot light. The quick connect tag connector should be fully seated to ensure a reliable electrical connection. Confirm the panel supply voltage matches the 24-volt rating of this device before energizing.
