Schneider Electric XSAV12801 Inductive Proximity Sensors XS, Rotation Monitoring, M30, Sn10mm, 24...240VAC/DC

Product Description

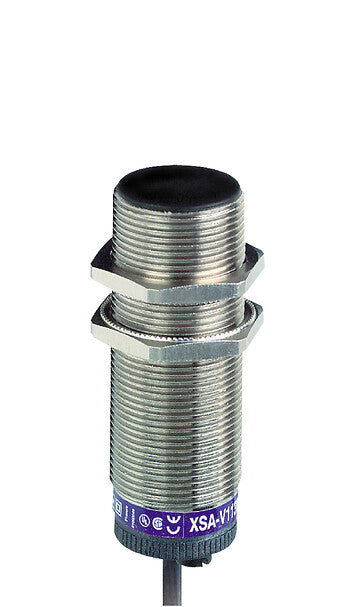

The SCHNEIDER ELECTRIC XSAV12801 is an inductive proximity sensor designed for rotation monitoring. This XSA series sensor features a cylindrical M30 design and is constructed from metal. It operates on 24...240 V AC 50/60 Hz or 24...210 V DC and has a 2-wire wiring technique with a discrete 1 NC output function. It is suitable for conveyor belts, bucket elevators and Archemedian screws.

• Designed for rotation monitoring applications.
• Features a cylindrical M30 metal body and is flush mountable.
• Operates on 24...240 V AC or 24...210 V DC with a 2-wire connection.

Product Highlights

The XSAV12801 inductive proximity sensor is ideal for detecting slip, belt breakage, and overloading in various industrial applications.

Product Information

Standard Information

• Brand: SCHNEIDER ELECTRIC
• Manufacturer Part Number: XSAV12801
• Country of Origin: Indonesia

Technical Specifications

• Range of product: Telemecanique Inductive proximity sensors XS
• Series name: Application
• Product or component type: Sensor
• Sensor type: Inductive proximity sensor
• Sensor name: XSA
• Device application: Rotation monitoring
• Sensor design: Cylindrical M30
• Size: 81 mm
• Body type: Fixed
• Type of output signal: Discrete
• Wiring technique: 2-wire
• Discrete output function: 1 NC
• Detector flush mounting acceptance: Flush mountable
• Material: Metal
• Electrical connection: Cable
• Input Voltage: 24...210 V DC; 24...240 V AC 50/60 Hz
• Output circuit type: AC/DC
• Switching capacity in mA: 5...200 mA DC, 5...350 mA AC
• IP degree of protection: IP67 conforming to IEC 60529
• Enclosure material: Nickel plated brass
• Detection face: Frontal
• Thread type: M30 x 1.5
• Front material: PPS
• Sensing range: >0.31...0.59 in (>8...15 mm)
• Differential travel: 3...15% of Fr
• Repeat accuracy: <= 3% of Sr
• Cable composition: 2 x 0.34 mm²
• Residual current: 1.5 mA open state
• Status LED: Output state: 1 LED (red)
• Wire insulation material: PVC
• Switching frequency: <= 800 Hz
• Voltage drop: <5.7 V (closed)
• Marking: CE
• Product certifications: CCC, CSA, UL
• Operating Temperature: -25...70 °C
