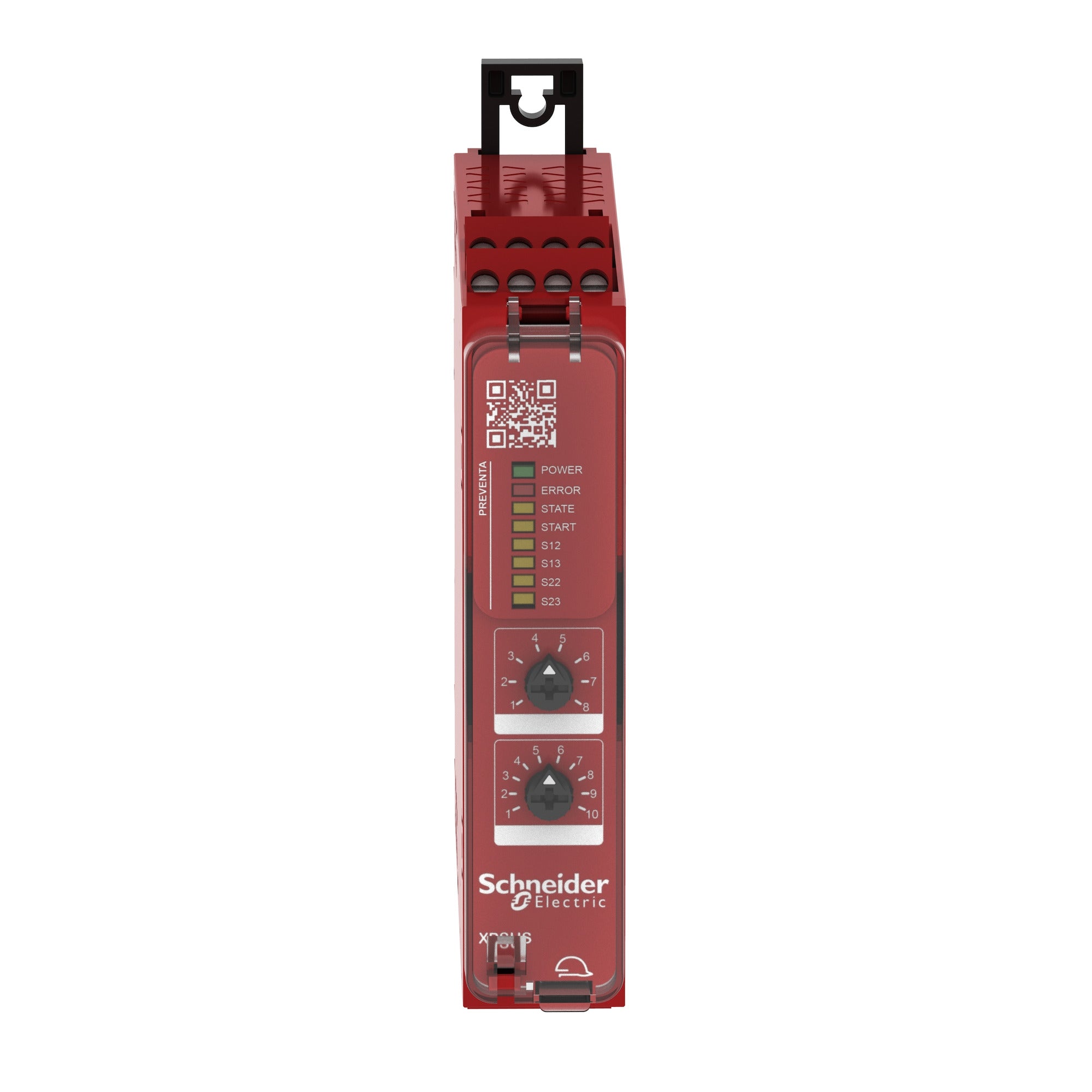

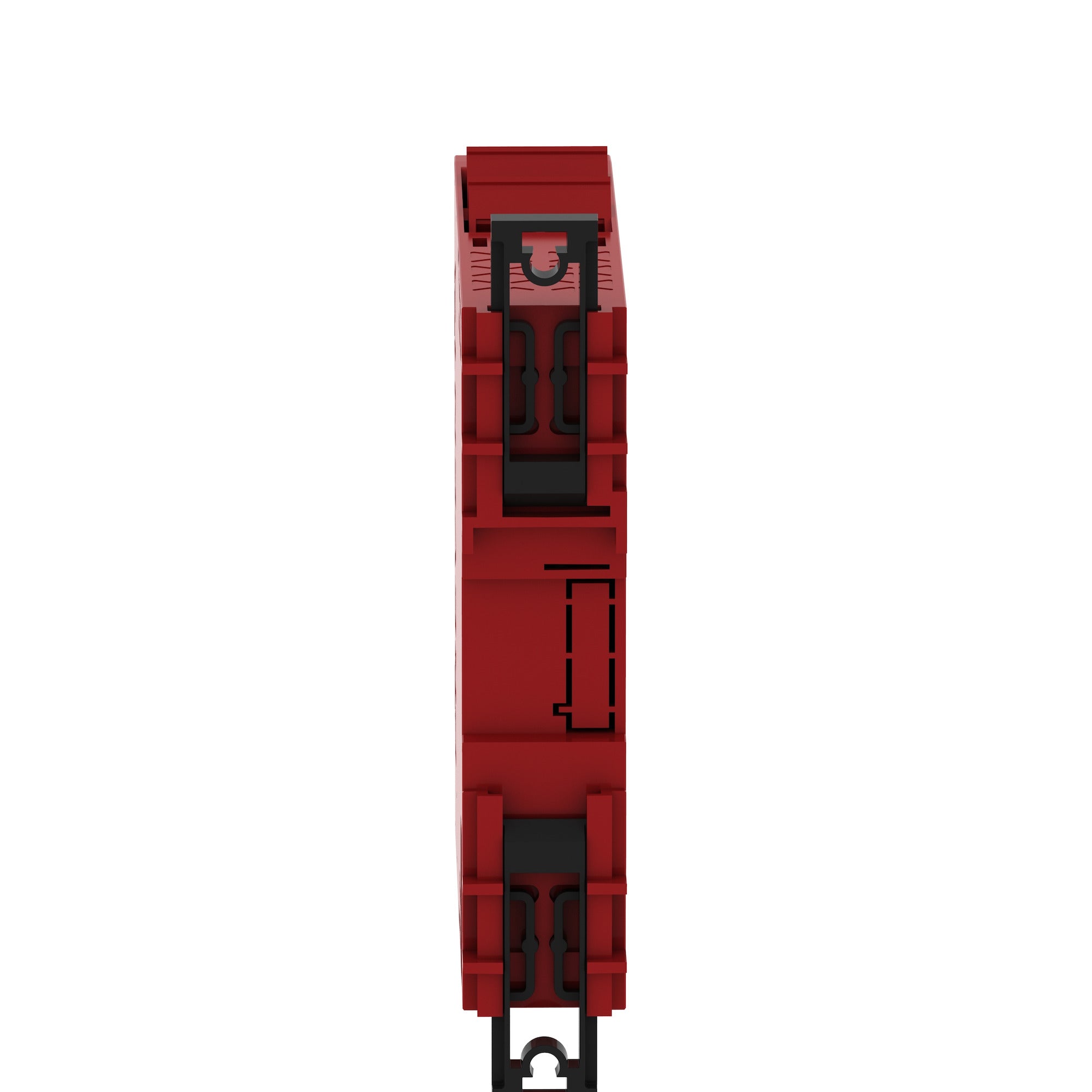

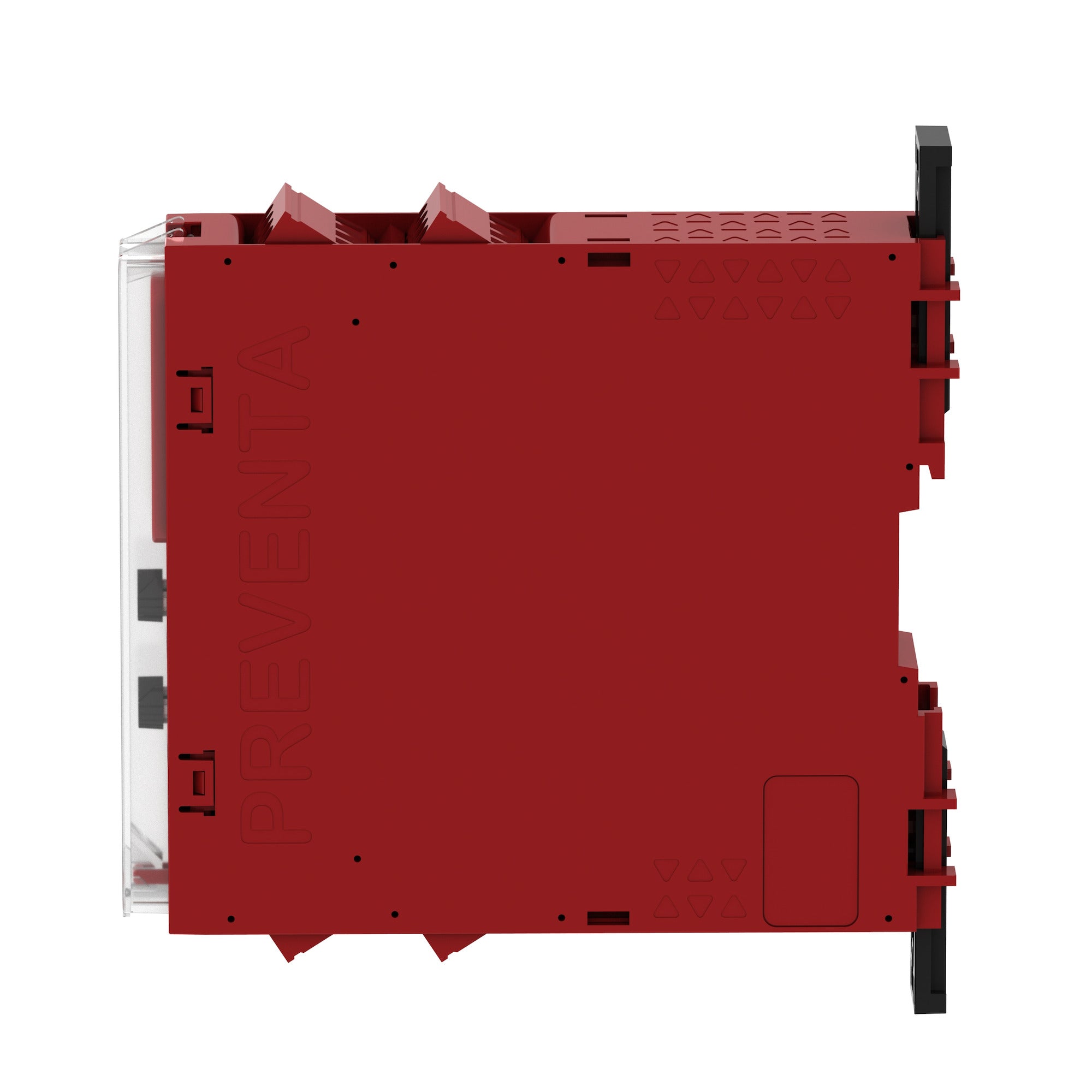

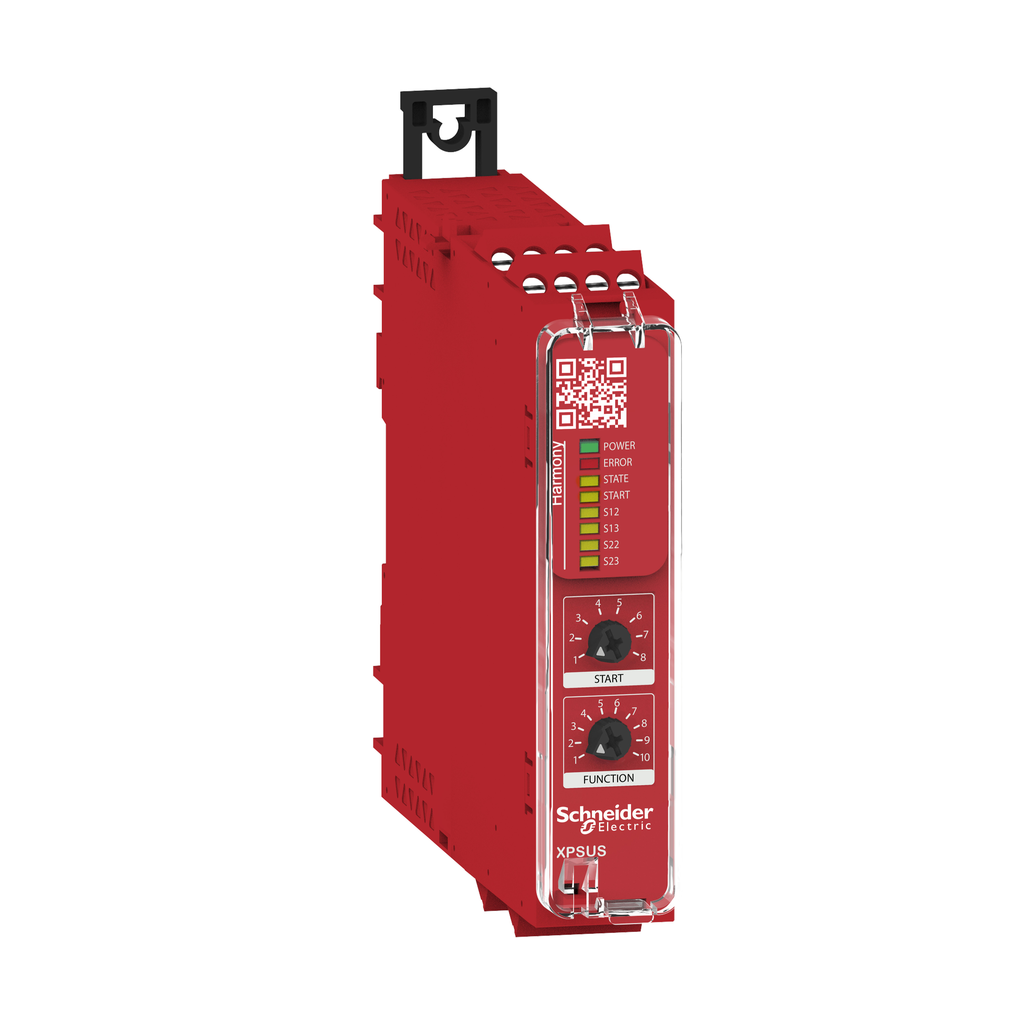

Schneider Electric XPSUS12AP safety module, 24V AC or DC, Cat 4

Product Description

This safety relay by Schneider Electric, model XPSUS12AP, is designed for monitoring safety devices like emergency stops, guard switches, and safety light curtains. It operates at twenty-four volts AC or DC and features a removable screw terminal block for easy installation. This module includes predefined safety functions and allows for the selection of options via rotary selectors.

• Complies with safety standards PLe/Category 4 and SIL 3
• Equipped with two safety inputs and three configurable outputs
• Suitable for industries like Food and Beverage, Material Handling, and Packaging

Product Highlights

This safety relay is integral to protecting machinery and ensuring safe operations in various applications.

Product Information

Standard Information

• Brand: Schneider Electric
• Catalog Number: XPSUS12AP

Technical Specifications

• Width: twenty-two point five millimeters
• Depth: one hundred twenty millimeters
• Height: one hundred millimeters
• Weight: zero point two kilograms
• Safety Level: PLe/Category 4
• Standards Compliance: IEC 60947-5-1, IEC 61508, ISO 13849-1
• Number of Outputs: 3
• Storage Temperature: minus twenty-five to eighty-five degrees Celsius
