Schneider Electric XPSUAK12AP Safety Module Harmony XPSU Cat 4 Features XPSUAF with PNP or NPN Safety Mat 24V AC or DC

Product Description

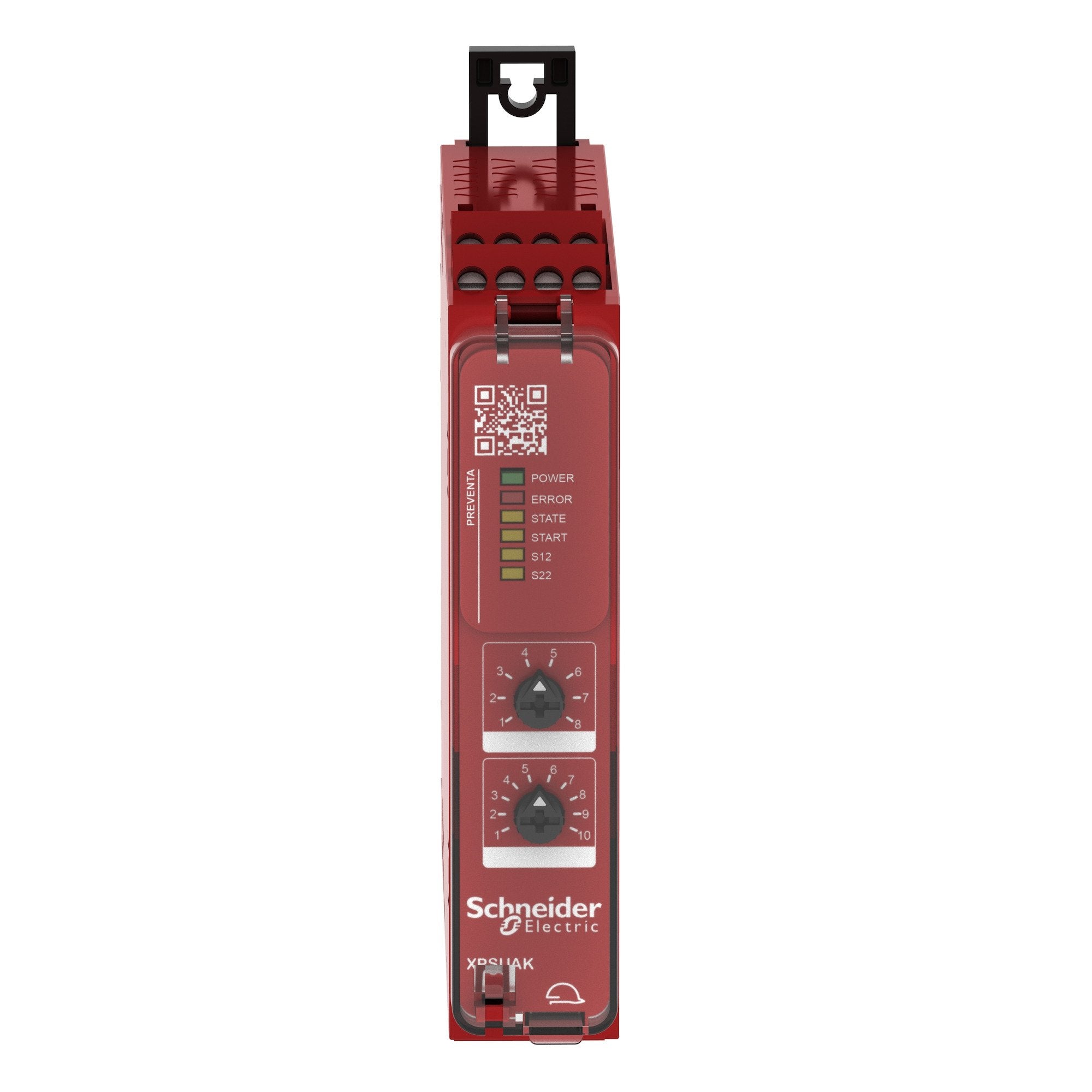

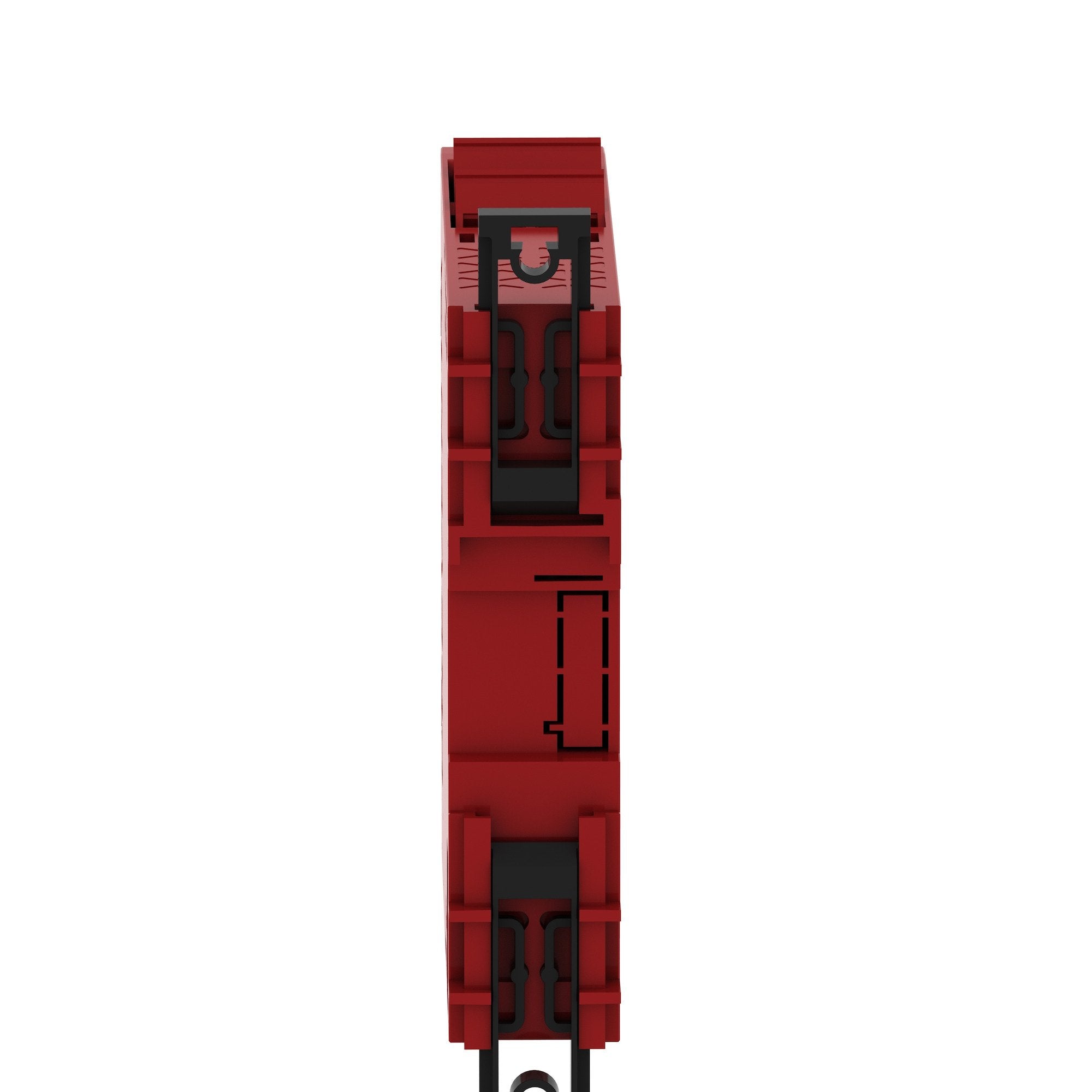

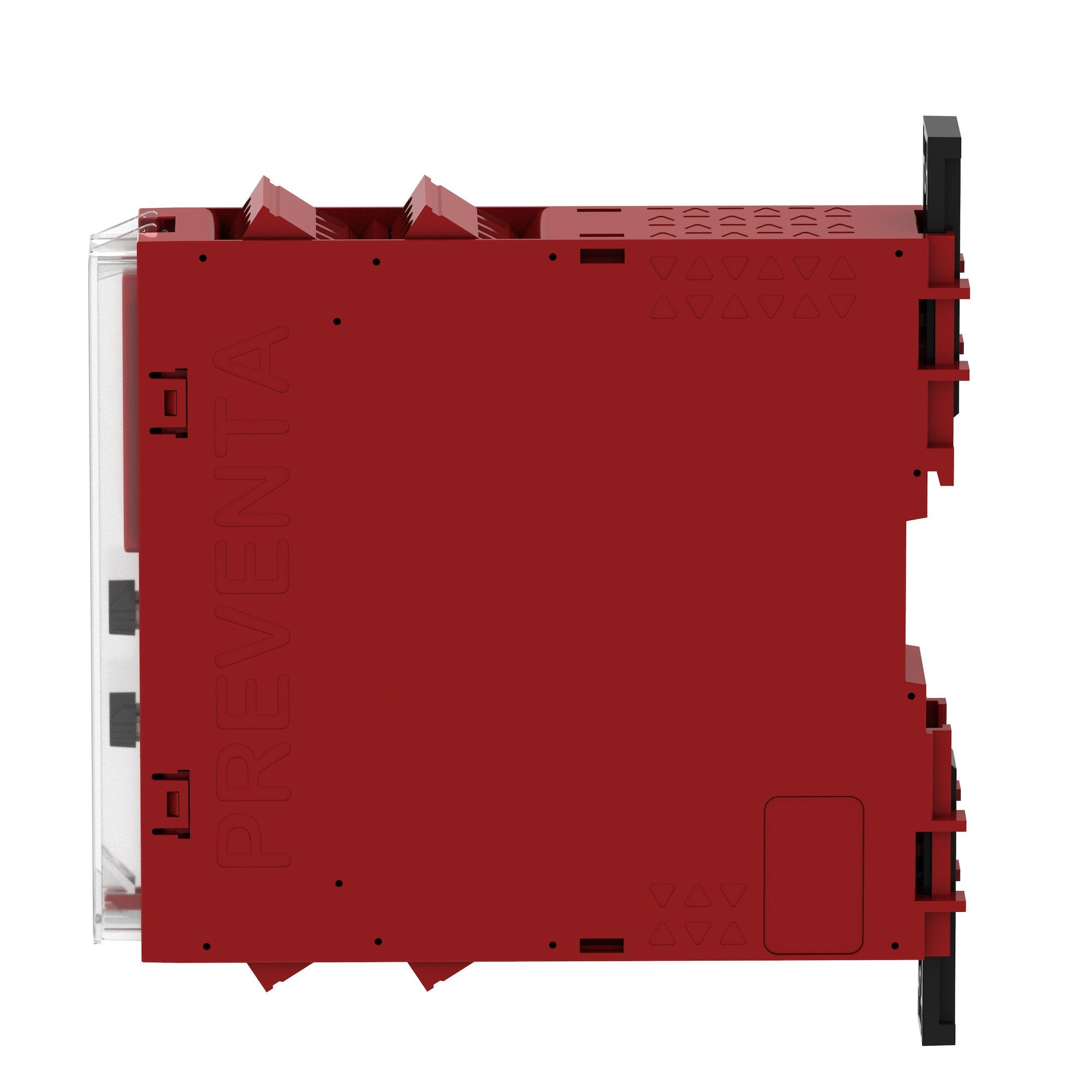

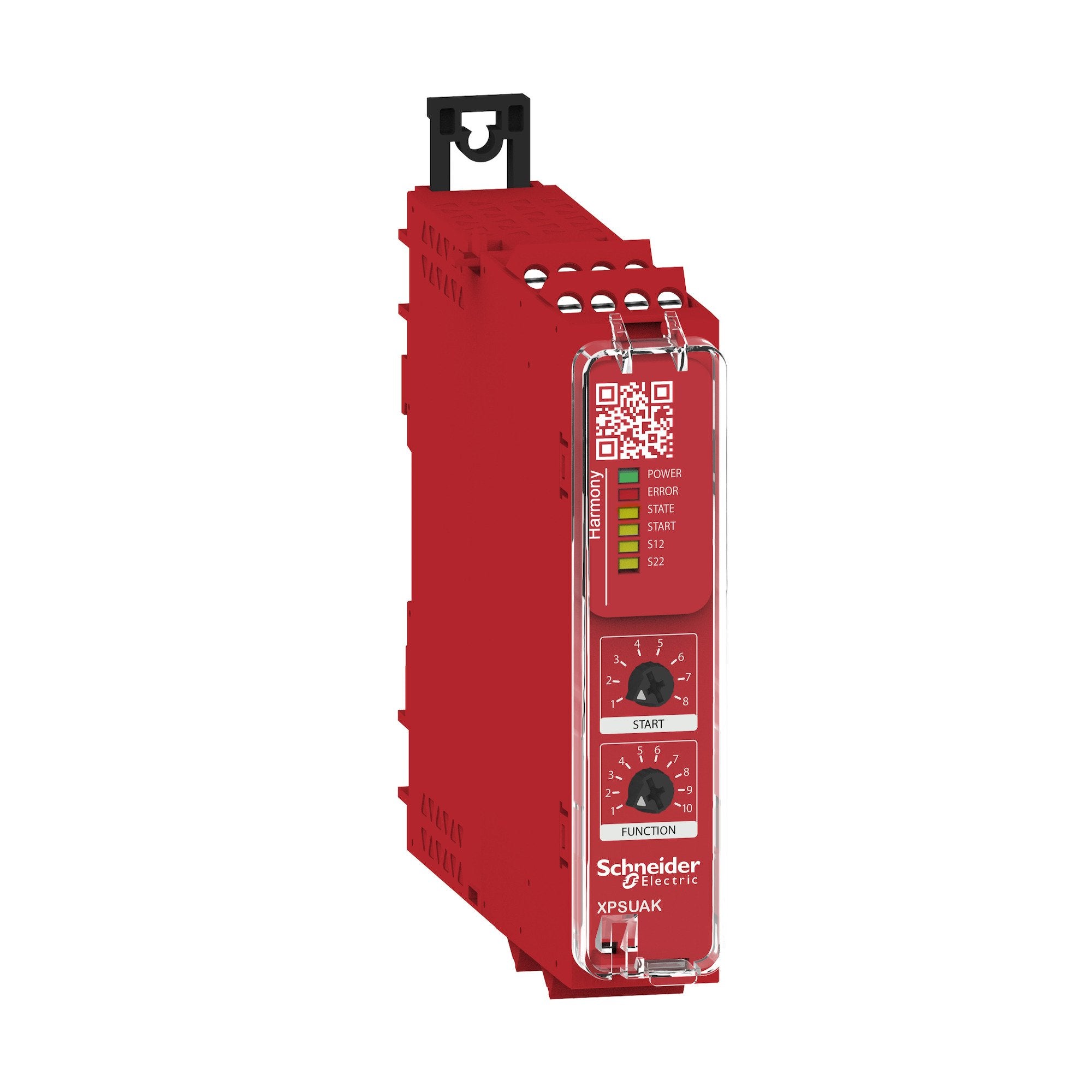

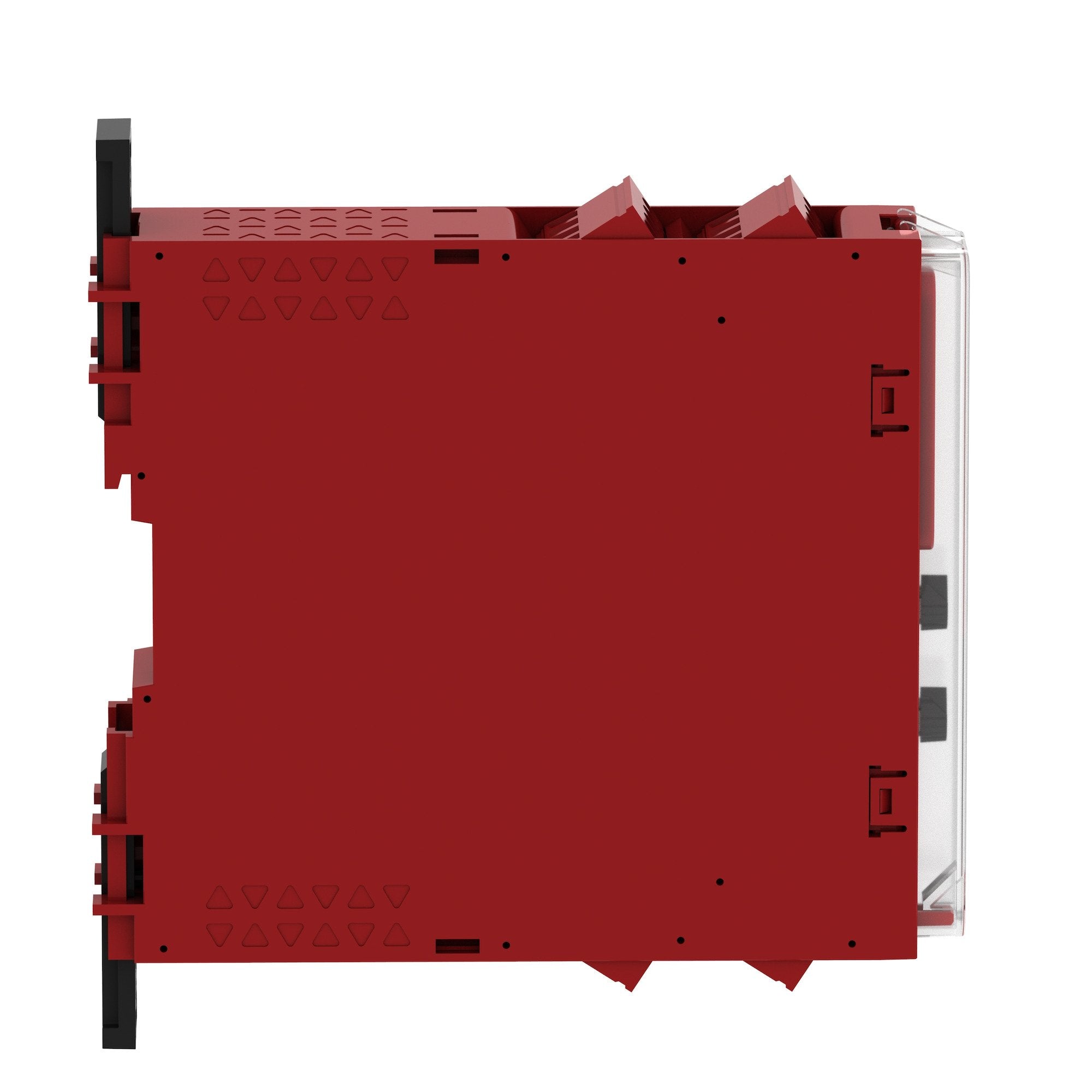

This safety module by Schneider Electric, model XPSUAK12AP, is designed for monitoring various safety devices like emergency stops and safety light curtains. It enables safe operation of machines by connecting to devices such as proximity switches and RFID safety switches.

• Features selectable safety functions via rotary selectors
• Compatible with PNP and NPN sensors
• Mounts easily on a 35mm DIN rail

Product Highlights

This safety relay is intended for applications in food and beverage, material handling, and packaging industries.

Product Information

Standard Information

• Brand: Schneider Electric
• Catalog Number: XPSUAK12AP

Technical Specifications

• Power Supply: 24V AC or DC
• Weight: 0.200 kg
• Dimensions: 22.5 mm Width x 120 mm Depth x 100 mm Height
• Safety Level: PLe/Category 4 conforming to ISO 13849-1
• Inputs: 2 safety inputs
• Outputs: 3 ON/OFF configurable outputs, 2 NO + 1 NC safety outputs, 1 solid state diagnostic output
