Schneider Electric XPSUAK12AC Safety Module Harmony XPSU Cat 4, features XPSUAF with PNP or NPN, safety mat, 24V AC or DC, spring

Product Description

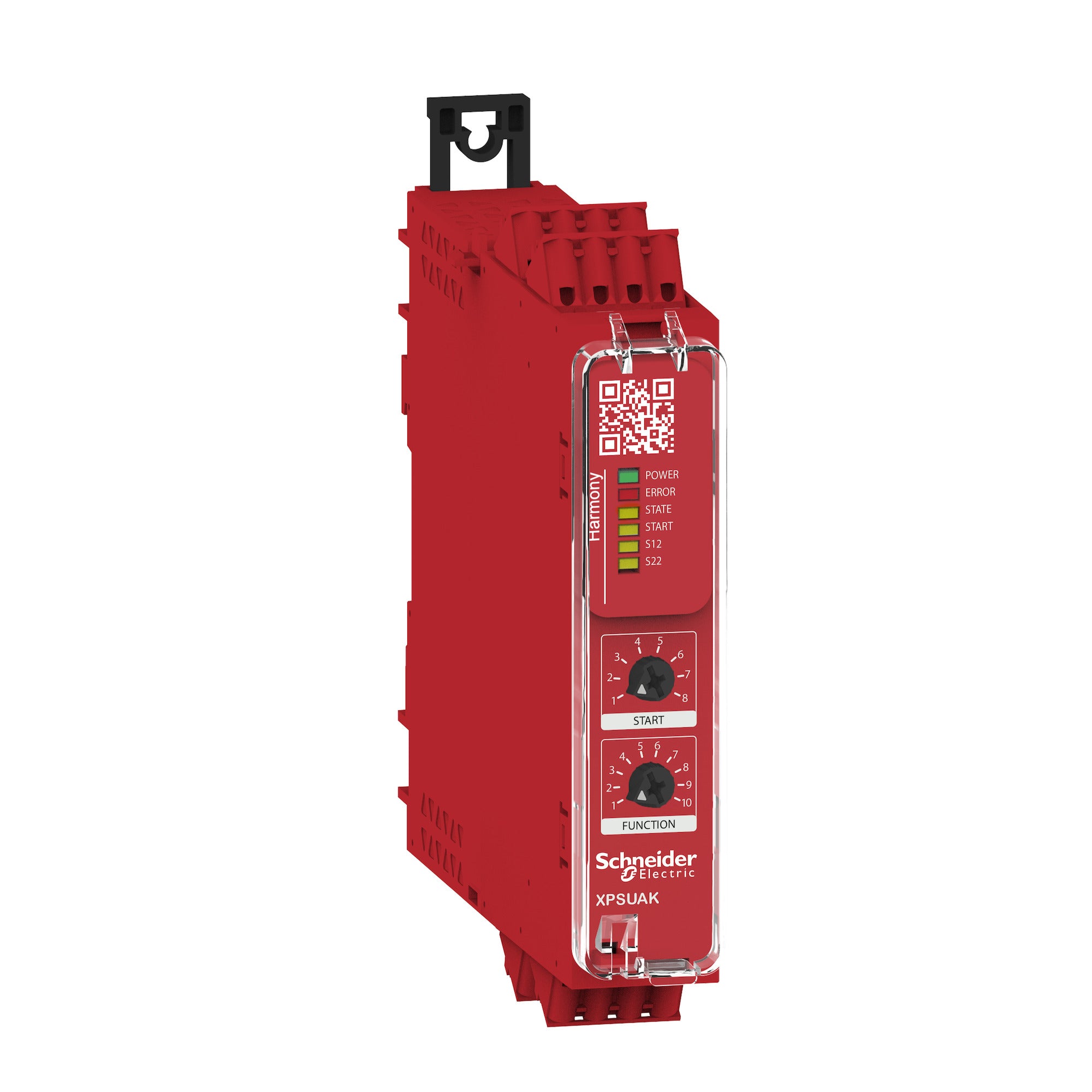

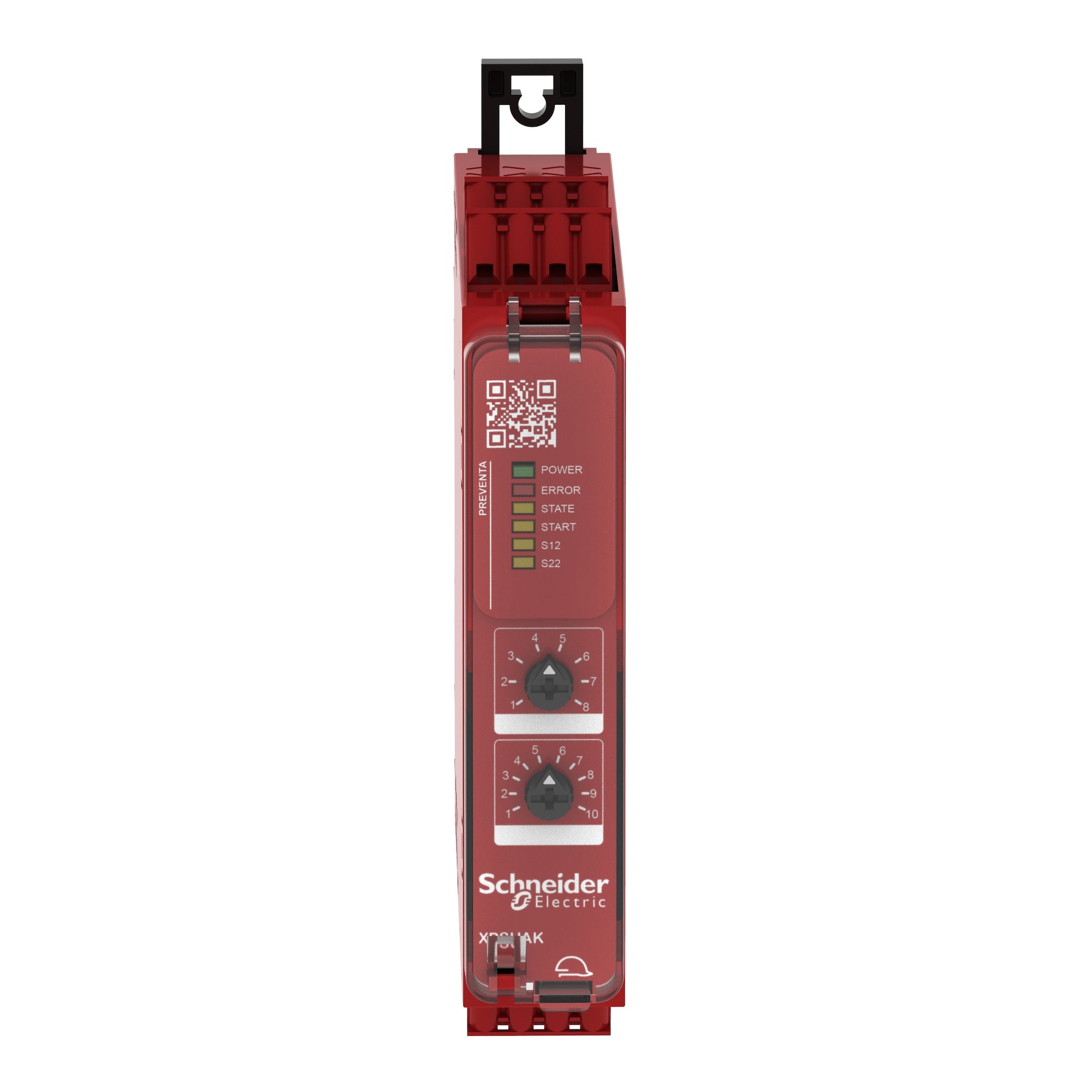

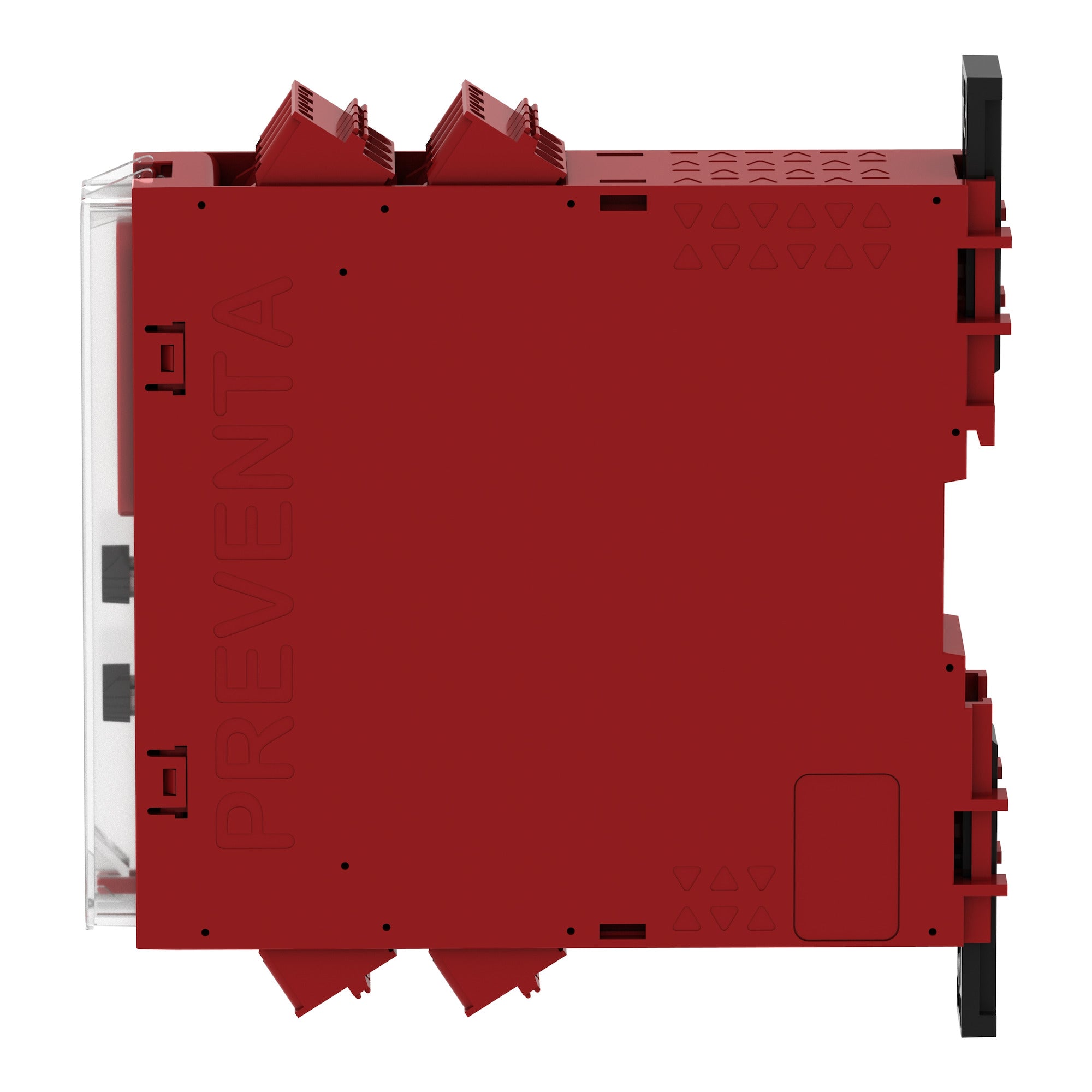

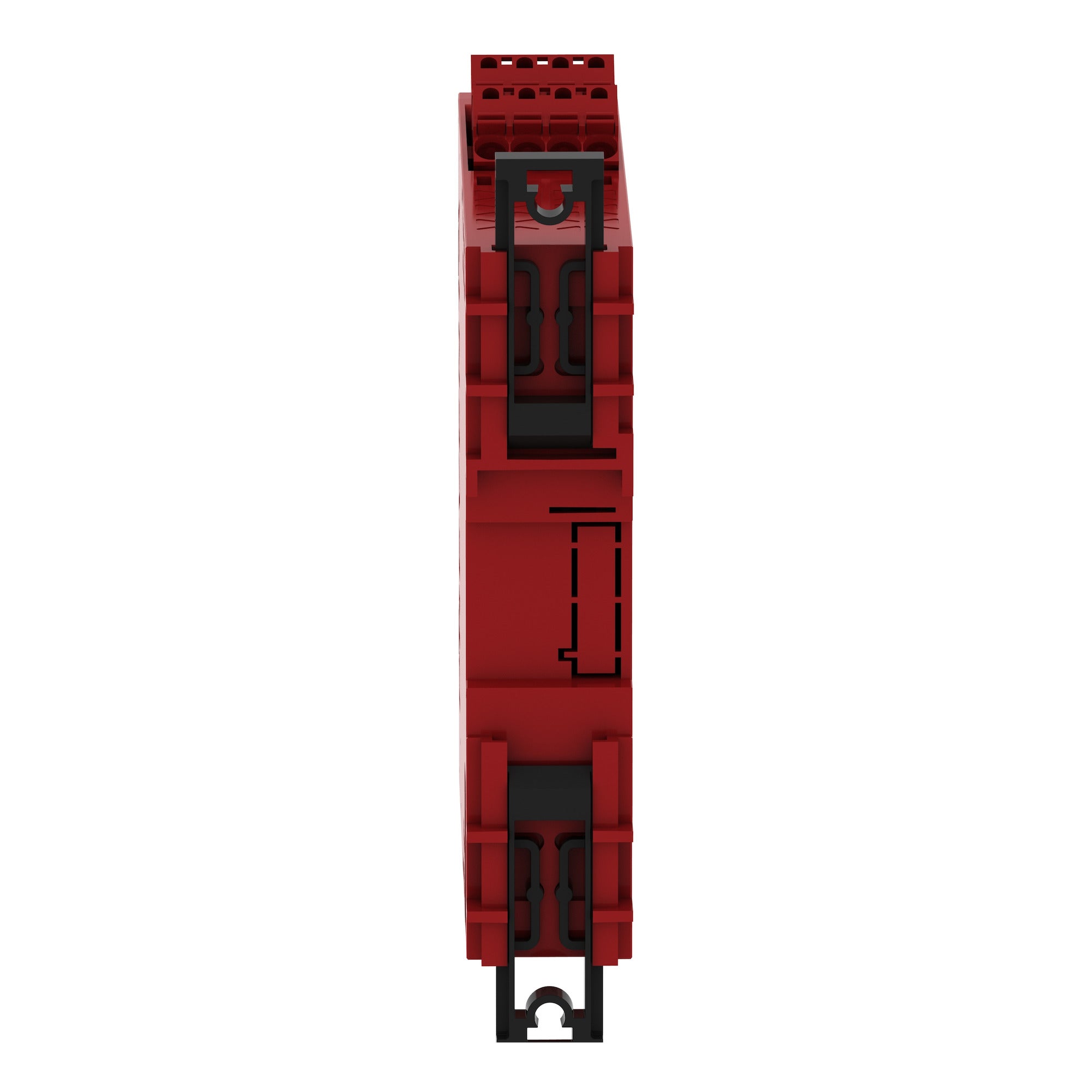

The Schneider Electric XPSUAK12AC is a safety module designed for various safety monitoring applications. It operates at 24V AC and DC and supports PNP and NPN sensors. This unit is effective for monitoring emergency stops, guard switches, proximity switches, and safety light curtains.

• Universal safety relay with pre-defined and selectable functions
• Compliant with ISO and IEC safety standards
• Suitable for use in food and beverage, packaging, and material handling industries

Product Highlights

This safety module is ideal for implementing safety functions in simple to medium complexity machines.

Product Information

Standard Information

• Brand: Schneider Electric
• Part Number: XPSUAK12AC

Technical Specifications

• Weight: 0.200 kg
• Dimensions: 22.5 mm (Width) x 120 mm (Depth) x 100 mm (Height)
• Safety Level: PLe/Category 4
• Input Types: 2 safety inputs
• Outputs: 3 ON/OFF configurable pulsed outputs, 2 NO + 1 NC safety outputs
• Certifications: cULus, TV, EAC, CCC, and KC marking
• DIN Rail Mounting: Yes
• RoHS Compliance: Yes
