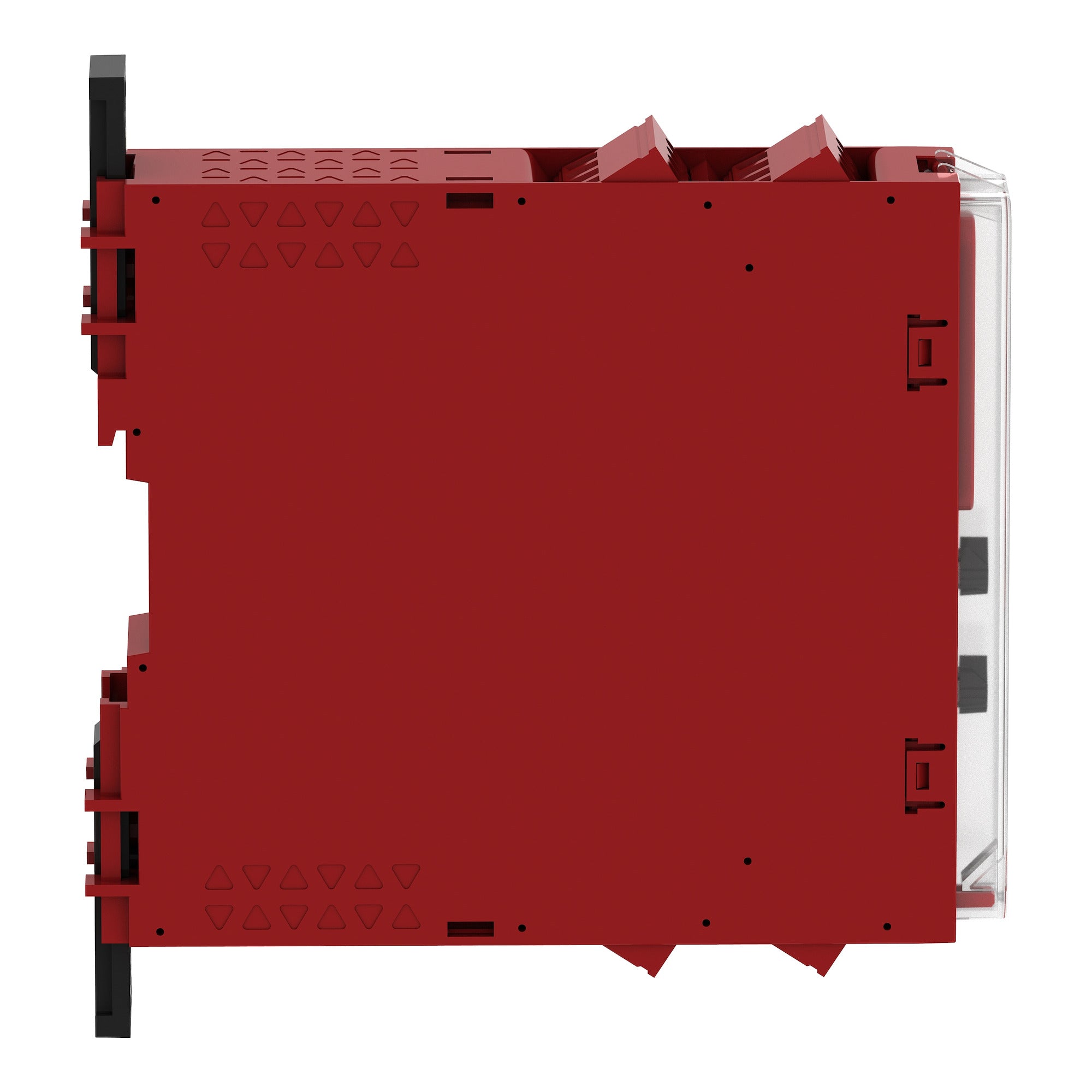

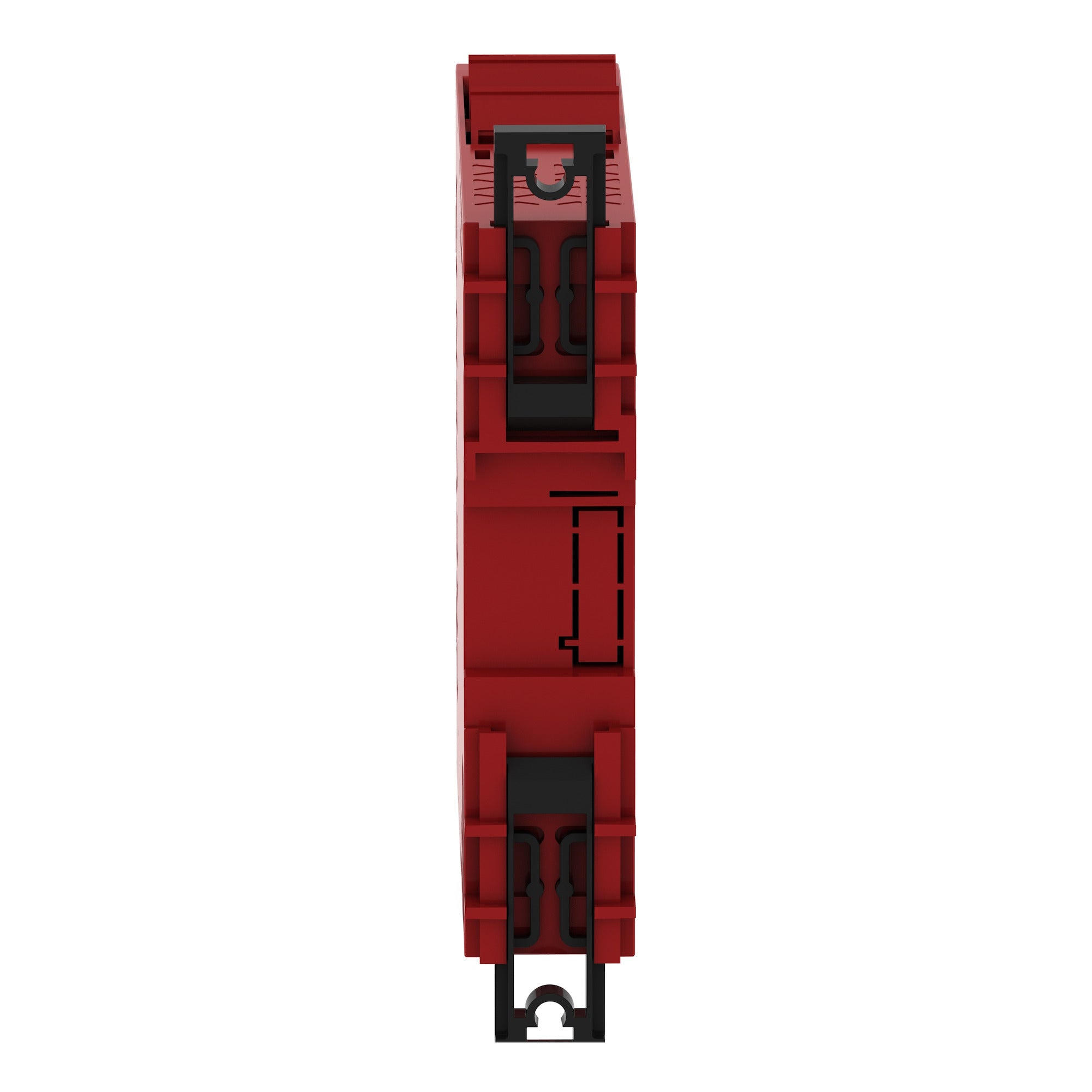

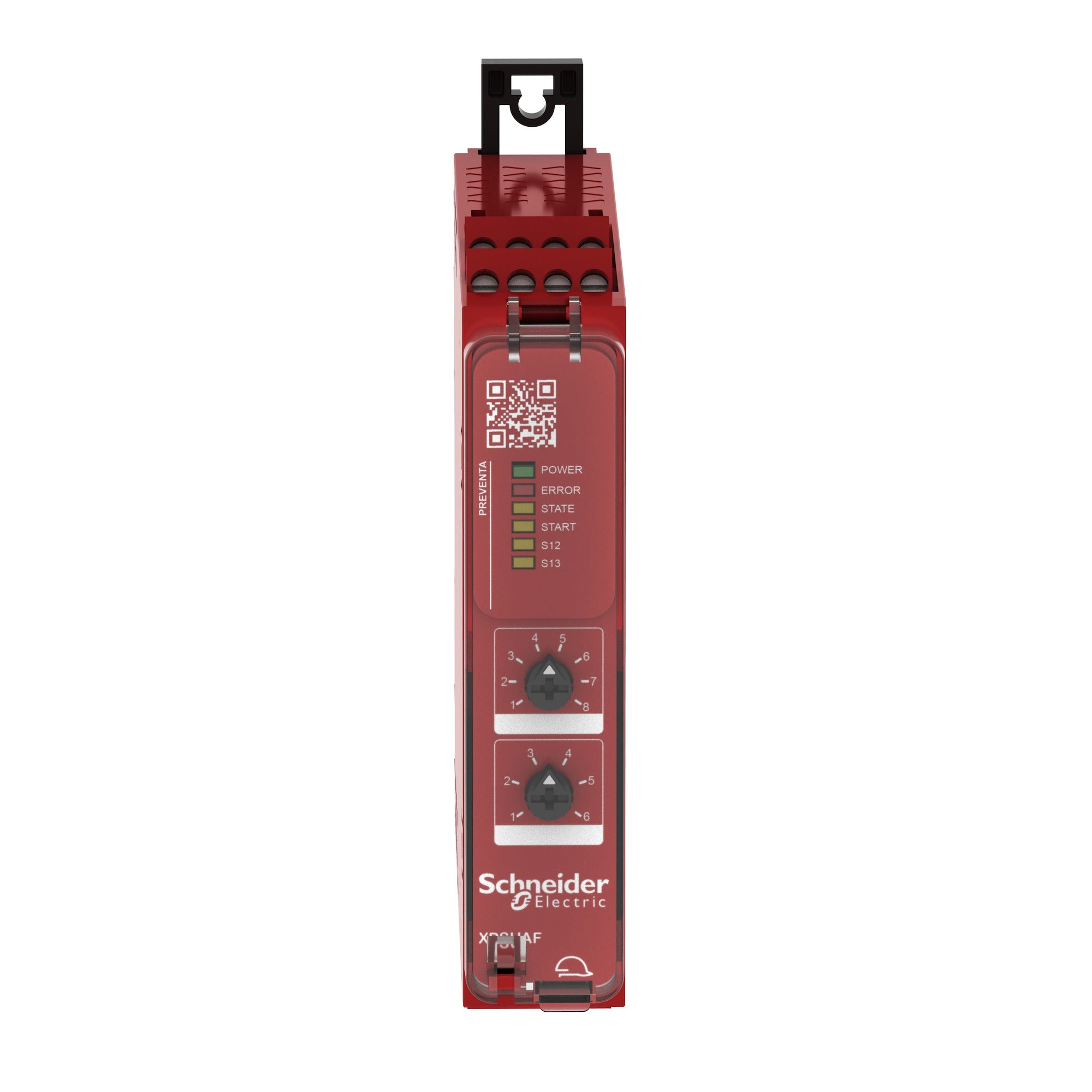

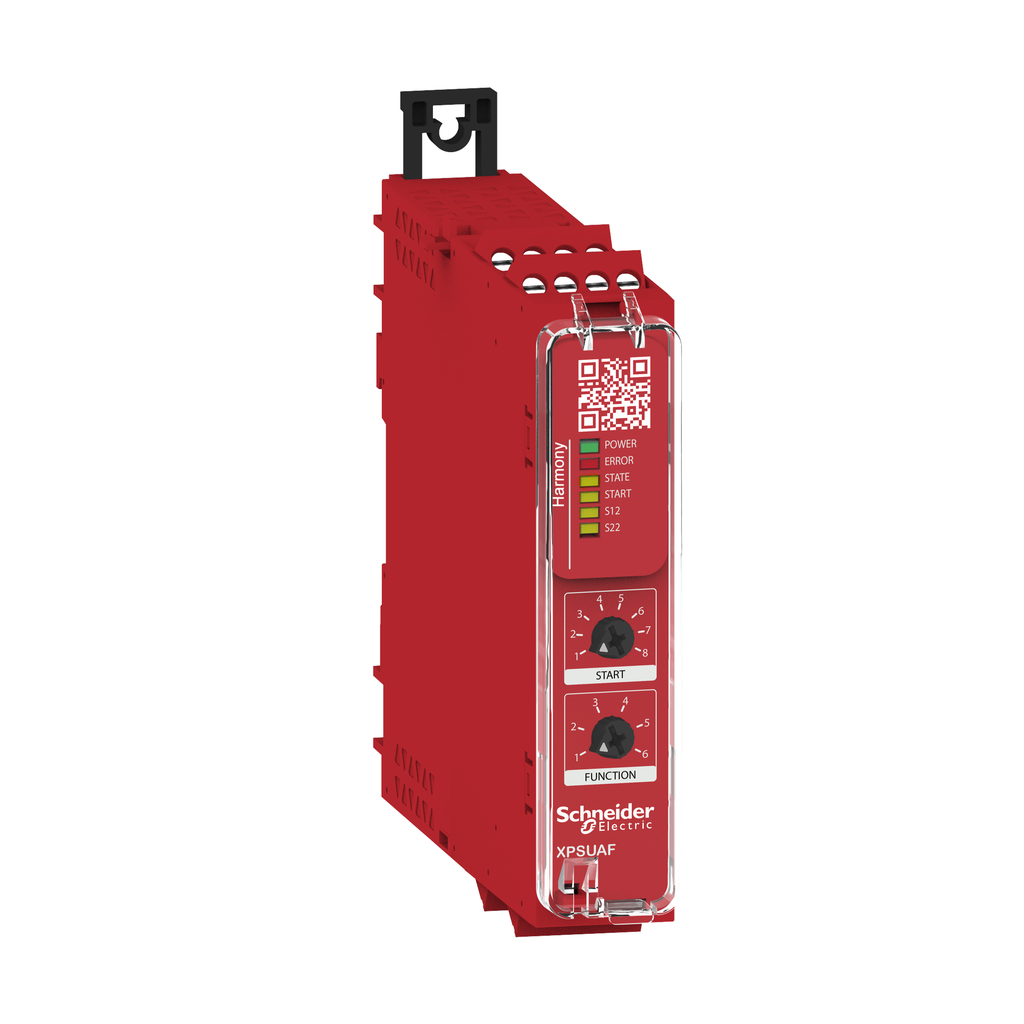

Schneider Electric XPSUAF13AP safety module, H 24V AC/DC

Product Description

The Schneider Electric XPSUAF13AP is a safety module designed for monitoring various types of safety devices, including Emergency stop switches, Guard switches, Magnetic switches, Proximity safety switches, PNP sensors, RFID safety switches, and Safety light curtains. This module operates on 24V AC or DC power supply and features a screw removable terminal block for easy installation.

• Compatible with Modicon logic controllers
• Achieves maximum safety level PLe/Category 4 per ISO 13849-1
• Includes configurable safety features via rotary selectors

Product Highlights

Ideal for applications in Food and Beverage processing, Hoisting, Material Handling, Material Working, and Packaging. The XPSUAF13AP has been designed for simple to medium complexity machines.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider
• Catalog Number: XPSUAF13AP

Technical Specifications

• Power Supply: 24V AC/DC
• Width: 22.5 mm
• Depth: 120 mm
• Height: 100 mm
• Weight: 0.200 kg
• Output Configuration: 3 NO safety outputs
• Safety Certifications: cULus, TV, EAC, CCC
• Standards Compliance: IEC 60947-5-1, IEC 61508-1/2/3, ISO 13849-1, IEC 62061
