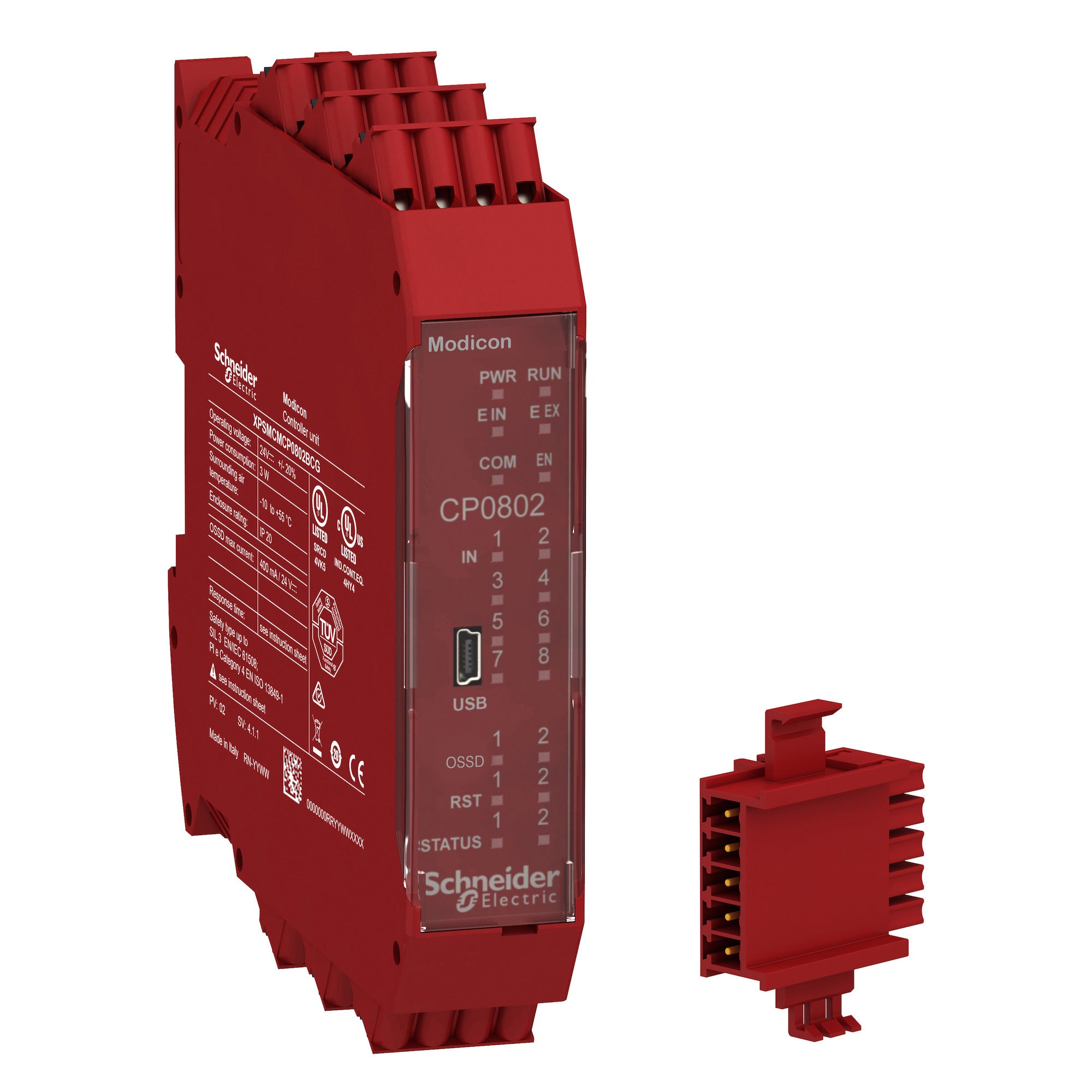

Schneider Electric XPSMCMCP0802BCG safety controller, Modicon MCM, combined with backplane expansion connector, spring

Product Description

The Schneider Electric XPSMCMCP0802BCG is a safety controller designed for reliable machine safety. This controller operates with a supply voltage of twenty-four volts direct current. It features eight safe digital inputs, two start/restart interlock inputs, and accommodates various output configurations. This product is ideal for machines with limited safety functions that require configuration flexibility.

• Expandable up to 128 inputs and 16 outputs
• Compatible with fourteen expansion modules
• Includes a Mini USB 2.0 connector for software configuration

Product Highlights

The XPSMCMCP0802BCG is perfect for monitoring multiple safety functions, such as emergency stops and guard monitoring. Its LED indicators provide status updates for power supply, communication, and input conditions.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: Italy

Technical Specifications

• Catalog Number: XPSMCMCP0802BCG
• IP Rating: IP20
• Power Supply Voltage: 24V DC
• Power Dissipation: 3W
• Dimensions: 22.5mm (Depth), 99mm (Height), 114.5mm (Width)
• Weight: 0.26kg
• LED Indicators: Status for power supply, run, errors, and inputs
