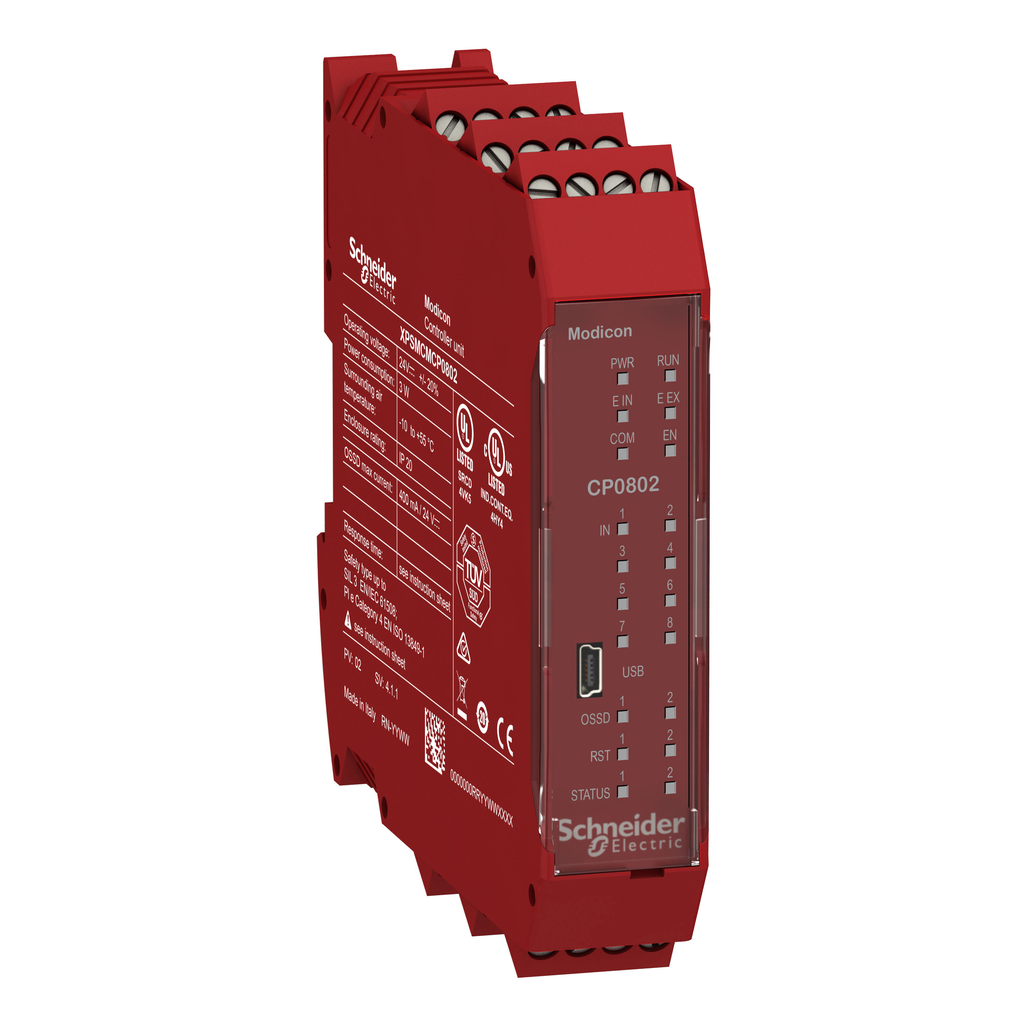

Schneider Electric XPSMCMCP0802 SQD XPSMCMCP0802 controller, Modico 24VDC (1 each) Replacement MPN

Product Description

This Schneider Electric XPSMCMCP0802 SQD controller is a safety controller CPU supplied with 24V DC. It features eight safe digital inputs, two start/restart interlock inputs, two output OSSD pairs, four test outputs, and two status outputs. The controller has captive screw clamp terminals for secure connections.

The unit includes a Mini USB 2.0 connector to configure using EcoStruxure Machine Expert - HVAC software. It operates well in systems requiring flexibility while providing multiple safety function monitoring. It can be deployed as a standalone unit or expanded with up to fourteen additional modules.

• Expandable up to 128 inputs and 32 diagnostic status outputs
• IP20 rated with a weight of 0.25 kg
• Ideal for safety functions like emergency stop and guard monitoring

Product Highlights

This controller is suitable for various industrial applications requiring safety automation. Its design adheres to industrial safety standards including Category 4, PL e according to EN/ISO 13849-1 and SILCL 3 according to IEC/EN 61508.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Power Supply: 24V DC
• Maximum Power Dissipation: 3W
• Weight: 0.25 kg
• Dimensions: Depth 22.5 mm, Height 99 mm, Width 114.5 mm
• Number of Inputs: 8
• Number of Outputs: 2 OSSD pairs
• Certification: CULus, RCM, TV
• Operating Temperature: -10 to 55 degrees Celsius
