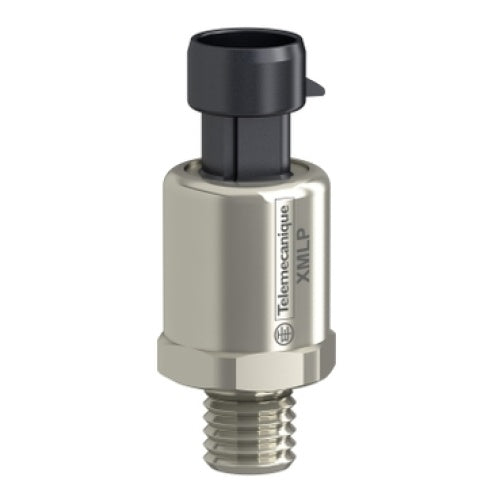

Schneider Electric XMLP600PP130 Electronic Pressure Sensor 0.00 - 4136.85 kPa

Product Description

The Schneider Electric XMLP600PP130 is an electronic pressure sensor designed for industrial fluid applications. It provides an analog output signal ranging from 0.5 to 4.5 V and has a measurement range of 0.00 to 4136.85 kPa.

• IP67 rated for protection against dust and water.
• Operates with a 5 VDC SELV supply voltage.
• Ideal for measuring pressure in applications involving air, fresh water, and hydraulic oil.

Product Highlights

This sensor is perfect for situations requiring precise pressure measurements in various fluid types.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: XMLP600PP130

Technical Specifications

• Manufacturer: Telemecanique
• Line: XMLP
• IP Protection: IP67
• Output Signal Type: Analog
• Medium: Hydraulic Oil, Air, Fresh Water
• Output Signal Range: 0.5 - 4.5 V
• Measurement Response Time: <= 2 ms
• Application: Transmitters for industrial fluids
• Temperature Range: -30 - 85 °C
• Supply Voltage: 5 VDC SELV
• Connection Type: Male connector Packard Metripack 150 3 pins
• Span: 0.00 - 4136.85 kPa
• Component: Electronic pressure sensor
